Electronic Magnetic Latching Relay 12V 24V 60A WM832 Quality Choice

Ningbo Wante Import & Export Co., Ltd.
Electronic Magnetic Latching Relay 12V 24V 60A WM832 Quality Choice thumbnail-1
Electronic Magnetic Latching Relay 12V 24V 60A WM832 Quality Choice photo-1
US$ 5 - 8 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SM
Model Number:
WM832
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name SM
Model Number WM832
Theory Electromagnetic Relay
Usage General Purpose
Size Miniature
Protect Feature Sealed
Contact Load High Power
Product Description

P1 Features

1. 60A switching capability;

2. Strong resistance ability to shock & vibration;

3. Heavy load up 15000VA;

4. 4kV dielectric strength(between coil and contacts);

5. Environmental friendly product (RoHS compliant).





P2 Ordering Information

WM832

- 12

-A

-S

-R

-A

(XXX)



1

 2

 3

4

5

6

7



1 Part number:WM832

2 Coil rated Voltage(VDC): 6,9,12,24,48

3 Contact form: A: 1A;

4 Enclosure:S: Sealed type;Nil: Dust cover

5 Polarity:R: Negative polarity;Nil: Positive polarity

6 Coil connection method:

A: Type A PCB load (1 coil latching);B: Type B PCB load(1 coil latching);C: Type C PCB load(2 coil latching)

7 Customer special code



P3 Contact Data

Contact Form

1A(SPSTNO)

Contact Material

Silver Alloy

Contact Rating (resistive)

1A

60A /250VAC, 50A/250VAC, 40A/250VAC

Max. Switching Voltage

300VAC

Max. Switching Current

60A

Max. Switching Power

15000VA

Contact Resistance or Voltage drop

≤30mΩ   (at 1A 24VDC)

≤100mV   (40A)











P4 Coil Parameter



Coil Rated voltage

(VDC)

Coil resistance

Ω±10%

Pickup voltage

VDC(max)

Pulse magnitude

(ms)

Coil power

Operate Time

Release Time

6V

1 coil
latching

36

4.2V

50

1W

≤20 ms

≤20 ms

9V

81

6.3V

50

12V

144

8.4V

50

24V

576

16.8V

50

48V

2304

33.6V

50

6V

2 coil
latching

2×18

4.2V

50

2×2W

≤20 ms

≤20 ms

9V

2×40.5

6.3V

50

12V

2×72

8.4V

50

24V

2×288

16.8V

50

48V

2×1152

33.6V

50



P5 Operation condition



Insulation Resistance

1000MΩ min(at 500VDC)

Dielectric Strength

Between Contacts

50Hz  1500VAC / 1 minute

Between Coil and Contacts

50Hz  4000VAC / 1 minute

Creepage distance

8mm

Shock resistance

Functional 100m/s2;  Survival:1000 m/s2  11ms

Vibration resistance

10~55Hz  double amplitude  1.5mm

Terminals Type

Terminal types as inserting(Plug insert)

Solderability

235℃±2℃   3±0.5s

Ambient Temperature

-40℃ ~ +85℃

Relative Humidity

85% (at 40℃)







P6  Magnetic Latching Relay Photo

Electronic Magnetic Latching Relay 12V 24V 60A WM832

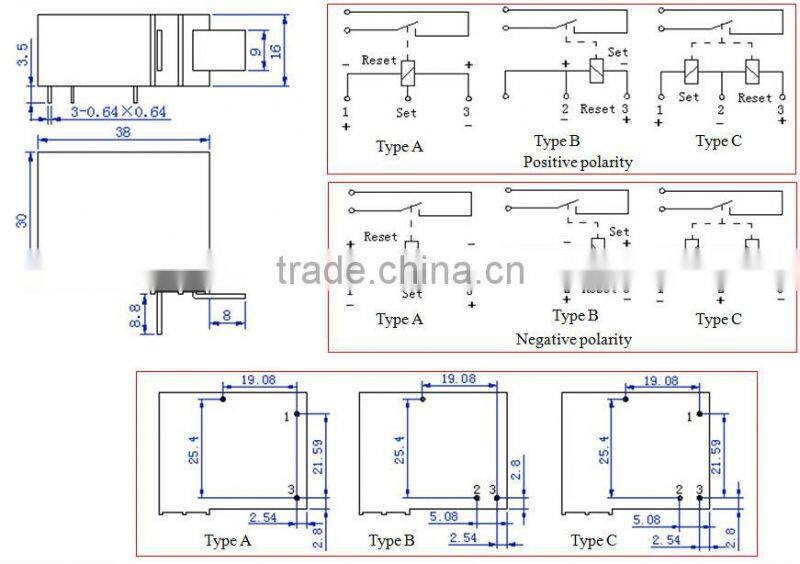

P7 Layout  (Bottom views, Unit: mm)

Dimensions / Wiring diagram (Bottom views)



Electronic Magnetic Latching Relay 12V 24V 60A WM832





Packaging & Shipping

P8 Packing

              1 pcs / inner box, 200 pcs / carton

P9  Shipping

         Relay can be shipping by air, by sea and by Fedex, TNT, DHL,EMS, UPS etc.

Electronic Magnetic Latching Relay 12V 24V 60A WM832

Company Information

 P10  Our Factory

Electronic Magnetic Latching Relay 12V 24V 60A WM832

 P11   Certificates

                       Our factory is ISO/TS16949 approved.

                       Has more than 10 patents.

Electronic Magnetic Latching Relay 12V 24V 60A WM832

 P12  Equipments

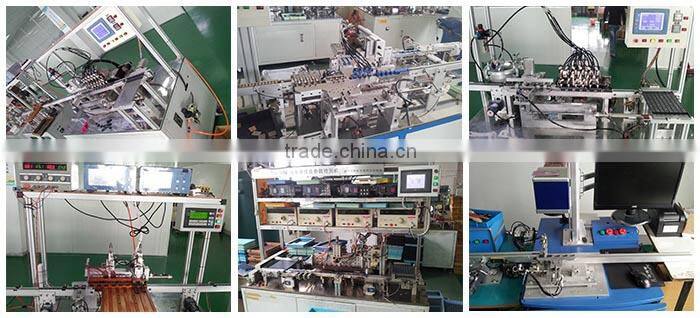

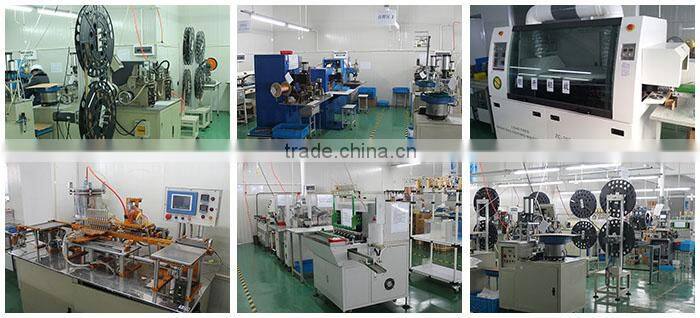

             Automatic and semi-automatic production lines.

Electronic Magnetic Latching Relay 12V 24V 60A WM832

Electronic Magnetic Latching Relay 12V 24V 60A WM832

Our Services

Punctual delivery time:

a.We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
b. Shipping notice and photos sent to you as soon as your order is shipped.

After sales service:
a. We pay high attention to your feed back after receive the goods.
b. We provide 12 months warranty after goods arrive.
c. We positively revert your complain within 48hours.



Professional sales:
a. We value every inquiry sent to us, ensure quick competitive offer.
b. We cooperate with customer to bid tenders. Provide all necessary documents.
c. We are a sales team, with all technical support from engineer team.

d. We offer OEM/ODM service.
