Help CenterAutomotive Heavy Relays Power Relay 12V 24V 80A WM640
Related Products
-
Automotive Relays Heavy Relay 12V 24V 100A 4 Pin 5 Pin WM648 Quality ChoiceUS$ 3 - 4.5MOQ: 400 Pieces -
Automotive Relays Miniature Relay 4 Pin 5pin 12V 35A 24V WM650US$ 0.5 - 1MOQ: 500 Pieces
-
Automotive Relays Mini PCB Relay 6 Pin 7pin12V 40A WM656US$ 0.5 - 0.8MOQ: 500 Pieces
-
Automotive Relays Miniature Relay 12V 20A WM660US$ 0.5 - 1MOQ: 500 Pieces
-
Automotive Relays Mini Relay12V 30A 24V 4 Pin WM714US$ 0.5 - 1.5MOQ: 500 Pieces
P1 Features
1. Miniature;
2. Contact load capacity up to 80A;
3. Terminal types as inserting/PCB;
4. Suitable for automobile;
5. Sealed type available (sealed only for without bracket version).
P2 Ordering Information
WM640 |
- 12 |
- A |
- B |
-R |
-P |
-S |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
|
1 Part number:WM640 2 Coil rated Voltage(VDC):6: 6V;12: 12V;24: 24V 3 Contact Form:A: 1A;B: 1B;C: 1C 4 Cover:B: Insulation Bracket;M: Metal Bracket;Nil: No Bracket 5 Coil transient suppression:D: with diode;R: with resistance;Nil: standard 6 Terminals:P: PCB type;Nil: plug in type 7 Enclosure:S: Sealed (except insulation bracket version);Nil: unsealed | ||||||
P3 Contact Data
Contact Form |
1A(SPSTNO),1B(SPSTNC),1C(SPDT(B-M)) |
||
Contact Material |
Ag Alloy |
||
Contact Rating (resistive) |
1A |
1B |
1C |
80A/14VDC |
60A/14VDC |
NO:80A/14VDC NC:60A/14VDC |
|
Max. Switching Voltage |
75VDC |
||
Max. Switching Current |
80A |
||
Max. Switching Power |
1120W |
||
Contact Resistance or Voltage drop |
≤100mΩ |
||
Electrical Life |
1×105cycles |
||
Mechanical Life |
1×107 cycles |
||
P4 Operation condition
Insulation Resistance |
100MΩ Min.(at 500VDC) |
|
Dielectric Strength |
Between Contacts |
50Hz 500VAC / 1 minute |
Between Coil and Contacts |
50Hz 750VAC / 1 minute |
|
Terminals strength |
100N 50N( for PCB type) |
|
Ambient Temperature |
-40℃ ~ +85℃ |
|
| Relative Humidity | 85% (at 40℃) | |
P5 Terminal Layout (Bottom views)
|
P6 Wiring diagram (Bottom views)
|

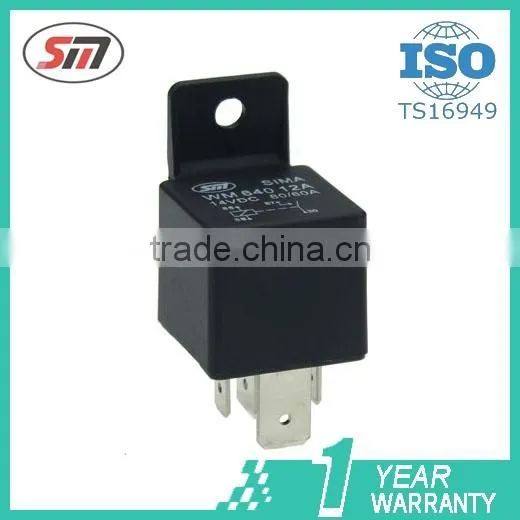

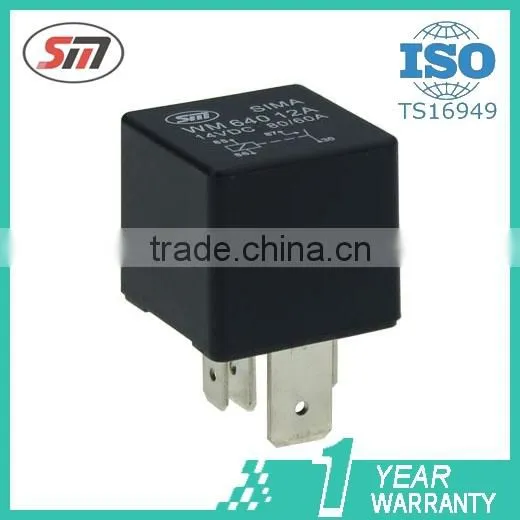

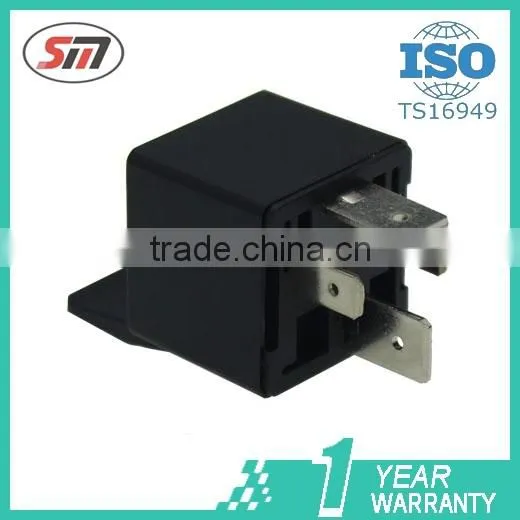

P7 Relay Photo
| Insulation Bracket | No Bracket | plug in type |
|
|
|
P8 Packing
20 pcs / inner box, 20 inner box / carton, 400 pcs / carton
P9 Shipping
Relay can be shipping by air, by sea and by Fedex, TNT, DHL,EMS, UPS etc.
P10 Our Factory
P11 Certificates
Our factory is ISO/TS16949 approved.
Has more than 10 patents.
P12 Equipments
Automatic and semi-automatic production lines.
Punctual delivery time:
a.We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
b. Shipping notice and photos sent to you as soon as your order is shipped.
After sales service:
a. We pay high attention to your feed back after receive the goods.
b. We provide 12 months warranty after goods arrive.
c. We positively revert your complain within 48hours.
Professional sales:
a. We value every inquiry sent to us, ensure quick competitive offer.
b. We cooperate with customer to bid tenders. Provide all necessary documents.
c. We are a sales team, with all technical support from engineer team.
d. We offer OEM/ODM service.
e. Trial orders are available.
f. Sample can be supplied in 7days.
