P1 Features
1.Miniature.
2.Contact load capacity up to 100A.
3.Terminal types as inserting.
4.Suitable for automobile.
P2 Ordering Information
WM648 |
- 12 |
- A |
- R |
|
|
1 |
2 |
3 |
4 |
|
|
|
1 Part numbe:WM648 2 Coil rated Voltage(VDC):6: 6V;12: 12V;24: 24V 3 Contact Form: A: 1A;B: 1B;C: 1C 4 Coil transient suppression:D: with diode; R: with resistance; Nil: standard | |||||
P3 Contact Data
Contact Form |
1A(SPSTNO),1B(SPSTNC),1C(SPDT(B-M)) |
||
Contact Material |
Ag Alloy |
||
|
Contact Rating (resistive)
|
1A |
1B |
1C |
100A/14VDC |
80A/14VDC |
NO: 100A/14VDC, NC:80A/14VDC |
|
Max. Switching Voltage |
75VDC |
||
Max. Switching Current |
100A |
||
Max. Switching Power |
1400W |
||
Contact Resistance or Voltage drop |
≤100mΩ |
||
Electrical Life |
1×105 |
||
Mechanical Life |
1×107 |
||
P4 Operation condition
Insulation Resistance |
100MΩ Min.(at 500VDC) |
|
Dielectric Strength |
Between Contacts |
50Hz 500VAC / 1 minute |
Between Coil and Contacts |
50Hz 750VAC / 1 minute |
|
Terminals strength |
100N 50N( for PCB type) |
|
Ambient Temperature |
-40℃ ~ +85℃ |
|
| Relative Humidity | 85% (at 40℃) | |

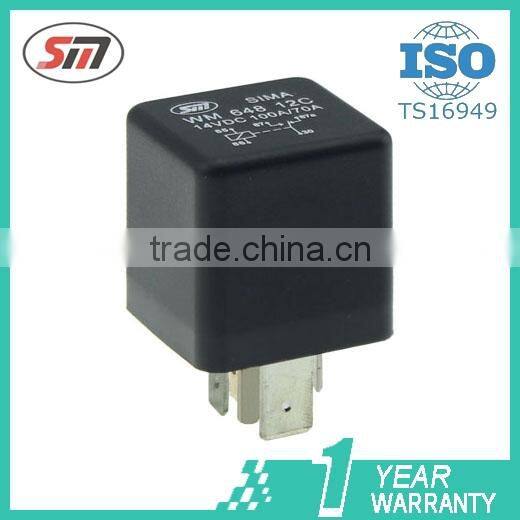

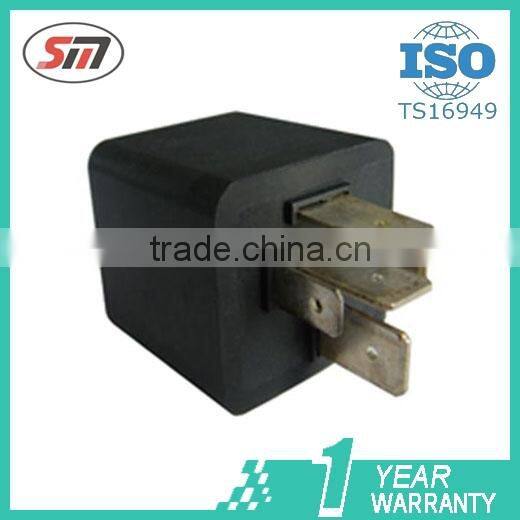

P5 Relay Photo
|
|
P6 Terminal Layout (Bottom views)
|

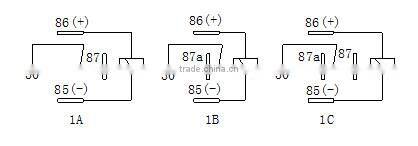

P7 Wiring diagram (Bottom views)
|
