Glass Washing Machine/automatic Glass Washing Machine Made in China
- 10 Set / Sets per Month
- Tianjin
Product Details
| Condition: | New | Machine Type: | Glass Washing and Drying Machine | Production Capacity: | 0-12m/min |
| Place of Origin: | Beijing, China | Brand Name: | SAGERTEC | Model Number: | SZ-W25 |
| Voltage: | custom made | Power(W): | 35kw | Dimension(L*W*H): | 5500*3600*2840mm |
| Weight: | 3800kg, 3800kg | Certification: | CE | Warranty: | 1 year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

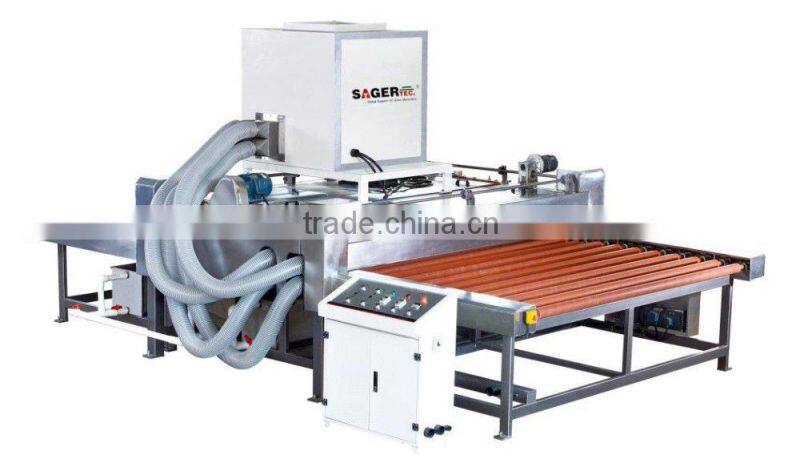

Horizontal Glass Washing Machine SZ-W25
SZ-W25 glass washing and drying machine adopts horizontal structure and is used for cleaning

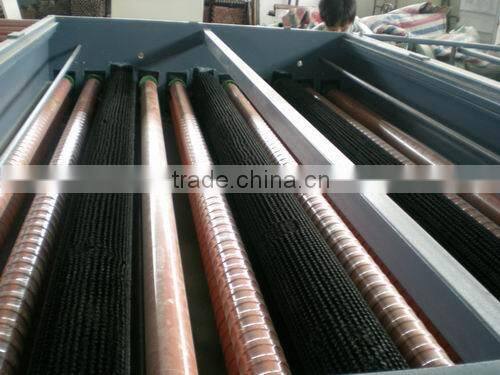

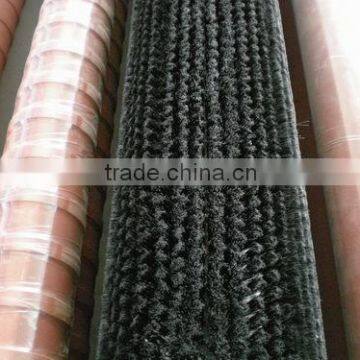

and drying flat glass. It is made up of 3 pairs of brush. The washing section is adjusted by
electric motor, There are various types available for different glass, float, coating and low-E glass.
Digital display, and the washing section can be elevated and lowered as a whole, and the Max.
Hoist height is 400mm.
Model | Min size | Max width | thickness | Speed | Power | Weight(kg) | Dimension |
W33 | 500*500mm | 3300mm | 3-25mm | 0-7m/min | 35KW | 4800 | 5500*4500*2840mm |
W30 | 500*500mm | 3000mm | 3-25mm | 0-7m/min | 35KW | 4300 | 5500*4200*2840mm |
W25 | 400*400mm | 2500mm | 3-25mm | 0-12m/min | 35KW | 3800 | 5500*3600*2840mm |
W20 | 400*400mm | 2000mm | 3-25mm | 0-12m/min | 28KW | 3200 | 5500*3100*2840mm |
VW16 | 500*500mm | 1600mm | 3-19mm | 7-12m/min | 24KW | 3500 | 6000*1500*2400mm |
| SW08 | 150*150mm | 800mm | 3-19mm | 0.7-3.5m/min | 10KW | 1200 | 2800*1350*1000mm |
| SW12 | 150*150mm | 1200mm | 3-19mm | 0.7-3.5m/min | 12KW | 900 | 3500*1750*1000mm |
| SW16 | 200*200mm | 1600mm | 3-19mm | 0.7-3.5m/min | 13kw | 800 | 4000*2150*1000mm |

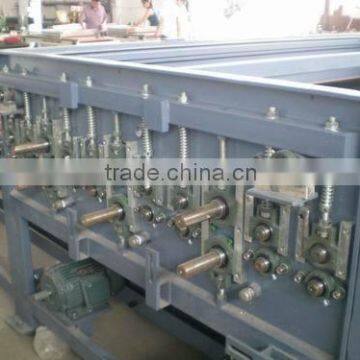

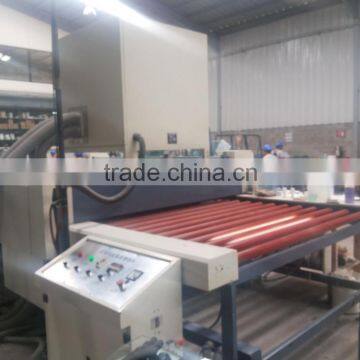

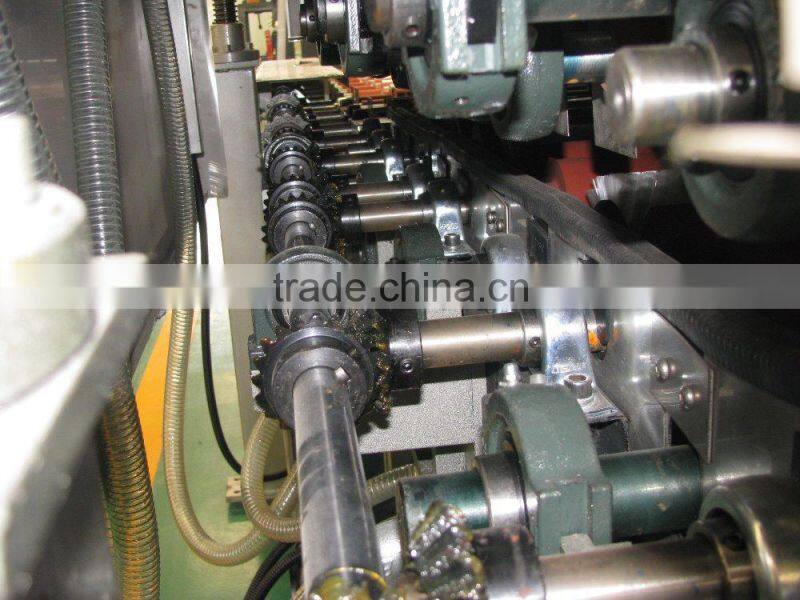

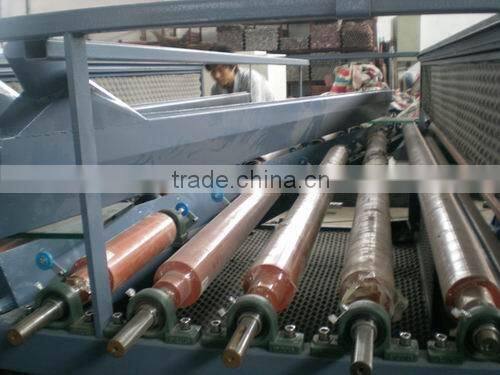

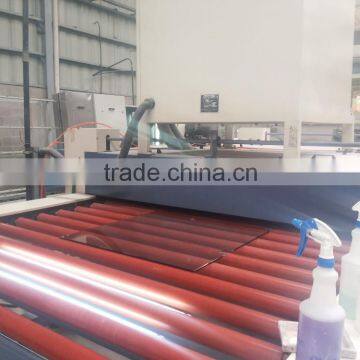

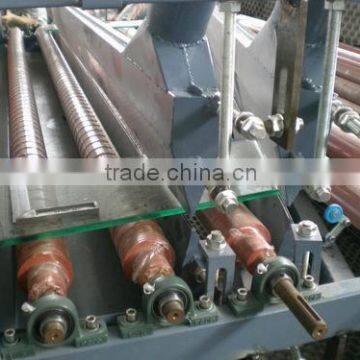

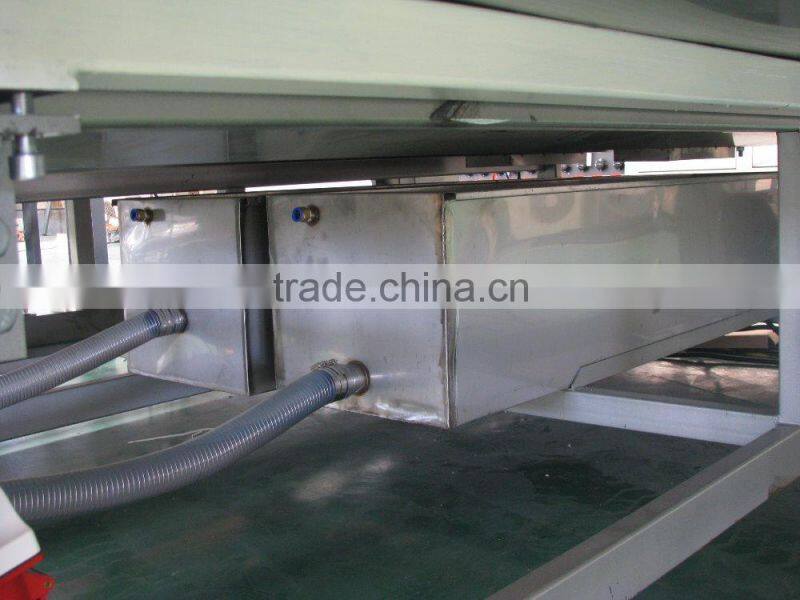

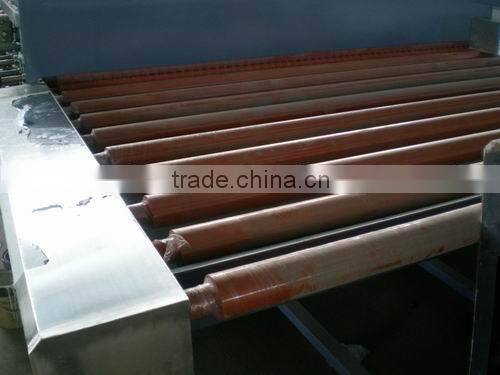

Product pictures
Exhibition
SAGERTEC is a professional designer and manufacturer for glass machinery,our products have been exported to USA,Europe,Australia,South America etc.sager was staring up the project for new glass processing machines in 2008 by optimized cooperation and source integration.we also have a branch in Brazil.our business philosophy is source integration,technology renovation,ensure quality and service clients.
