pet food machine
Pet chews machine/pet treats extruder/making machinery
Technical Parameter
Model |
MT0 single screw extruder |
MT00 single screw extruder |
Installed capacity |
38kw |
54kw |
Power consumption |
28kw |
30kw |
Output |
40-50kg/a |
60-100kg/h |
Size |
12000*1200*2000mm |
13000*1200*2000mm |
Introduce:
Dog chewing food machine can make dog chewing food is made of many kinds of different materials with
scientific configuration and extrusion in the extruder. This kind of product can be made into a variety of
shapes such as stick, bone, etc. This kind of food not only provides nutrition to dogs, like protein, fat, vitamin,
etc, but also satisfies the dog nature hobby, benefits its strong teeth, cleans mouth and teeth, and prevents
disease.
Materials: adopts corn flour, bone meal, fish meal as raw materials
Capacity: 100kg/h 200kg/h
Voltage: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local
voltage according to different countries

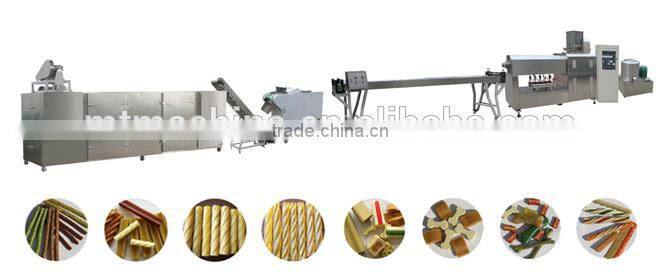

Process and follow chart
Mixer---Screw conveyor--- Single screw extruder---Cooling machine---Cutting machine--- Hoister---Drying oven
Technical parameter
NO. |
EQUIPMENT |
QUANTITY |
TECHNICAL PARAMETER |
FUNCTION |
1 |
Mixer |
1 |
Power:4kw Output:50kg/tube Size:0.8*0.7*1.2m |
To mix the raw materials with the water
|
2 |
Screw conveyor |
1 |
Power:1.1kw Output:100-500kg/h Size: 0.2*0.8*3.0m |
To send the materials to the extruder, |
3 |
Double-screw extruder TN65-III |
1 |
Power:35kw Length-diameter ratio: 1050*65 Output:120-150kg/h Size: 2.5*1.0*1.8m |
To extrude and inflate the food. the main machine of the line |
4 |
Cooling transfer |
1 |
||
5 |
Multi-function cutting shape |
1 |
Power:1.1kw Output:150kg/h Size: 1.0*0.8*1.2m |
To shape the food, like moon, bird, fish etc. |
6 |
Large-hoister T200
|
1 |
Size 1.52*1.192*2.945m Power 0.8kw Hoisting hight 1.9m Hoisting speed 3m/min Hoisting capacity 300kg
|
To convey the production from one machine to another |
7 |
Roasting oven (3layer/5m electrical) |
1 |
Power:27.5kw Output:100-150kg/h Size: 5*1.3*2.0m |
To dry the food
|
Payment term:
1. 40% of total payment as the deposit,we will finish the machine within 40 days.
2. 60% of total payment before making delivery the Equipment to Buyer’s plant.
Package: Wooden case for export, fit for multiple handing and long distance marine shipping.
Delivery time: Seller should get all the goods ready and ship the goods to the destination port within 40 days after receiving the total amount price.
Quality guarantee terms: equipment shall be guaranteed 12 month, without destroyed by some people. Enclosed the whole line, we will give you some spare parts, such as heating ring, spanner, etc. for free. The spare parts shall be supplied at preferential price for an extended long time.
Installation and training: we will send our engineer to install and train in your company, on condition that you should supply the go and return air tickets, the accommodation, the food for our engineers and also pay USD30 each person per day.
Company Information
we MT machinery&equipment CO.,LTD is a manufactory professional do the corn flakes machinery processing line ,we have good engineer ,have many years installation experience ,can help our customer do the good quality product .
FAQ
Q1: If we buy machines, what is the after-sale service?
Jinan meiteng Food machinery manufacture will send the engineer to buyer’s factory. Offer the trainee program, start the related food production as customer request.
Q2: If machines wearable parts need to change, what should we do?
we will offer the wearable parts all the time. And offer the on-line video instruction for the operation.
Q3: What is the payment terms if we want to buy the machines?
Usually it is 30% by T/T, pay the balance by T/T before delivery or L/C at sight
