Specifications
puffed extruded core filling machine 1.adopt new technology2.uas stainless steel
3.can filling chocolate ,cream
Core filling snacks food machine
duction description
1. Description:
Core filling snack food machines was manufactured based on our abundant experience and international advanced technology. With the high quality, exquisite craft, good after sale service and steady performance, our machines were well sold in the world.
2. Raw materials:
adopts corn, rice, wheat, oat, barley etc as ingredients
3. Products:
Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder
4. Capacity:
150kg/h, 240kg/h, 500kg/h
5. Flow chart:
Mixing system---Extrusion system---- -Drying system----Flavoring system---Packing system
6. Voltage in China:
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
7. Machines Materials:
All the machines are made by stainless steel
----the production line is an integration of raw material mixing,raw material conveying,
extruding and shaping,drying and coating to final products.
----rich various of tastes can be made by canging various of seasoners.
8.Technical parameters:
Model |
Installed power |
Real power |
Output |
Dimension |
MT-65 |
81.5kw |
53kw |
100-150kg/h |
21000x1200x2200mm |
MT-70 |
115kw |
76kw |
200-240kg/h |
23000x1500x2200mm |
MT-85 |
181kw |
117kw |
400-500kg/h |
28000x3500x4300mm |

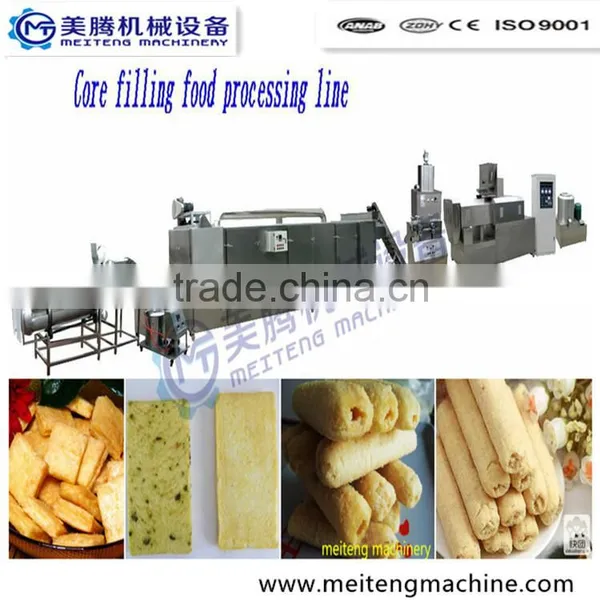

9.Sample pictures:
10.Features
1.High Quality Core Filling Food Processing Line is developed bases on the advanced int'l extruder technology and combines our plenty of experience on extrusion food technology. These equipments can use maize flour, rice flour, millet flour, buckwheat flour, oat flour and wheat flour, etc as raw material according to the market requirement.
2.Continuous, automatic and economical process with an easily controlled production cycle,which is the best interpretation of high qualitycore filling food processing line .
High Quality Core Filling Food Processing Line , thanks to the particular process conditions, the finished product having long lasting crispness in milk due to minimal damage of the cereal's starch structure during processing.
3.High Quality Core Filling Food Processing Line , which has unlimited choice of shapes and formula for shaped cereal, fully automatic and continuous processing procedures.
11.Advantages
1.Stainless steel structure, especially the parts in contacting with the raw material or products;
2.A wide range of products can be obtained in a variety of different ways, and can configure various dies simply and rapidly.
3.The use of a continuous automatic process provides greater production outputs than offered by traditional systems, with savings in energy and reduced management cost;
Automatic dosing unit for utilization with any type of flours and starches (the size should be 60-80mesh);
4.The screws are all made by 38CrMoAIA and alloy layer with the hardness of 55HRC, which is hard and strong, and has longer service life (1.5-2 years);
Barrel is divided into 3 parts; the hardness of the barrel is 55HRC;
5.The barrel and the screws are modular in structure. Each module is equipped with its own thermoregulation ring with cooling circuits and electric heating resistances;
If you want to know more ,please feel free to send me inquiry and i will send video,pictures to you about our core filling snacks food making machine .
