Corn snacks machine
1. Twin Screw Extruder
2. Raw materials: all kind of grains
3. Different shapes by changing dies

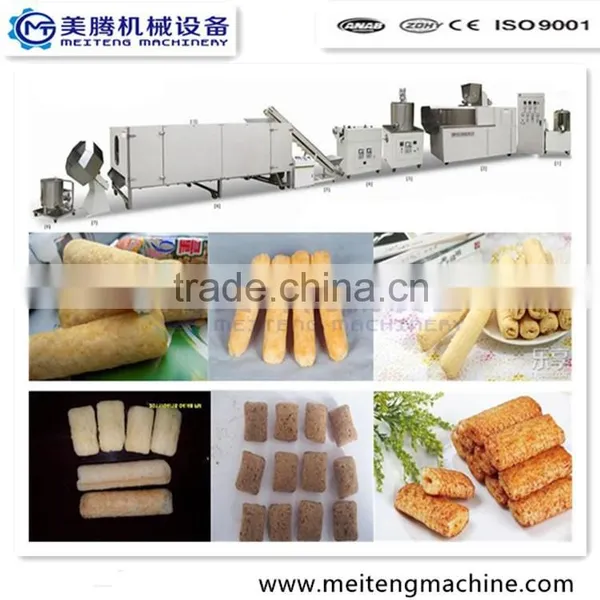

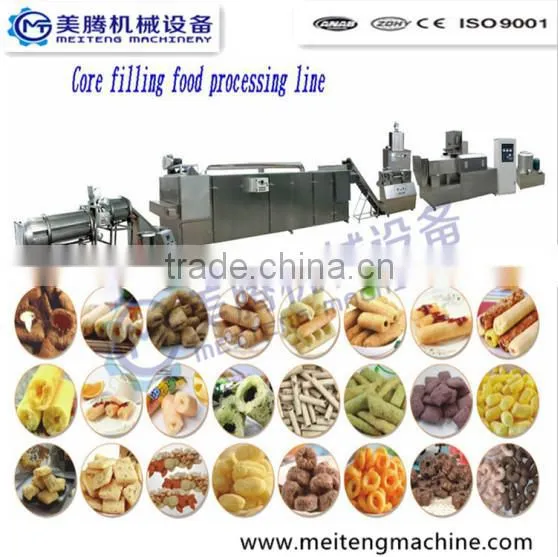

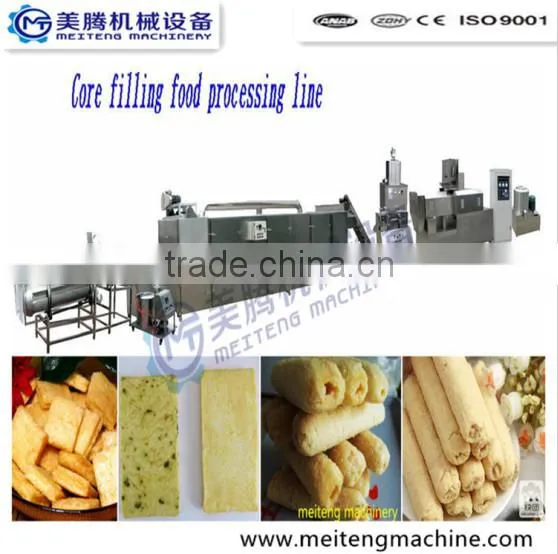

Core Filling Snacks/Puffed Snacks Processing Line
Corn snacks machine is a new type of extruding food processing line studied and developed by ourselves on the basis of learning from advanced technology in the world so that its technical performance and quality of products both reach to the most advanced in the world. This line will finish mixing, extruding, drying flavoring, packing in one-pass operation automatically. This line features lots of types, flexible collocation, extensive applied materials, various products and easy operation.
2. Raw materials: adopts corn, rice, wheat, oat, barley etc as ingredients
3. Products:Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder
4. Capacity: 150kg/h, 240kg/h, 500kg/h even higher
5. Flow chart:Mixing system---Extrusion system---- -Drying system----Flavoring system---Packing system
6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
7. Machines Materials: All the machines are made by stainless steel
8. Technical Parameters
| Model | Installed Power | Power Consumption | Output | Size |
| MT65 Inflating Snacks Process Line | 84kw | 59kw | 120-150kg/h | 21000*1200*1500MM |
| MT70 Inflating Snacks Process Line | 132kw | 92kw | 200-250kg/h | 23000*1500*2200MM |
| MT85 Inflating Snacks Process Line | 239kw | 167kw | 500-700kg/h | 28000*3500*4300 |
a. Screw with 38CrMoAL excellent material and being Nitriding treatment Made in Zhoushan, Zhejiang Province China. The HRC hardness is around 60---62.The screws are made by alloy steel and special craft, the screw life is longer. And it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
b.The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel coating.
c.The gearbox has automatic lubrication function, with extends gear life.
d.Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
e.We use SIEMENS (CHINA)electrical parts.
f. Main Motor from SIEMENS(CHINA) or other famous brand, ensure its Powerful Extrusion and Excellent Performance.
If you are interested in our machine,please feel free to contact me.Thanks.
