Home > Products > Centrifugal fan > Free standing mounting/mounted centrifugal fan

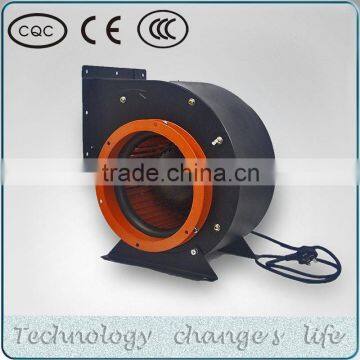

Free standing mounting/mounted centrifugal fan
- 300 Piece / Pieces per Month
- Ningbo
- T/T Credit Card
You May Like
Product Details
| Electric Current Type | AC | Blade Material | Cast Iron | |
| Mounting | Duct Fan | Place of Origin | Zhejiang, China | |
| Brand Name | lvsong | Model Number | CF4D-200-QD | |
| Power | 536W | Voltage | 380V | |
| Air Volume | 2505m³/h | Speed | 1373r/min | |
| Certification | CCC, CE | After-sales Service Provided | No overseas service provided |
Product Description
EXTERNAL ROTOR DOUBLE INLET CENTRIFUGAL FAN
1. Features:
High versatility, High efficiency, Low noise, With large volume
2.Application:
Ideal corollary product for central air-conditioner equipment of different specifications, heating and ventilating air conditioner, purifier, ventilator and other equipments.
3. Working Condition:
3.1 Environmental temperature: -20 to 80 °C
3.2 Particles contain in the air should not exceed 100mg/m³
3.3 Air transferred should not contain any toxic, corrosive and adhesive materials
CF 4 D(E) -200-QS
1 2 3 4 5
1.CF-external rotor centrifugal fan
2.Motor pole number:4--four poles
3.D-three-phase motor E-single-phase motor
4.Fan blade diameter:200-blade diameter is 200mm
5.Type code:QS-single inlet air
| Factory size : 10,000-15000square meters | No.1 |
| Number of R&D Staff : 5 - 8 People | No.2 |
| Number of QC Staff: 5 - 10 People | No.3 |
| MOB: 0086 18957664153 | No.4 |
Contact Us
- Taizhou Hangfeng Mechanical And Electrical Co., Ltd.
- AddressLin'ao Ind. Zone, Chengnan Town, Wenling
