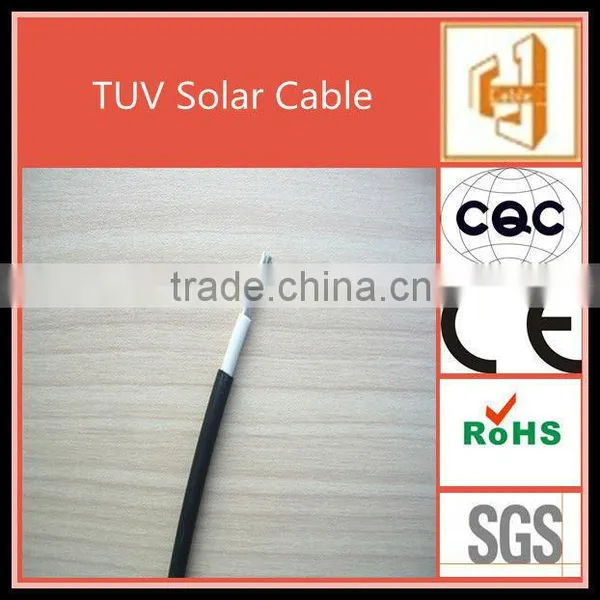

4mm Mc4 Connector Solar Cable

Name: 4mm Mc4 Connector Solar Cable
Brand: huajie
SKU: 104973331

US$ 0.4 - 2.5 MOQ: 20 Kilometers

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

huajie

Model Number:

solar cable 4mm2

Hangzhou Linan Huajie Wires & Cables Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShangHai /NingBo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name huajie

Model Number solar cable 4mm2

Insulation Material XLPE

Type High Voltage

Application Other, photovoltaic systems

Conductor Material Copper

Jacket PE

Specifications

4mm mc4 connector solar cable:
1.Factory Competitive price.
2.Timely delivery.
3.ISO9001, TUV,CE, ROHS

4mm mc4 connector solar cable: Solar cabel Application
Solar cable (Type PV) are interconnection of the various elements of photovoltaic systems solar panel arrays.
Suitable installations internal and external , within unprotected pipes, or insimilar closed systems.

Specification & Structure dimension
Conductor			Insulation	Insulation	Jacket	Outer diameter	Max DC Resistance of Conductor	Refere nce weight
Sectional Area	Conductor stucture No. /diameter	Average outer diameter	Standard thickness	Standard diameter	Standard thickness	Outer diameter	Max DC Resistance of Conductor	Refere nce weight
mm2	mm	mm	m	mm	mm	mm	20°C Ω/Km	Kg/Km
1*1.5	30/0.25	1.58	0.9	3.38±0.1	1.1	5.5±0.2	13.7	39.8
1*2.5	50/0.25	2.04	0.85	3.38±0.1	0.9	5.5±0.2	8.21	52.2
1*4.0	56/0.30	2.59	0.85	4.29±0.1	0.9	6.1±0.2	5.09	70.71
1*6.0	84/0.30	3.17	0.85	4.87±0.1	1.05	7.0±0.2	3.39	102.6
1*10	80/0.40	4.13	0.9	5.93±0.1	1.2	8.3±0.2	1.95	153.9
1*16	128/0.40	5.22	0.9	7.02±0.1	1.2	9.4±0.3	1.24	230.5
1*25	196/0.40	6.9	0.9	8.7±0.1	1.2	11.1±0.3	0.795	340

Technical Data
Nominal Voltage: UO/U-600/1000AC.1800DC
Test Voltage: 6500V, 5min, 50HZ
Conductor DC Resistance at 20°C≤0.795Ω/Km
Temp. rating: -40°C ~ +125°C
Max.Conductor Temp.: +120°C
Ambiet Temp .(-40°C ~ +90°C): > 25years
Bending radius: ≥ 8* cable OD
Fire performance: IEC60332-1 TUV 3PFG 1169/08: 2007
UV Resistant: ≥ 720h
Content of halogen acid gas: IEC670754-1 EN50267-2-1
Smoke density: IEC61034, EN50268-2 Workshop : PE/PVC Production Lines:
