1/2'' Jumper Cable

Name: 1/2'' Jumper Cable
Brand: HUAJIE
SKU: 104973019
Availability: InStock

US$ 1.2 - 1.8 MOQ: 5 Kiloamperes

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

HUAJIE

Model Number:

1/2''

Hangzhou Linan Huajie Wires & Cables Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name HUAJIE

Model Number 1/2''

Type Coaxial

Number of Conductors 1

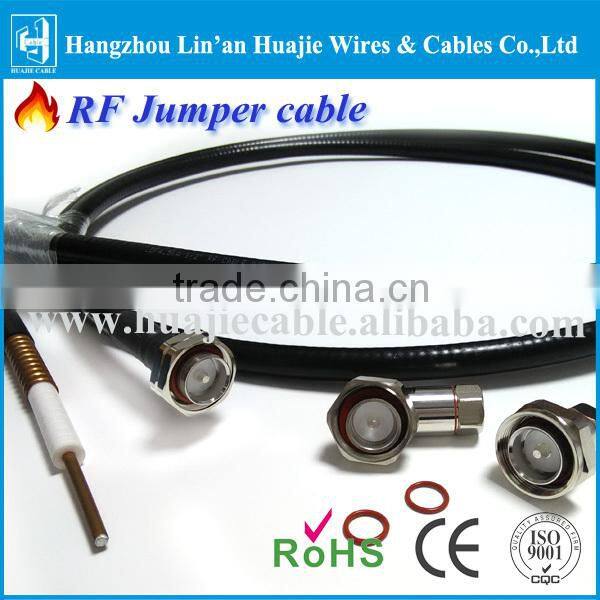

1/2'' Jumper Cable

Specifications:

Type Type No.
Standard cable HCAHY-50-9 Fire-retardant cable HCAHYZ-50-9
Construction
Inner conductor	Material	CCA
	Diameter(mm)	3.60±0.05
Insulation	Material	Foamed PE
	Diameter(mm)	9.2±0.15
Outer conductor	Material	Helical corrugated copper tube
	Diameter(mm)	12.2±0.15
Jacket	Material	LLDPE or fire-retardant PE

	Min.thickness(mm)	>0.7
	Diameter(mm)	13.6±0.2
Mechnical Characteristics
Bending radius(mm)	Single bend		17
	Repeated bend		55
Tensile strength(N)			750
Cable weight(kg/km)			185
Recommended temperature(℃)	Storage		-70~+85
	Installation		-40~+60
	Operating		-55~+85

Note:

For fire-retardant jackter cable,recommended temperature:

Storage:-30℃~+80℃

Installation:-25℃~+60℃

Operating temperature:-30℃~+80℃

Electrical Characteristics
Inner conductor DC resistance(Ω/km)				2.99
Outer conductor DC resistance(Ω/km)				3.88
Characteristic impedance(Ω)				50±1.5
Capacitance(p F/m)				82
Velocity(%)				84
Dielectric strength(KV)				3.0
Insulation resistance(MΩ/km)				>1×104
Peak power rating(KV)				16
Peak voltage(V)				1400
Cut-off frequency(GHz)				13
Attenuation and Average power(Maximum attenuation value shall be 105% of the nominal attenuation value)
Frequency (MHz)	Attenuation (@20℃,d B/100m)		Average power(kv)
200	4.91		2.14
450	7.59		1.38
800	10.40		1.01
900	11.20		0.95
1000	11.80		0.89
1500	14.90		0.70
1800	16.60		0.63
2000	17.60		0.59
2200	18.27		0.56
2500	19.20		0.52
3000	22.40		0.46
VSWR
800MHz~1000MHz		≤1.10
1700MHz~2500MHz		≤1.15
2500MHz~3000MHz		≤1.15
