Specifications
Data Lan Cable CAT6 UTP 24AWG:1>Construction: 2/4 pairs CCA/CU wire
2>24 AWG
Data Lan Cable CAT6 UTP 24AWG:
Cable construction(CAT) | |||||
|
Construction
|
Nominal Conductor Dimension mm |
Nominal Insulation Diameter mm |
No of pairs
|
Nominal cable OD
|
Type of jacket
|
UTP |
0.50 |
0.89 |
4 |
5.1 |
PVC/PE/LSZH |
UTP |
0.51 |
1.01 |
4 |
6.0 |
PE |
UTP |
0.51 |
0.95 |
4 |
6.5 |
PE |
UTP |
0.50 |
0.90 |
4 |
6.3 |
PVC+PE |
UTP |
0.51 |
0.91 |
4 |
5.3 |
PVC/LSZH |
Electrical characteristics | |||||||
|
Frequency MHz |
Impendance ohm |
RL ≥dB |
Attenuation ≤dB/100m |
Next ≥dB/100m |
Elfext ≥dB/100m |
PS next ≥dB/100m |
PS Elfext ≥dB/100m |
|
1 4 10 16 20 31.5 62.5 100 |
100±15
|
20.0 23.0 25.0 25.0 25.0 23.6 21.5 20.1 |
2.0 4.1 6.5 8.2 9.3 11.6 17.0 22.0 |
65.3 56.3 50.3 47.3 48.5 42.9 38.4 35.3 |
63.8 51.7 43.8 39.7 37.7 33.9 27.8 23.8 |
62.3 53.3 47.3 44.2 42.8 39.9 35.4 32.3 |
60.8 48.7 40.8 36.7 34.7 30.9 24.8 20.8 |
Color:
Applications:
100 Base-TX;100 Base-T4;100VG-AnyLAN;1000 Base-T(Gigabit Ethernet);ATM
Product Description:
Rated temperature:60°C,75°C,90°C
Bare solid copper conductor
RoHS Complied PVC,PE or LSOH Jacket
Complies to TIA/EIA-568B&ISO/IEC 11801
Installation temperature;-30°C-+50°C

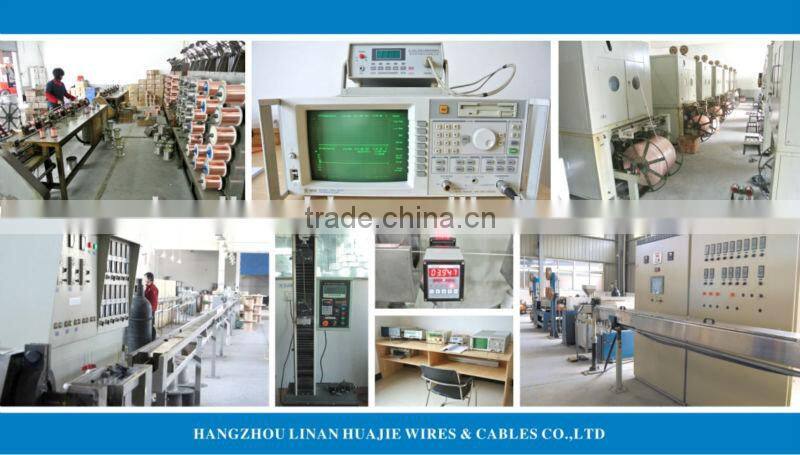

Hangzhou Lin'an Huajie wires&cables Co., Ltd, established in 2002 and located in the area of
Hengxi industrial,Lin'an,Zhejiang, China. With beautiful environment, convenient transportation.
We have advanced producting machines, test equipments and professional workers. The mian
products in our company are:Physical-highly-foamed coaxial cable, 75ohms and 50ohms. cable
of RG series and CT series,onitorcavle, multimedia cable, Lan cable, fiber optical cable and etc.
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request
