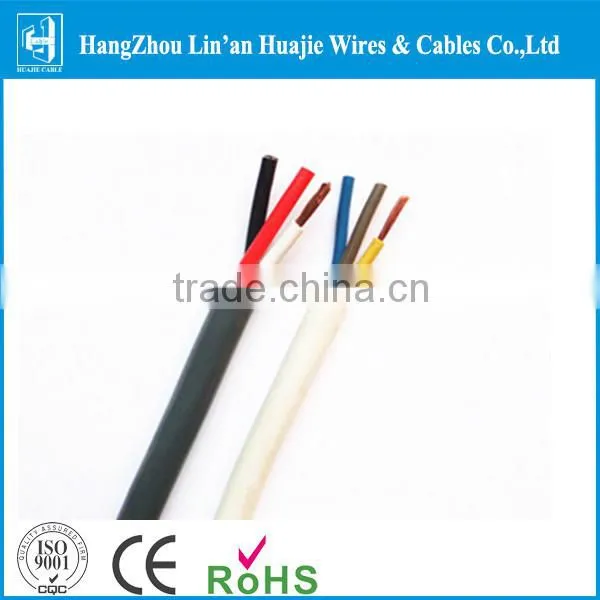

Braided Electrical Wire Flat Electrical wire:
Product Description
Conductor: bare or tinned, stranded or solid copper conductor
Insulation: lead free PVC
Electrical Characteristics
Rated voltage: 300/500V
Rated temperature: 70℃
Test voltage: 2500V (5 min)
Application
For power supply cord
Product Type |
Cores |
Cross section |
Conductor No. mm |
Insulation Dia. mm |
Maximum Resistance 20℃ ohm/km |
RPVC 001 |
1 |
2.5 |
20/0.40 |
3.7 |
7.41 |
RPVC 002 |
1 |
4.0 |
20/0.50 |
4.3 |
4.61 |
RPVC 003 |
1 |
6.0 |
19/0.64 |
4.9 |
3.08 |
RPVC 004 |
1 |
10.0 |
51/0.50 |
6.5 |
1.83 |
RPVC 005 |
1 |
16.0 |
80/0.50 |
7.6 |
1.15 |
RPVC 006 |
1 |
25.0 |
128/0.50 |
9.6 |
0.727 |
RPVC 007 |
1 |
35.0 |
178/0.50 |
10.8 |
0.524 |
RPVC 008 |
1 |
50.0 |
133/0.68 |
12.7 |
0.387 |
RPVC 009 |
1 |
70.0 |
189/0.69 |
14.5 |
0.268 |
Specification:
Item Name---Model----Core-------Size----Condutor Cross section---Conductor----Insulation
Rigid wire----BV----singlecore---1/1.38M-------1x1.5 sqmm---------bare copper----PVC, 0.6mm
Rigid wire----BV----singlecore---1/1.78mm------1x2.5 sqmm---------bare copper----PVC, 0.6mm
Rigid wire----BV----singlecore---1/2.25mm------1x1.5 sqmm---------bare copper----PVC, 0.7mm
Rigid wire----BV----singlecore---1/2.76mm------1x4.0 sqmm---------bare copper----PVC, 0.8mm
Rigid wire----BV----singlecore---7/1.35mm------1x6.0 sqmm---------bare copper----PVC, 0.8mm
Rigid wire----BV----singlecore---7/2.14mm------1x25.0 sqmm--------bare copper----PVC, 1.0mm
Rigid wire----BV----singlecore---7/2.52mm------1x35 sqmm----------bare copper----PVC, 1.0mm
Rigid wire----BV----singlecore---19/1.78mm-----1x50 sqmm----------bare copper----PVC, 1.0mm
