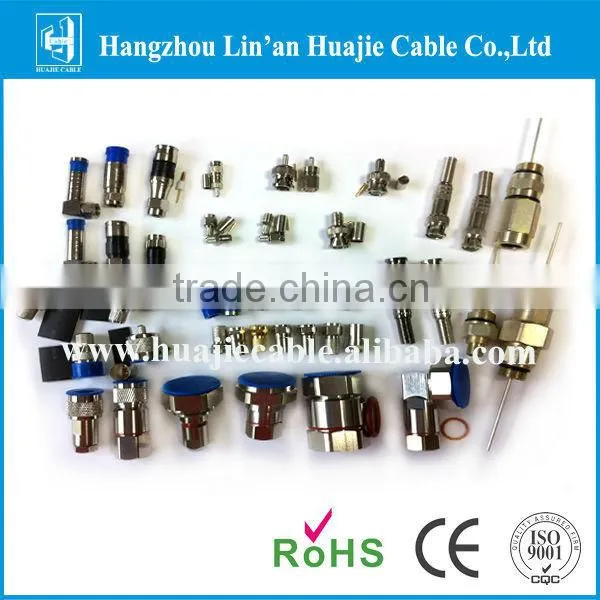

Help Center50 Ohm LMR400 RG213 RG58 N Crimp Clamp Connector
Related Products
-
RF Cable 1/2" 7/8" N DIN ConnectorUS$ 0.3 - 3MOQ: 500 Pieces -
Trunk Cable Connector 412 500 QR540US$ 0.6 - 3MOQ: 500 Pieces
-
Cable Connector RG6 RG11 Compression F ConnectorUS$ 0.143 - 0.288MOQ: 1000 Pieces
-
Ku Band Dish Antenna MotorUS$ 15 - 20MOQ: 100 Sets
-
Splitter and Taps Use in CATV SystemsUS$ 0.143 - 0.288MOQ: 10 Pieces
Specifications
50 ohm LMR400 RG213 RG58 N crimp clamp connector:1. Conductor: Bare Copper or Tinned CCA
2. CE, ROHS

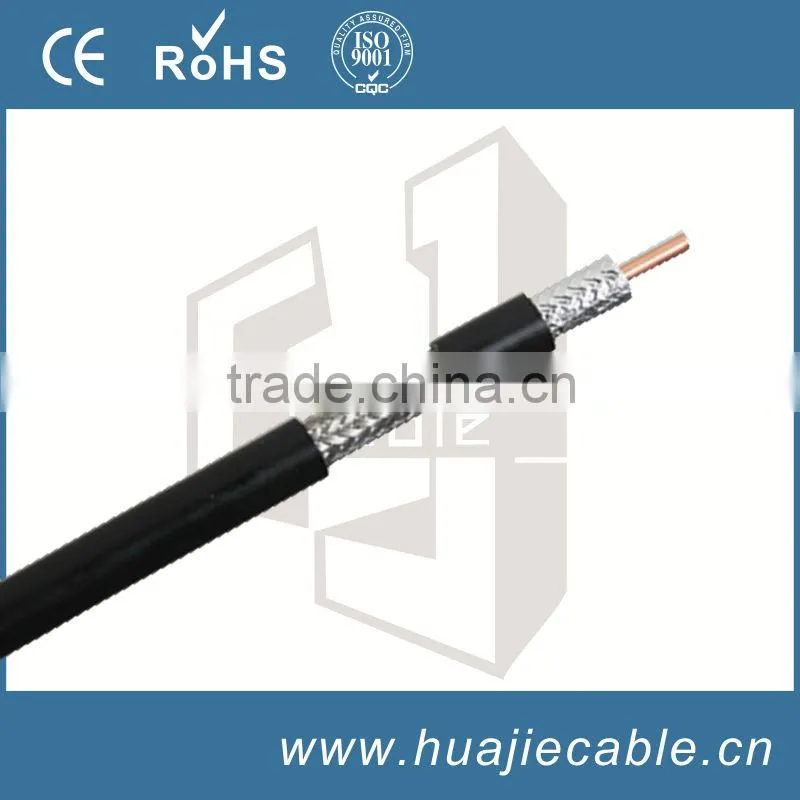

50 ohm LMR400 RG213 RG58 N crimp clamp connector:
Product description:
1> Conductor: Bare copper,CCA
2> Insulation: Foam PE
3> AL Foil: Bonded AL Foil
4> Shield: Bare Copper , Tinned Copper , Tinned CCA
5> Jacked: PE or PVC
Construction Specification:
Item |
Material |
Diameter(Inch/mm) |
|
|
Inner Conductor Dielectric Out Conductor Overall Braid Jacket |
Bare Copper Foam PE Bonded Aluminum Tinned Copper Wire Braid PVC/PE |
0.108 0.285 0.291 0.320 0.405 |
2.74 7.24 7.39 8.13 10.29 |
Electrical Characteristics
|
Impedance Ohm Capacitance Pf/m Velocity of Propagation % Return Loss Screening Effectiveness DC Resistance Ohms/KM Inner Conductor Outer Conductor Voltage Withstand Installation Temp °C Operating Temp °C |
50 ±3 78.4 85.0 ≥20 ≥90
4.6 5.4 2500.0 -40 to +85 -40 to +85 |

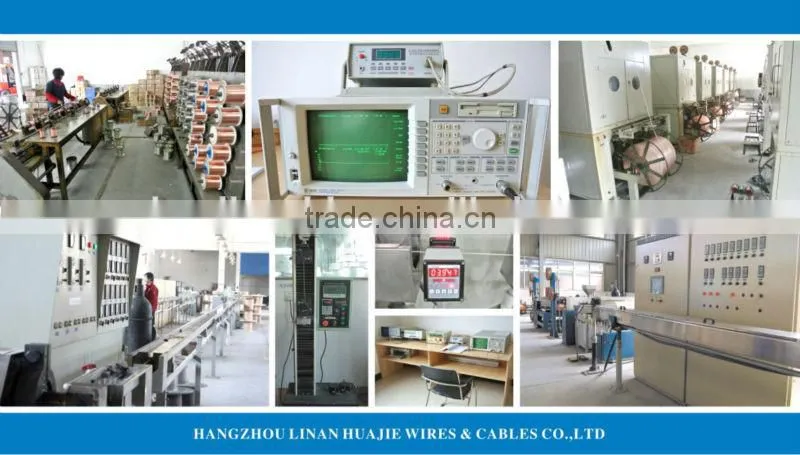

Factory Show :
Cetification :
Product list :
|

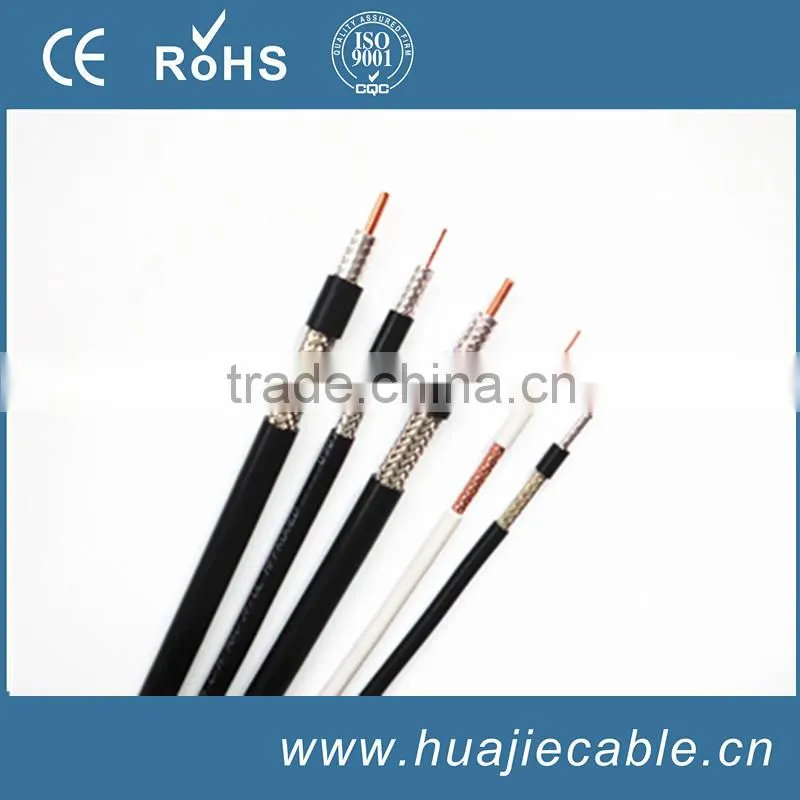

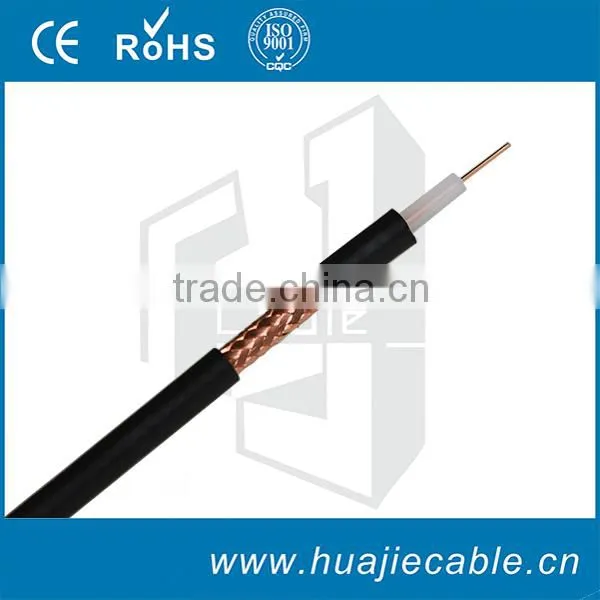

RG58
|
RG59
|

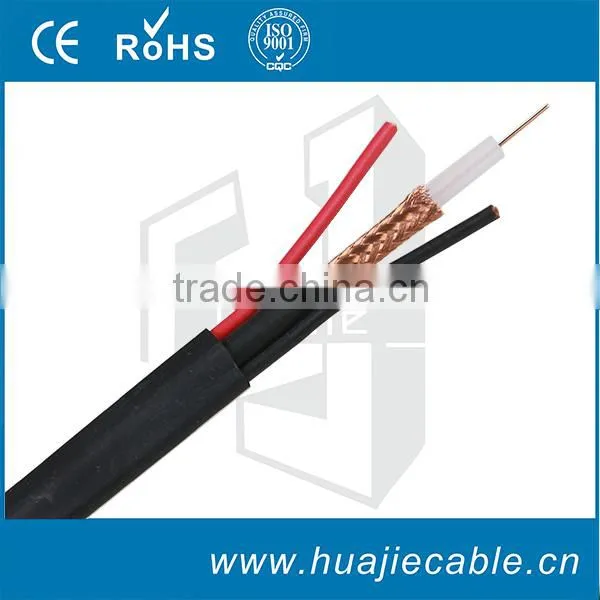

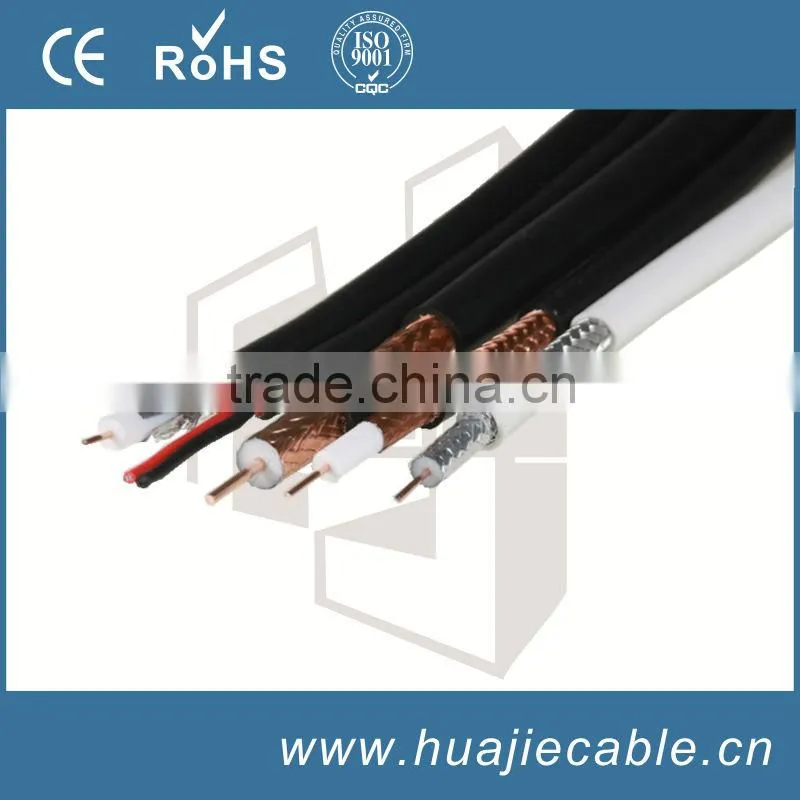

RG59+POWER |
|
RG6
|
RG11
|

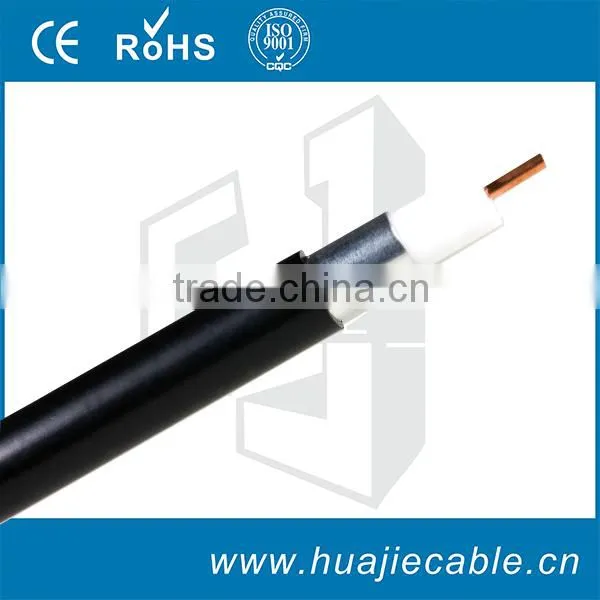

QR500/QR540
|
|

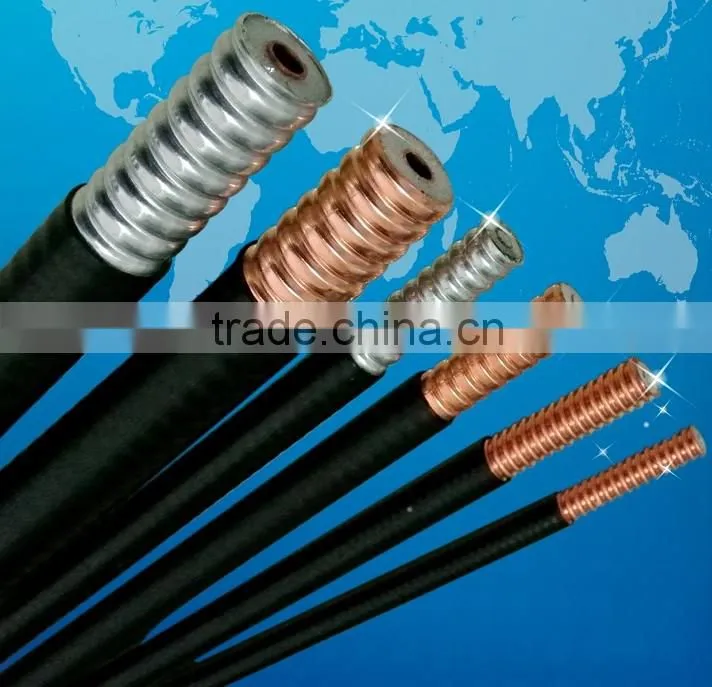

LMRCABLE
|
FEEDERCABLE
|

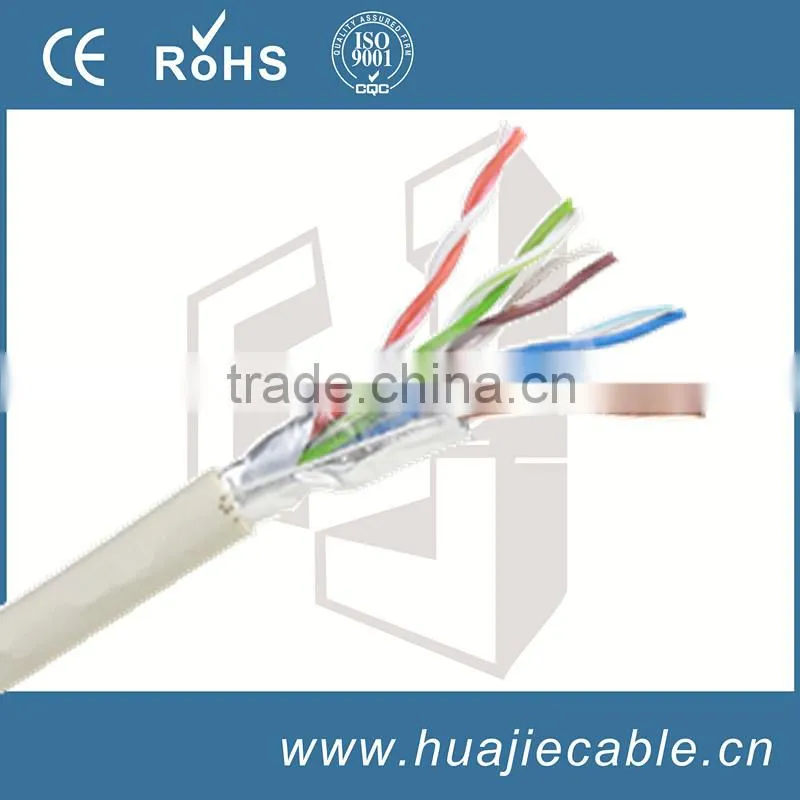

UTPCABLE
|

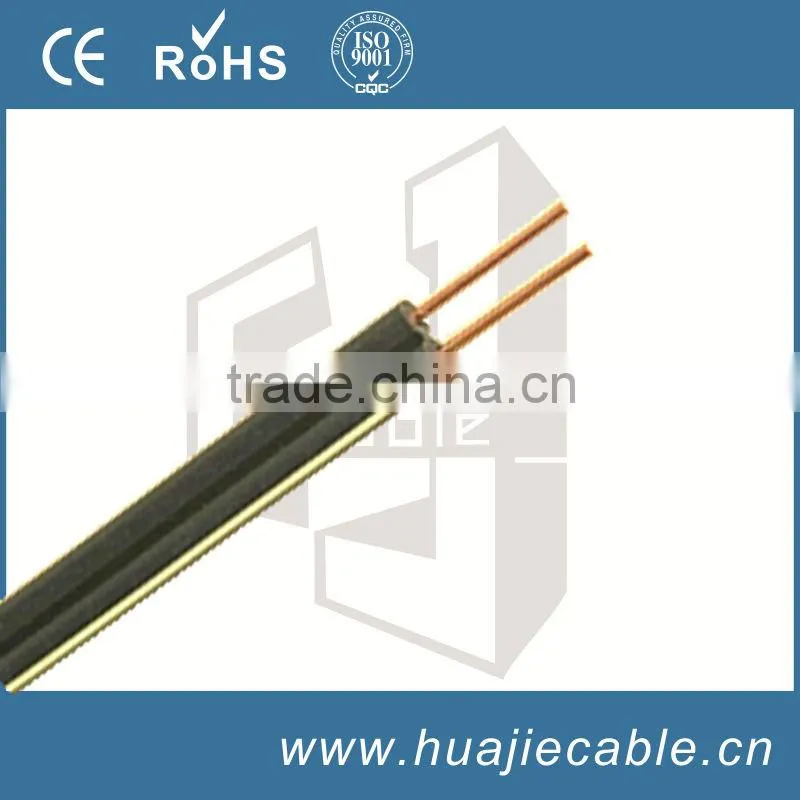

Drop Wire |

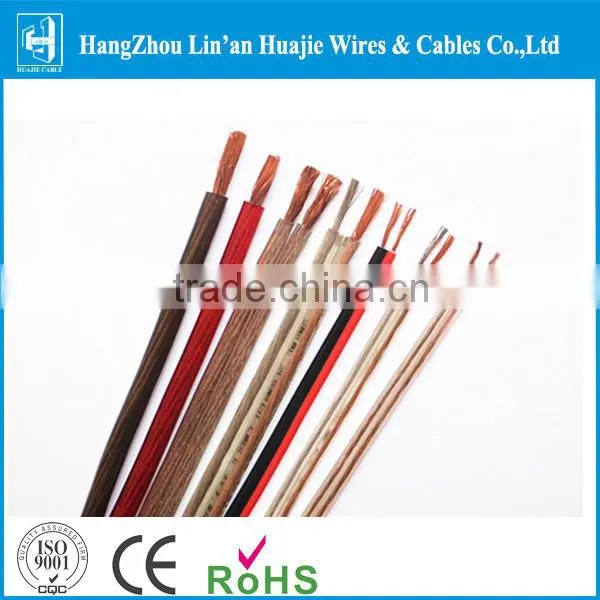

Speaker Cable |

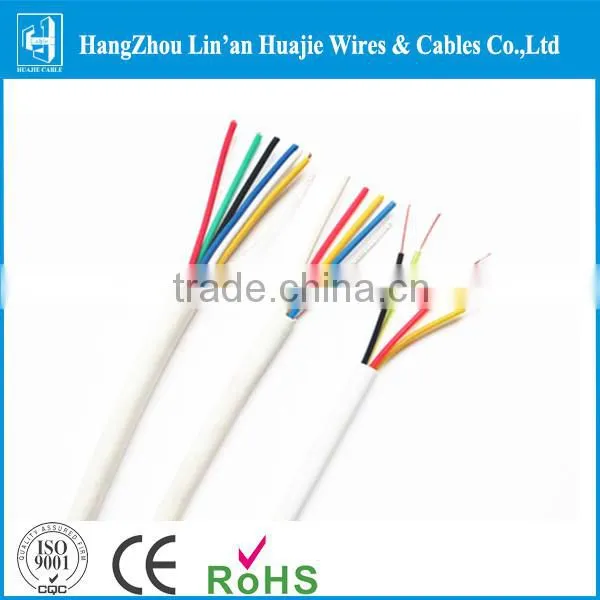

Alarm Cable |
|
|
|
Why us ?
1. We are the professional coaxial cable manufacturer, so we have rich production experience on the cables;
2. OEM/ODM is available, your own brand can be printed in both cables and boxes;
3. We have special quality control department to ensure our good quality;
4. Cables are approved based on CE, ROHS, 3C, ISO9001 quality standard;
5. Short delivery time, we can finish a 20ft container within 15 days.
