Help CenterN Male to N Male Connector With LMR400 Jumper Cable
Related Products
N Male to N Male connector with LMR400 Jumper cable:
LMR Series 50Ω Braiding Coaxial Cables
Construction
Item |
LMR100A |
LMR195 |
LMR200 |
LMR240 |
LMR300 |
LMR400 |
LMR500 |
LMR600 |
Inner Conductor(mm) |
0.46 |
0.94 |
1.12 |
1.42 |
1.78 |
2.74 |
2.74 |
4.47 |
Dielectric(mm) |
1.52 |
2.79 |
2.95 |
3.81 |
4.83 |
7.24 |
7.24 |
11.56 |
First Shield(mm) |
1.65 |
2.95 |
3.07 |
3.94 |
4.98 |
7.39 |
7.39 |
11.71 |
Second Shield(mm) |
2.11 |
3.53 |
3.66 |
4.52 |
5.72 |
8.13 |
8.13 |
12.45 |
Jacket(mm) |
2.79 |
4.95 |
4.95 |
6.10 |
7.62 |
10.29 |
10.29 |
14.99 |
Electrical Characteristics
Item |
LMR100A |
LMR195 |
LMR200 |
LMR240 |
LMR300 |
LMR400 |
LMR500 |
LMR600 |
Impedance(Ω) |
50±2 |
50±2 |
50±2 |
50±2 |
50±2 |
50±2 |
50±2 |
50±2 |
Capacitance(PF/m) |
101.10 |
83.30 |
83.30 |
79.40 |
78.40 |
78.40 |
77.50 |
76.60 |
Velocity of propagation (%) |
66.00 |
80.00 |
83.00 |
84.00 |
85.00 |
85.00 |
86.00 |
87.00 |
Inner Conductor DCR(Ohm/km) |
266.00 |
24.90 |
17.60 |
10.50 |
7.00 |
4.60 |
2.70 |
1.70 |
Outer Shield DCR(Ohm/km) |
31.20 |
16.10 |
16.10 |
12.80 |
7.30 |
5.40 |
4.20 |
3.90 |
Voltage Withstand(Volts DC) |
500.0 |
1000.0 |
1000.0 |
1500.0 |
2000.0 |
2500.0 |
3000.0 |
4000.0 |
Spark Test(VRMS) |
2000.0 |
3000.0 |
3000.0 |
5000.0 |
5000.0 |
8000.0 |
8000.0 |
8000.0 |
Installation Temp Range(°C) |
—40°C~70°C |
|||||||
Operating Temp Range(°C) |
—40°C~70°C |
|||||||

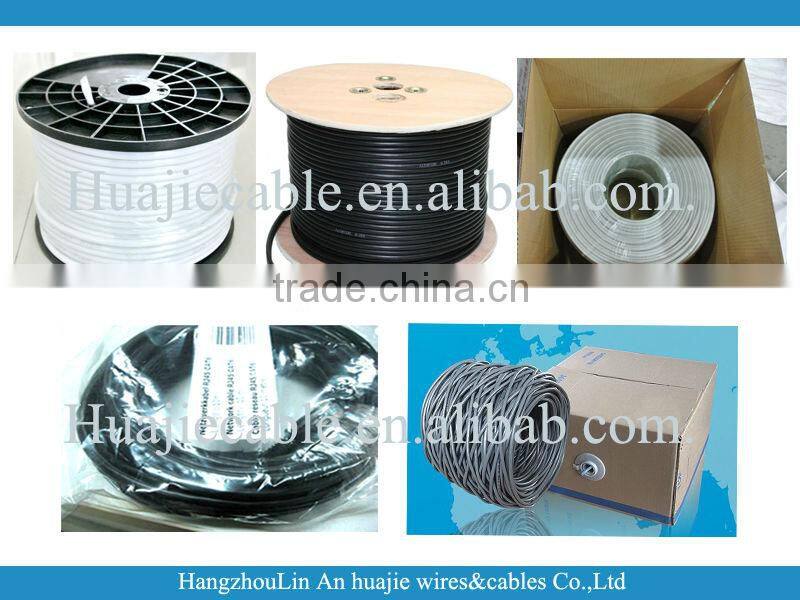

Products show:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request
Exhibition shows:
