High Quality Super Flexible 1/2" Jumper Cable

Name: High Quality Super Flexible 1/2" Jumper Cable
Brand: HUAJIE
SKU: 104965149
Availability: InStock

US$ 2.88 - 3.16 MOQ: 10 Kilometers

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

HUAJIE

Model Number:

HUAJIE-RF cable

Hangzhou Linan Huajie Wires & Cables Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name HUAJIE

Model Number HUAJIE-RF cable

Type Other, Bare, Coaxial

Application Other, Mobile Communication

Conductor Material Copper Clad Aluminum

Conductor Type Solid

Insulation Material PE

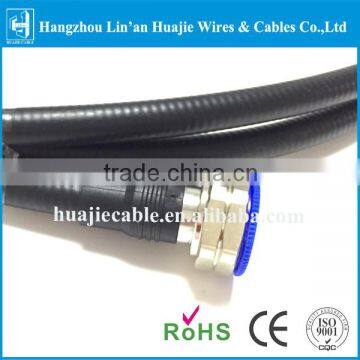

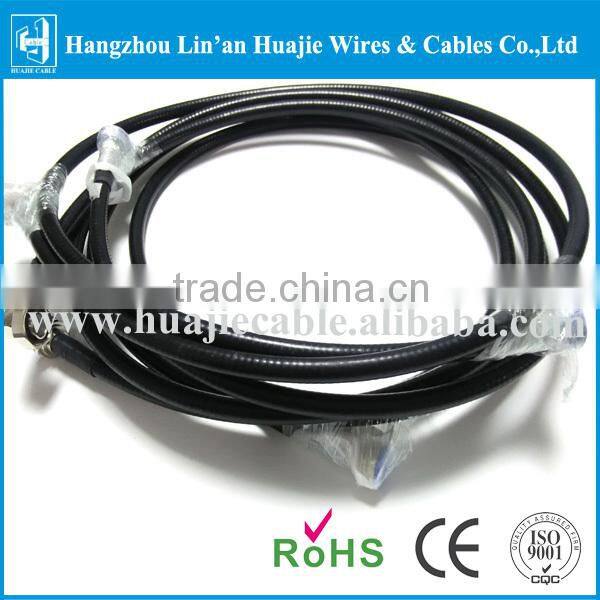

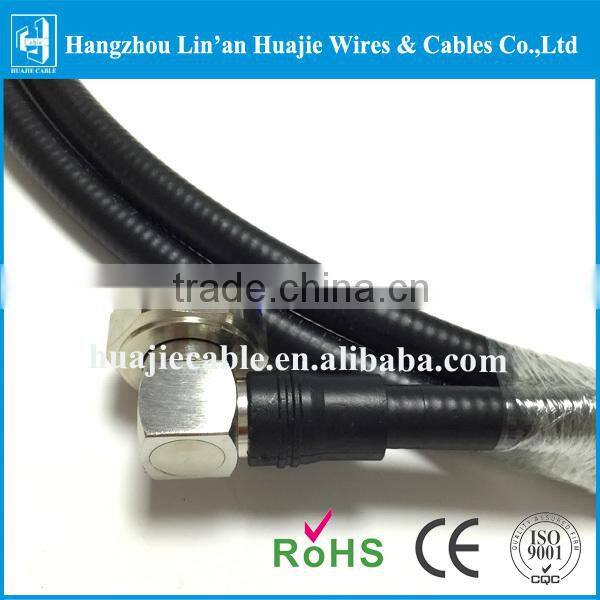

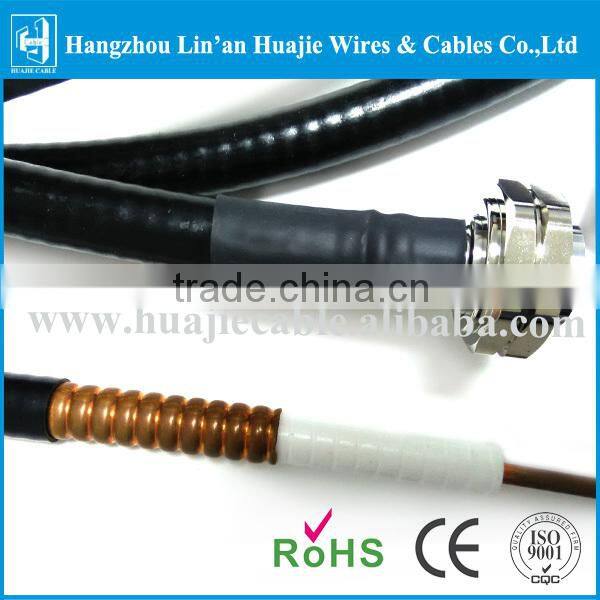

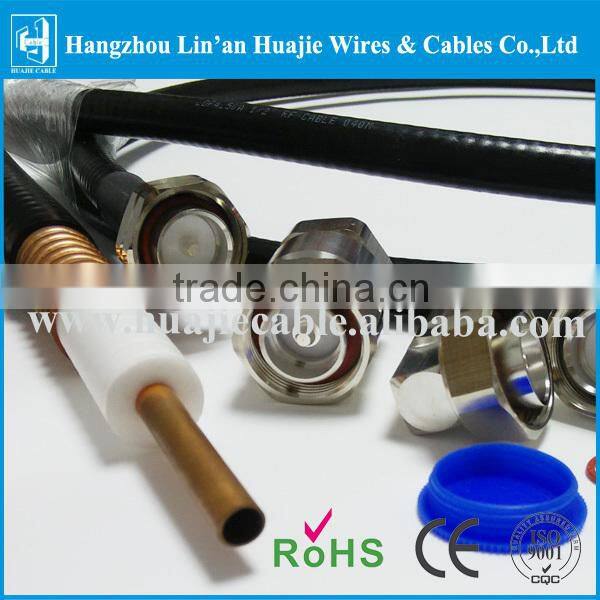

High quality super flexible 1/2" jumper cable:

Product Description

Specification:

Type	Characteristic Impendance (Ohm)	Inner Conductor (mm)	Insulation (mm)	Outer Conductor (mm)	Outer Sheath (mm)	Attenuation at 900MHz (dB/100m)	Attenuation at 1800MHz (dB/100m)
1/4" SF	50	1.90	5.00	6.40	7.60	18.40	27.10
1/4"	50	2.60	6.00	7.70	8.90	13.10	19.10
3/8" SF	50	2.60	7.00	9.00	10.20	13.50	19.70
3/8"	50	3.10	8.00	9.50	11.10	10.90	16.00
1/2" SF	50	3.55	9.00	12.00	13.70	10.00	14.50
1/2"	50	4.80	12.00	13.90	16.00	7.15	10.52
5/8"	50	7.00	17.00	19.70	22.00	5.07	7.54
7/8" F	50	9.40	22.00	24.90	27.50	4.05	6.03
7/8" SF	50	9.40	22.00	24.90	27.50	4.30	6.30
7/8"	50	9.00	22.00	24.90	27.50	3.87	5.84
7/8" Low Loss	50	9.45	23.00	25.40	28.00	3.68	5.45
1-1/4"	50	13.10	32.00	35.80	39.00	2.82	4.27
1-5/8"	50	17.30	42.00	46.50	50.00	2.41	3.70
