Sanitary hardware vacuum coating machine

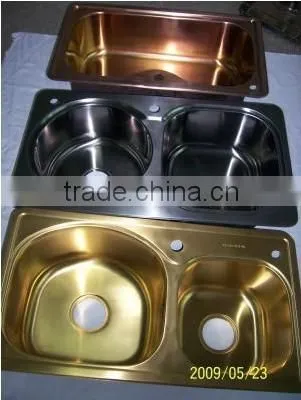

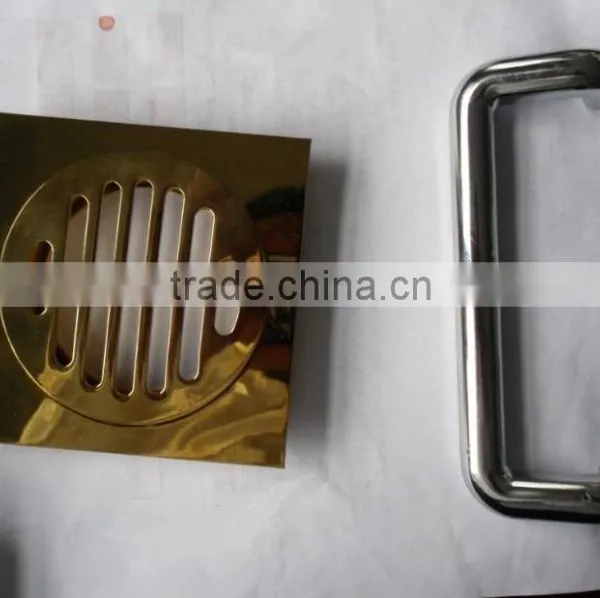

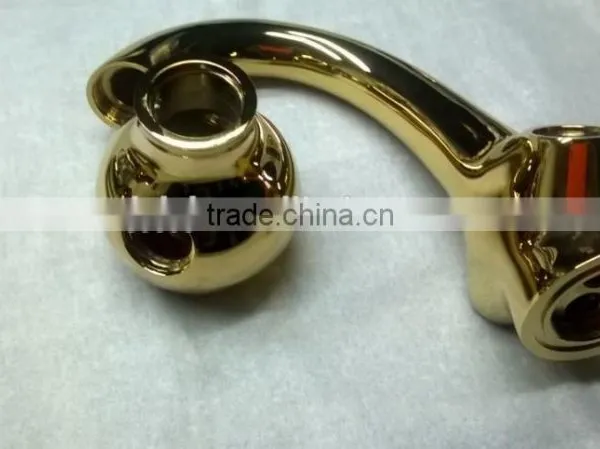

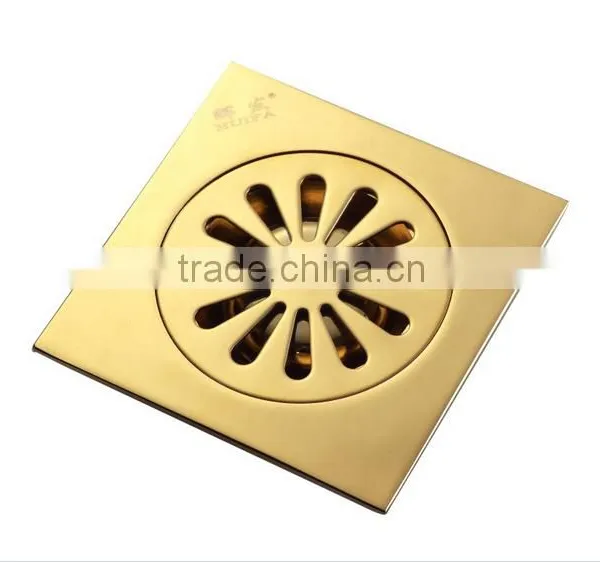

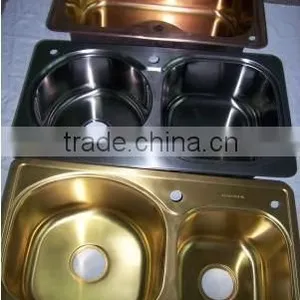

sanitary ware metallization coating machine is mainly for sanitary ware coating with kind of color directly by our machine
Sanitary ware metallization coating machine
mainly integrate the technology of MF magnetron sputtering and electric arc ion evaporation, combining the ion source and the pulse bias voltage. It is full automation control when coating films.
Applied industry:It is widely used in the watchband, watchcase, mobile shell, hardware, tableware, etc. It can coat TiN, TiC, TiCN, TiAlN, CrN, Cu, Au, Al2O3 and other decorative films.
Type |
JYDC-0910 |
JYDC -1012 |
JYDC -12 13 |
JYDC -12 16 |
|
Coating Methods |
3 electric-arc+ 2 pairs of plane rectangular cathode |
6 electric-arc+ 2 pairs of cylindrical cathode+ a pairs of plane rectangular cathode |
5 electric-arc+ 4 pairs of cylindrical cathode+ a pairs of plane rectangular cathode |
6 electric-arc+ 8 pairs of cylindrical cathode+ a pairs of plane rectangular cathode |
Dimension of the Vacuum chamber |
Q900mm 1000mm |
Q1000mm 1100mm |
Q1200mm 1300mm |
Q1200mm 1600mm |
|
Film Types |
Metal films, Dielectric films, Compound films, Reaction films, Muti-layer function films
|
|||
Power Supply |
Electric arc power supply, DC magnetron power supply, MF magnetron power supply, Pulse bias voltage power supply, ion source power supply |
|||
|
Structure of Vacuum chamber |
Pre-open vertical (single) door, postposition pump system, double water-cooling |
|||
Vacuum systems |
Molecule pump(diffusion pump)+ Roots pump+ Mechanical pump |
|||
Ultimate vacuum |
5*10-5Pa |
|||
Pumping Speed |
Pumping time less than 15 minutes, from atmospheric pressure to 3*10-3Pa |
|||
Movement of the workpiece |
Revolution/rotation, variable frequency speed adjustable |
|||
Baking temperature of the workpiece |
Adjustable and controllable from room temperature to 350, radiation heating |
|||
Control Mode |
Full automation control system PC+ PLC/PC+ HMI |
|||
Remark |
We can design the machine according to your workpiece and special technological requirement |
|||
