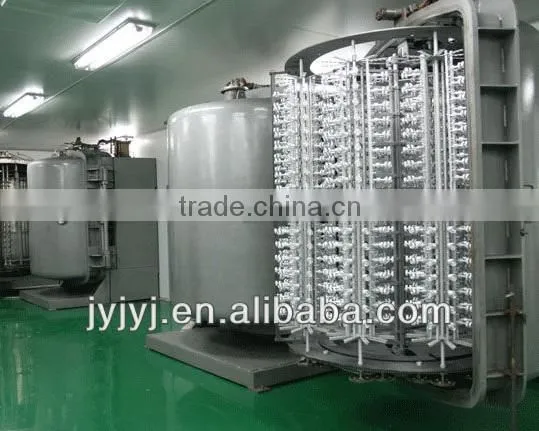

Evaporation vacuum coating machine
The equipment adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.
Characteristic: reasonable structure, even film, good-quality film forming, quick pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability.

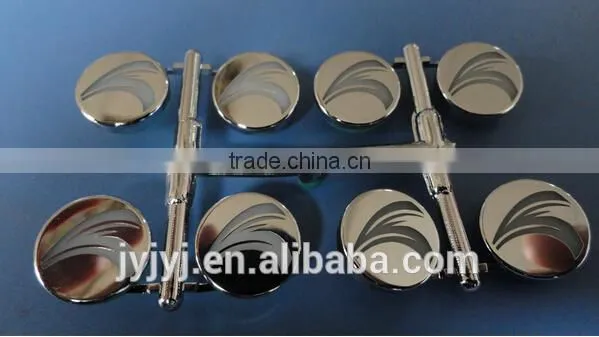

Applied industry: Widely used in automotive, audio and various small appliances, computers, clocks and watches, toys, cell phones, reflective Cup, cosmetics, toys, tableware, sanitary ware, shoe heel, ABS, PS, PP, PC, PVC, PET, nylon, metal, Boli, glass, ceramics, TPU, etc.
Electroplating effects: general electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, lampworking, raindrops, seven colors;

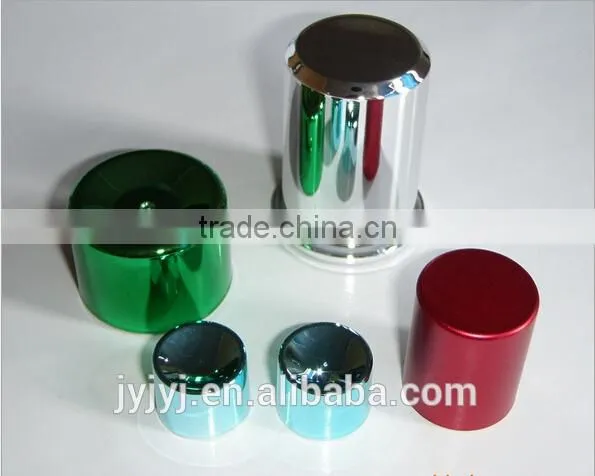

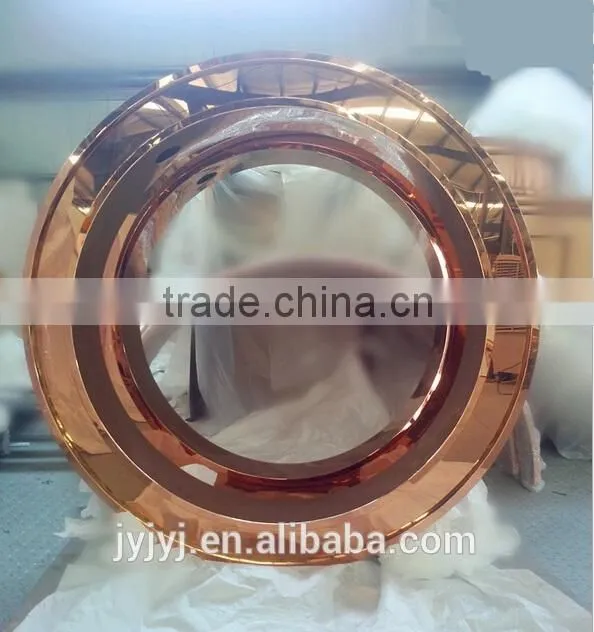

Coating color: gold, silver, red, blue, green, purple, multi color, and so on.
Technical parameter:
|
Mode Dimension |
JYZ-1200 |
JYZ-1400 |
JYZ-1600 |
JYZ-1800 |
1200*1400mm |
1400*1800mm |
1600*1800mm |
1800*2000mm |
Film Type |
Semitransparent film, non-conducting film, gold, silver, red, blue, green, purple, seven color, etc. |
Power source Type |
Thermal evaporation power, ion bombard power, RF power |
Vacuum chamber structure |
Vertical double/single door, horizontal single door, pump system postposition |
Ultimate vacuum |
8.0*10-4Pa |
Vacuum system |
Diffusion pump +Roots pump +Mechanical pump +Holding pump |
Pump time |
Pump from atmosphere to 5.0*10-2,6 minutes |
Workpiece motion mode |
Public rotation/Frequency control |
Control mode |
Manual/Automatic all-in-one mode, Touching screen+PLC |
Remark |
We can design the dimension of the vacuum chamber according to customer’s demand. |
We can make design the dimension of the vacuum chamber according to your requirement. We can also design and configure the vacuum unit and electric controlling system according to your requirement.
