JYCW-1200 Jewelry PVD coating machine

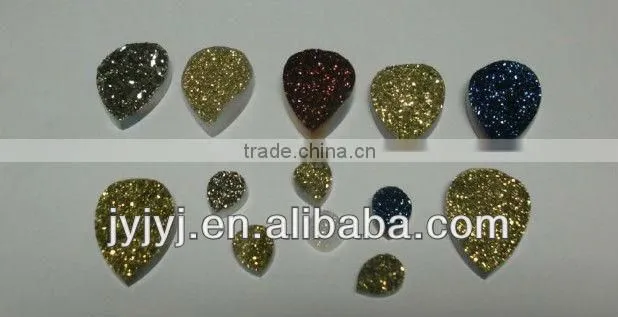

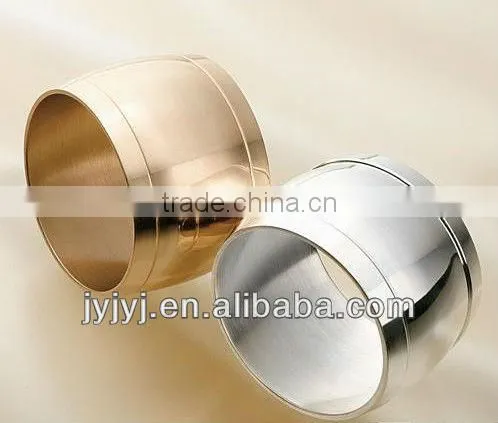

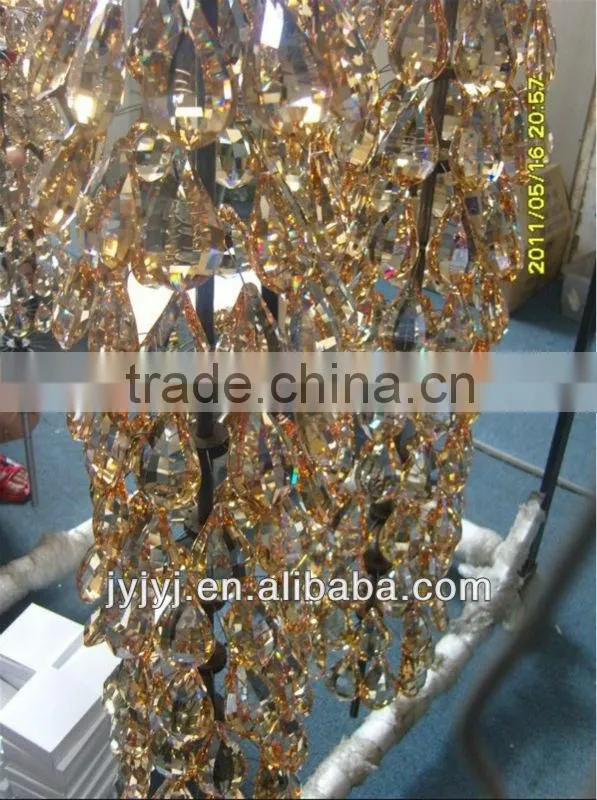

Jewelry PVD coating machine mainly integrate the technology of MF magnetronsputtering and electric arc ion evaporation,combining the ion source and the pulse bias voltage .It is full automation control when coating films. It is widely used in the jewelry, watchband, watchcase,mobile shell,hardware,tableware,etc. It can coat TiN,TiC,TiCNTiAIN,CrN,Cu,Au,Al2O3 and other decorative films
|
Mode Dimension |
JYCW-900 |
JYCw -1100 |
JYCW -1300 |
JYCW -1600 |
Φ900x1000mm |
Φ1000x1200mm |
Φ1300x1500 mm |
Φ1600x2000 mm |
|
|
Coating mode and main confirguration |
3 electric-arc+2 pairs of plane rectangular cathode |
6 electric-arc+2 pairs of cylindrical cathode+a pairs of plane rectangular cathode |
5 electric-arc+4 pairs of cylindrical cathode+a pairs of plane rectangular cathode |
6 electric-arc+8 pairs of cylindrical cathode+a pairs of plane rectangular cathode |
Application |
metal decorative coating |
|||
Film Types |
Metal films,Dielectric films,Compound films,Reaction films,Muti-layer function films |
|||
Power source |
Electric arc power supply,DC magnetron power supply,MF magnetron power supply.Pulse bias voltage power supply.ion source power supply. |
|||
Process gas control |
Quality flowmeter + electromagnetism ceramic valve |
|||
Vacuum chamber structure |
Vertical single(side) door, pump system postposition, double water-cooling |
|||
Vacuum system |
Molecule pump(diffusion pump)+Roots pump +Mechanical pump (8.0*10-4Pa) |
|||
Pumping speed |
Pumping time less than 15 minutes ,from atmospheric pressure to 310 -3 Pa |
|||
Workpiece baking temperature |
Normal temperature to 350 centi-degree PID control, radiation heating. |
|||
Workpiece motion mode |
Public rotation Frequency control: 0-20 rotation per minute |
|||
Measure mode |
Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa |
|||
Control mode |
Full automation control system PC+PLC/PC+HMI |
|||
Remark |
We can design the dimension of the equipment according to customers special technique requirement. |
|||
