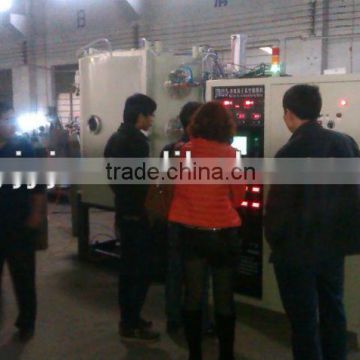

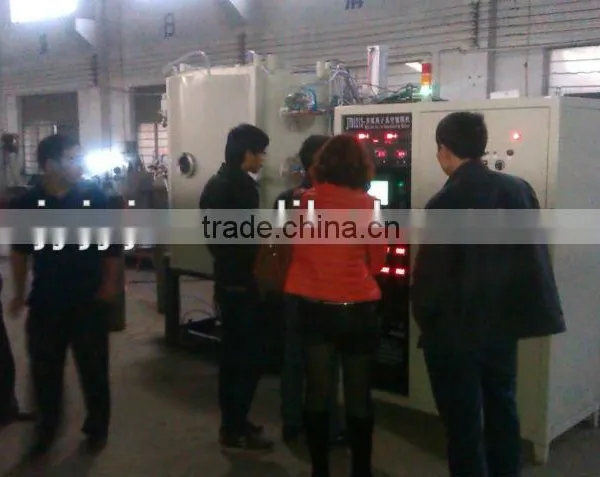

Stainless steel PVD coating machine

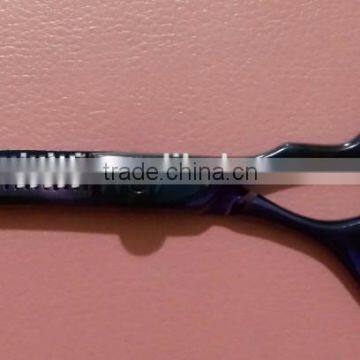

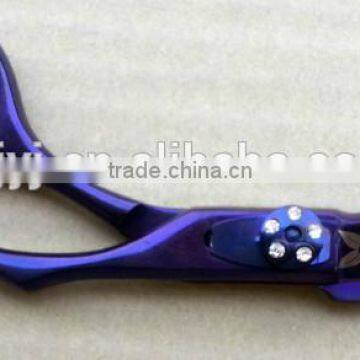

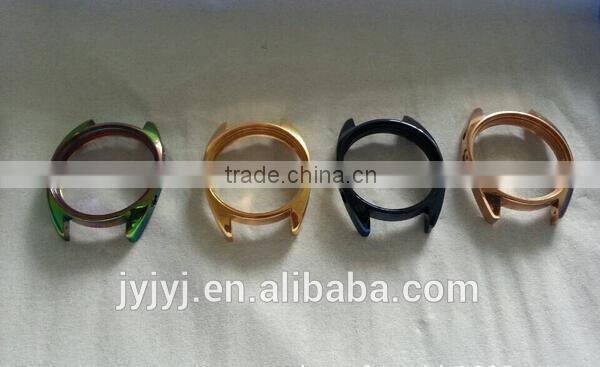

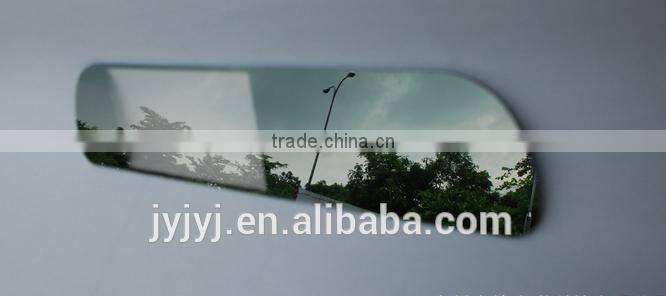

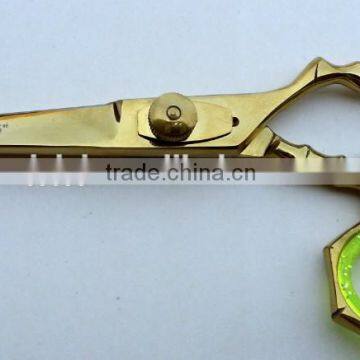

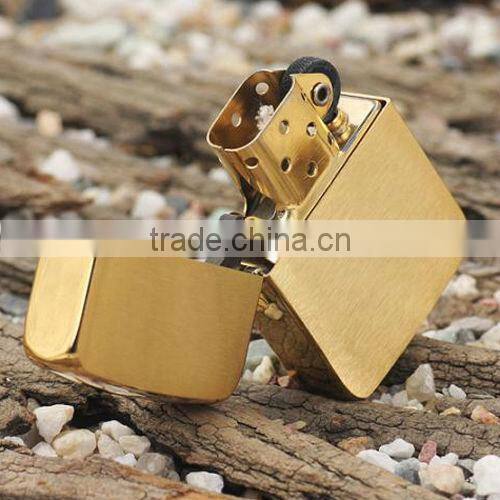

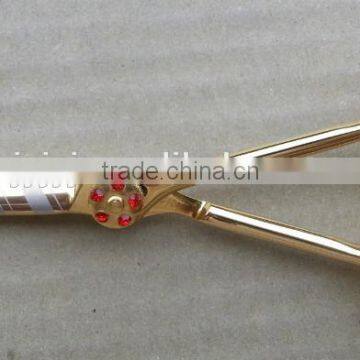

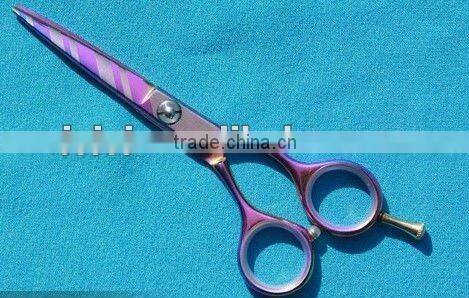

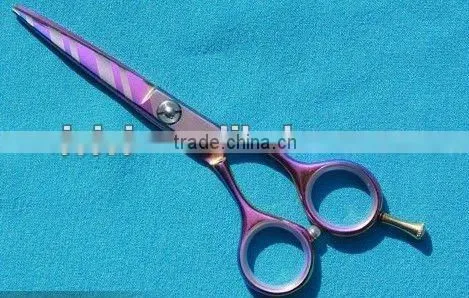

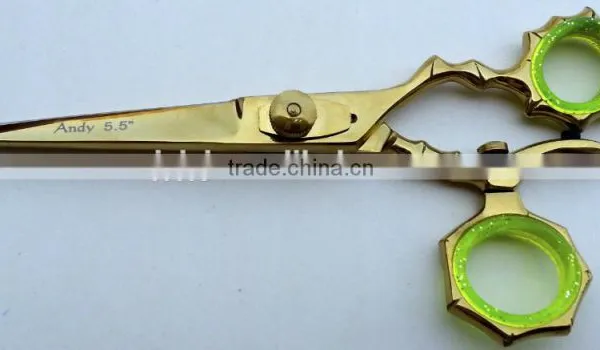

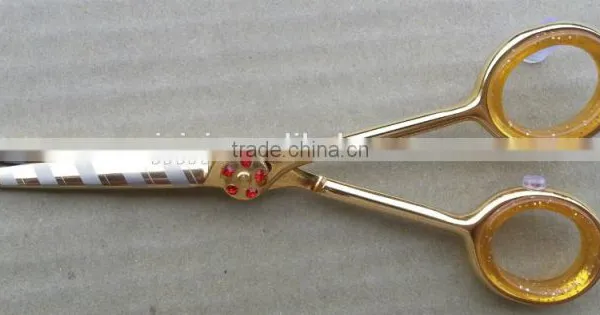

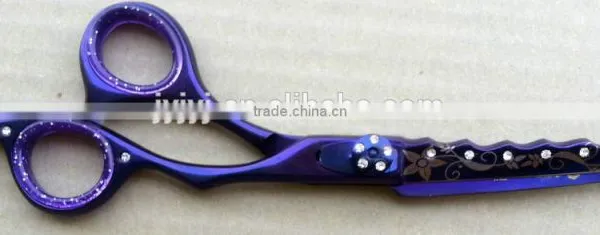

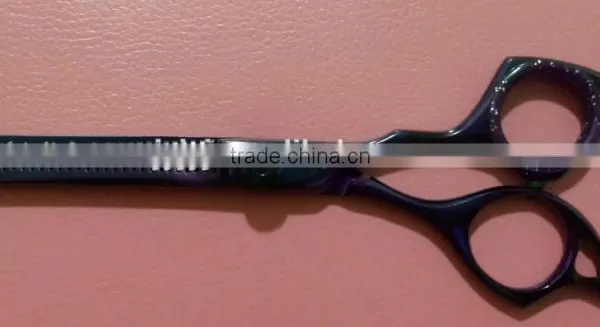

TiN,TiC,ZrN,CrN,Ti,Ni,Cr,Cu and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment. It is widely used in the fields of ultra-hard coating about the tools and mould, decorative coating about car wheels, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc .
|
Mode Dimension |
HAWK-800 |
HAWK-1100 |
HAWK-1250 |
HAWK-1600 |
HAWK-1800 |
800*1000mm |
1100*1000mm |
1250*1500mm |
1600*1800mm |
1800*1800mm |
|
Maily application |
Metal decorative coating and Ceramic decorative coating |
||||
Coating mode and main confirguration |
Eight multi-arc targets |
Ten multi-arc targets |
Twelve multi-arc targets |
Twenty multi-arc targets |
Twenty two multi-arc targets |
Power source |
Electric-arc power, Filament power, |
||||
Process gas control |
Mass flowmeter + Electromagnetic ceramic valve |
||||
Vacuum chamber structure |
Vertical side opening door, pump system postposition, double water cooling |
||||
Vacuum system |
Molecule pump +Roots pump +Mechanical pump(8.0*10-5Pa) Diffusion pump +Roots pump +Mechanical pump(8.0*10-4Pa) |
||||
Workpiece baking temperature |
Normal temperature to 350 centi-degree PID control, radiation heating. |
||||
Workpiece motion mode |
Public rotation Frequency control: 0-20 rotation per minute |
||||
Measure mode |
Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa |
||||
Control mode |
Manual/Automatic/PC/PLC + HMI/PC four choice of control mode |
||||
Remark |
We can design the dimension of the equipment according to customers special technique requirement. |
||||
Parameters:
| 1. Ultimate vacuum degree | 7 × 10-4Pa (new equipment, no-load, cold). |
| 2. pressure maintaining | Ultimate vacuum to 0.5 Pa, not less than 1 hour |
| 3. Duty cycle | From the atmosphere to be able to get 6.8 × 10-3Pa ≤15min |
Warranty:
1. Warranty: 1 years.
During the warranty period, Normal damage will free parts and service,
(Except wearing parts); Improper operation damage need materials cost charged
2. Installation: Free in china, or trip cost charge by customers for local installation,
3. Free training: 2 operators 1 maintenance worker
(Operators can work independently and the maintenance worker can do regular maintenance).
