Shoe heel vacuum coating machine

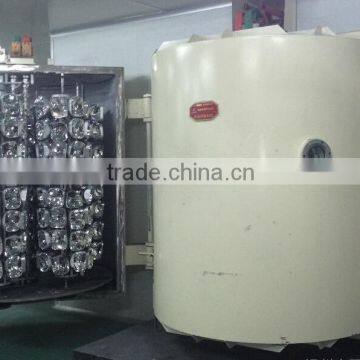

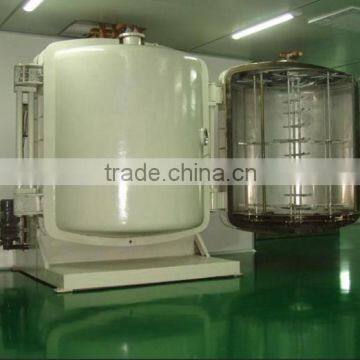

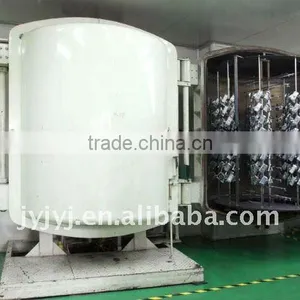

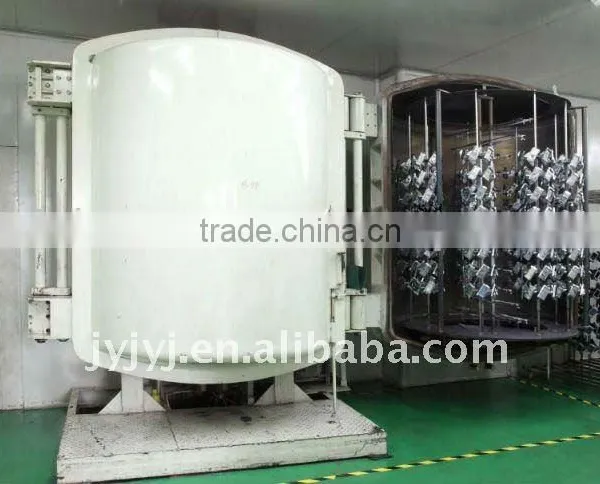

The equipment adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.
Characteristic: reasonable structure, even film, good-quality film forming, quick pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability.

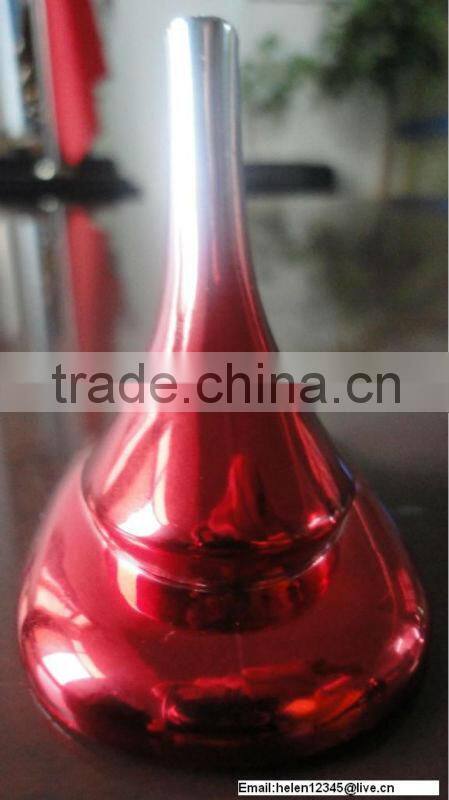

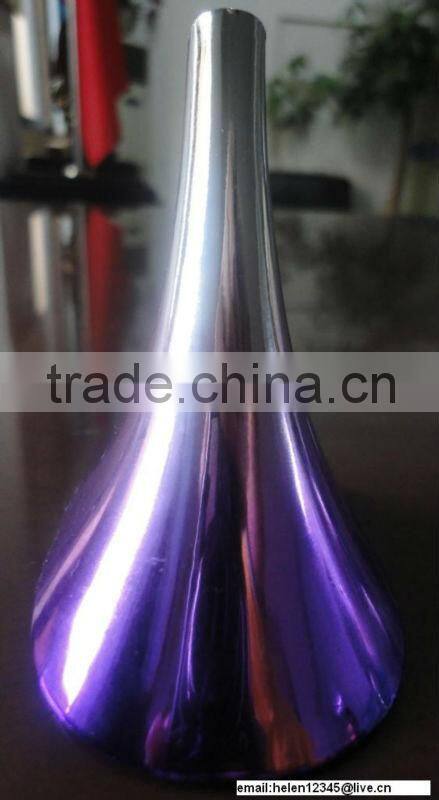

Applied industry: Widely used in automotive, audio and various small appliances, computers, clocks and watches, toys, cell phones, reflective Cup, cosmetics, toys, tableware, sanitary ware, shoe heel, ABS, PS, PP, PC, PVC, PET, nylon, metal, Boli, glass, ceramics, TPU, etc.
Electroplating effects: general electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, lampworking, raindrops, seven colors;
Coating color: gold, silver, red, blue, green, purple, multi color, and so on.
We can make design the dimension of the vacuum chamber according to your requirement. We can also design and configure the vacuum unit and electric controlling system according to your requirement.
|
Serial number |
Name |
specifications |
qty |
unit |
|||
1 |
Pump system |
H-150 mechanical pump (zhejiang) |
1 |
set |
|||
2 X-15 maintain pump (outdoor) |
1 |
set |
|||||
ZJY-600 roots pump (Shanghai) |
1 |
set |
|||||
KT-800 diffusion pump |
1 |
set |
|||||
2 |

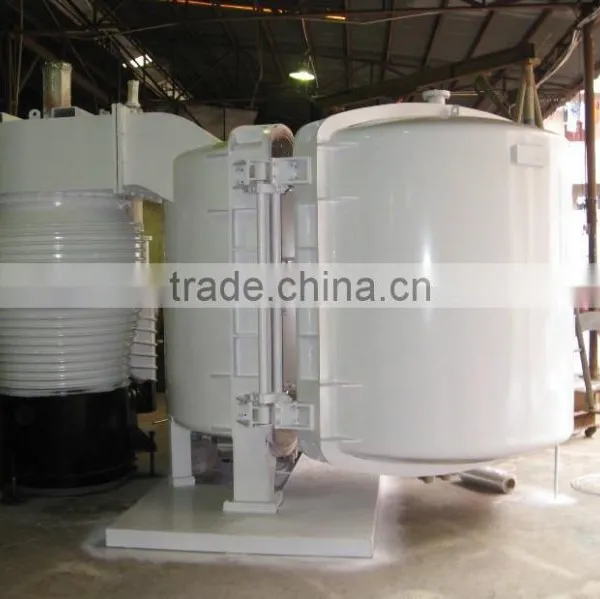

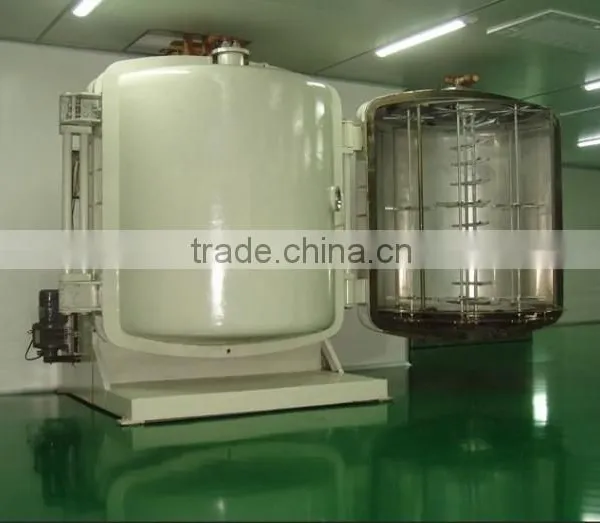

Vacuum Chamber
|
1400 mm * 1600 mm |
1500mm* 1800mm |
1600mm* 1800mm |
1800mm* 2000mm |
1 |
set |
using Q235 carton steel materials , turn frame 2 sets, match a watch window | |||||||
3 |
Valve line |
Pipeline as stainless steel materials, vacuum valve for carbon steel. |
1 |
set |
|||
4 |

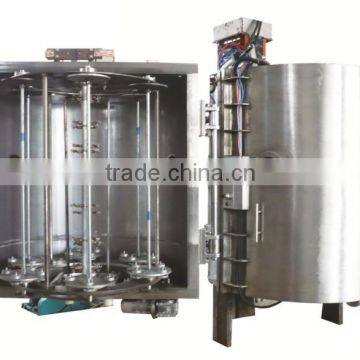

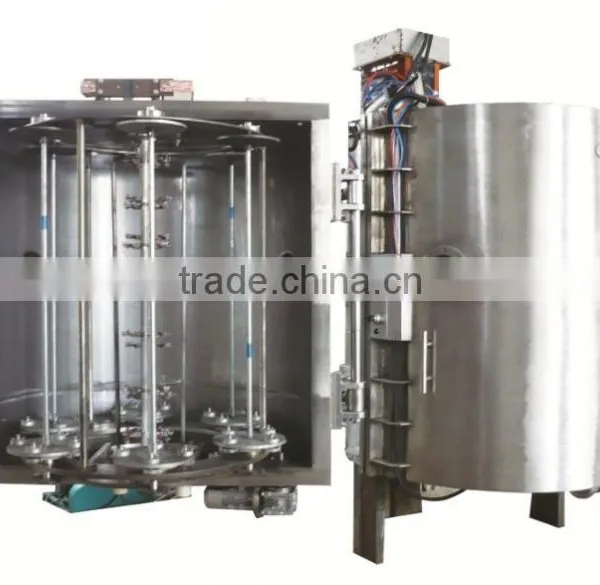

Workpiece rotate system
|
1, steamed plating rotating way: common rotation type 2 groups. 2, common rotation type of effective size: Phi 600 x 1700 mm (diameter × length) 6 axis 3, and turn to drive the motor power: 0.75 KW one. (variable frequency speed regulation) |
1 |
set |
|||
5 |
Measurement control instrument
|
HY-9940-B composite vacuum measuring instrument |
1 |
set |
|||
7 |
Electric Control system |
Germany Siemens PLC + kunlun the state 10.4 "hand touch screen automatic control operation. |
1 |
set |
|||
8 |
power |
33KW/12V Evaporation transformer 33 KW / 12 V |
1 |
set |
|||
9 |
Protection function |
Equiped hydraulic pressure loss, gas pressure loss, automatic alarm and interlock function. |
1 |
set |
|||
10 |
spare parts |
The instruction for use, plane installation drawing, circuit connecting diagram, Spare parts list, technical parameters acceptance list |
1 |
set |
|||
