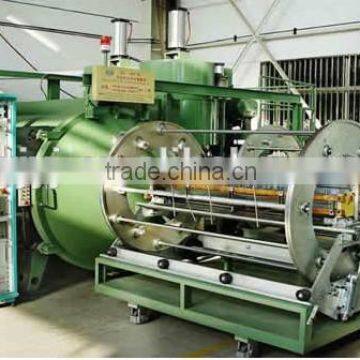

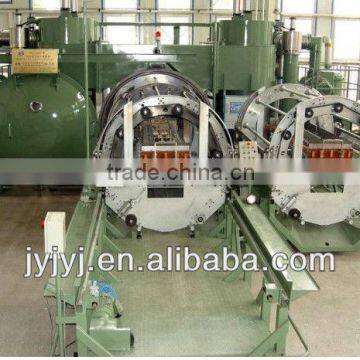

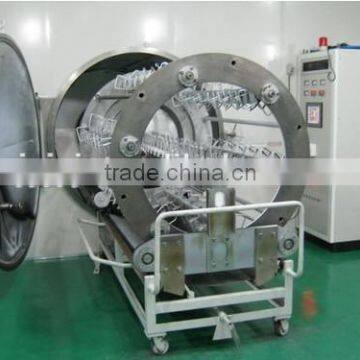

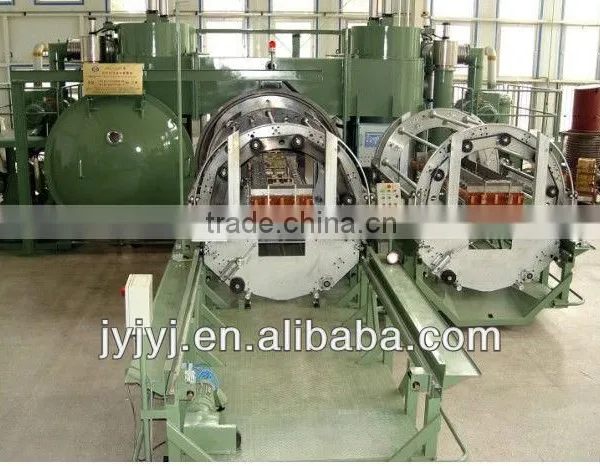

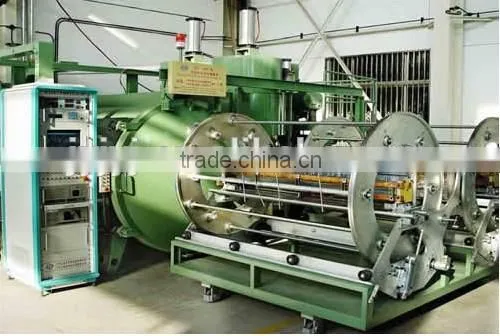

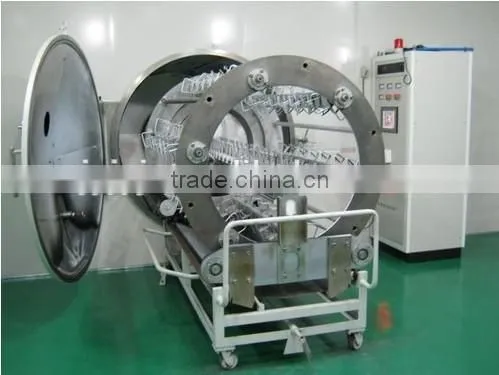

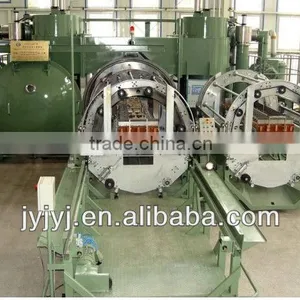

Name: ZZ Series Horizontal Evaporation Coating Machine

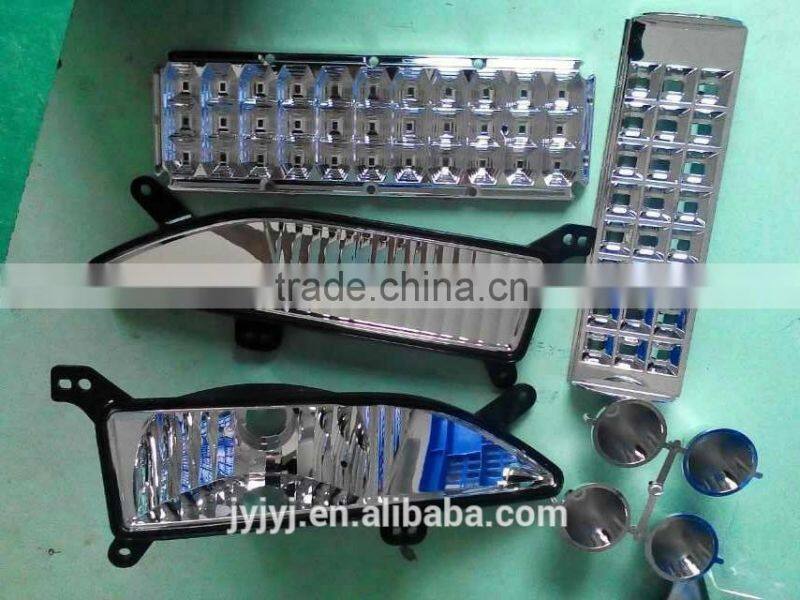

Introduction: ZZ evaporation coating machine is mainly for decorative coating such as silver color or rainbow color on the surface of plastic, ceramic, glass and metal etc... This kind machine is easy to control, no environment pollution.
Main Configuration:
1. The vacuum chamber uses the high quality carbon steel manufacture, the vacuum chamber effective size from φ1200mm to Φ2000mm, length 2000mm;
2. The vacuum system uses oil diffusion pump, Roots pump, mechanical pump;
3. Plating aluminum and plating seven color to be possible to cut freely, may realize the vacuum coating completely automatic control;

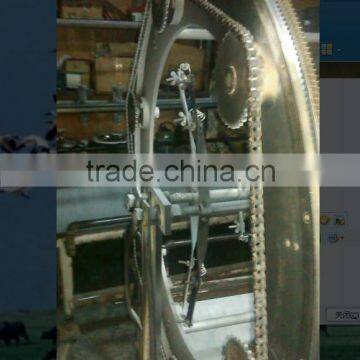

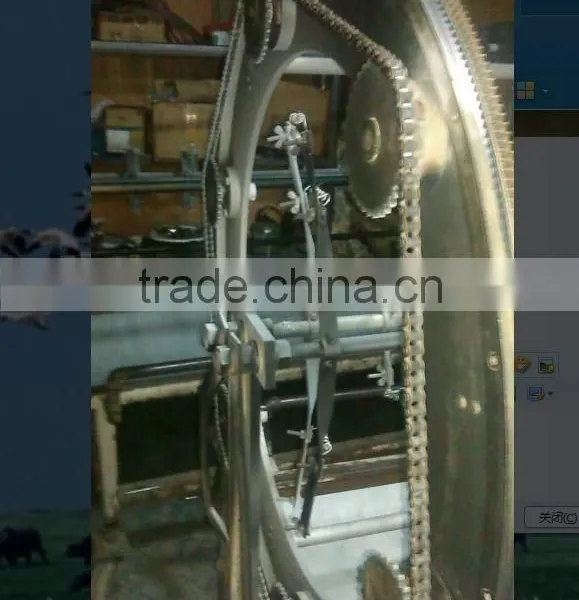

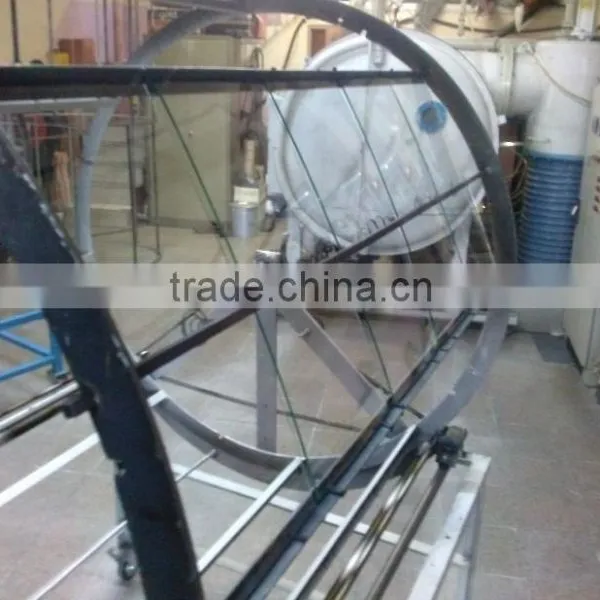

4. Have each two sets of work rests plating aluminum or plating seven color, but arbitrary selection;
5. The PLC+ touch screen control, may realize completely automatic control to vacuum-pumping and coating, automatic recording technological parameter.
Technical Parameters:
Model |
ZZ-1200 |
ZZ-1400 |
ZZ-1600 |
ZZ-1800 |
ZZ-2000 |
Chamber size (mm) |
Φ1200 x 1900 |
Φ1400 x 1900 |
Φ1600 x 2000 |
Φ1800 x 2000 |
Φ2000 x 2000 |
Ultimate vacuum |
3X10-3Pa |
||||
Secondary recovery time |
From 1 X105Pa to 5X10-2Pa≤8min |
||||
Cooling water |
water temperature≤25,pressure: 0.4-0.6Mpa, 2-6T/H |
||||
Total size (m) |
3.2 X 4.2 |
4.2 X 5.2 |
|||
Total weight (Kg) |
4500 |
5000 |
6800 |
7000 |
7600 |
