IPG clocks and watches vacuum coating machine

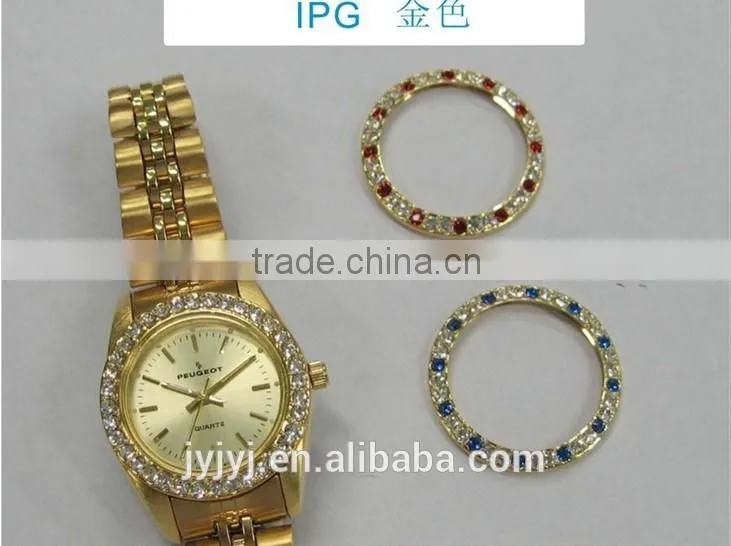

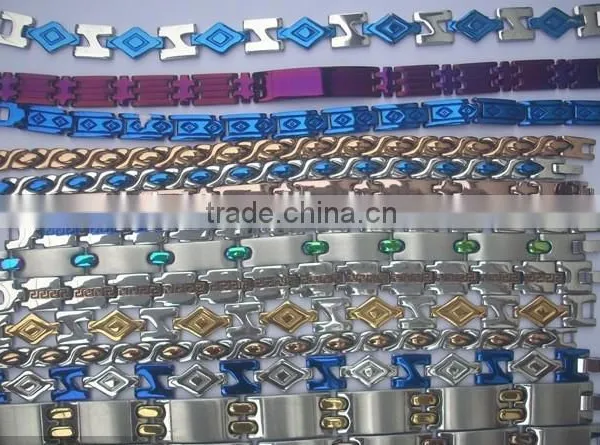

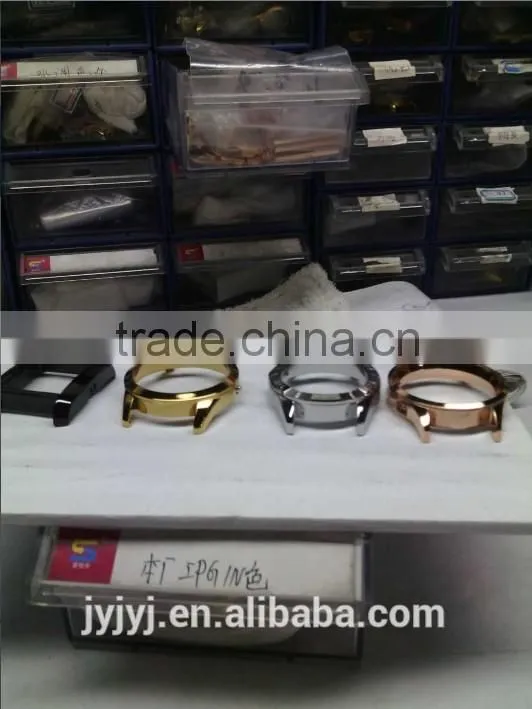

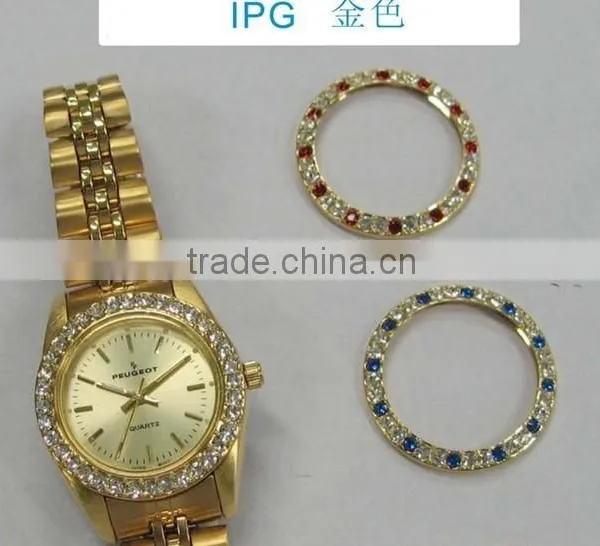

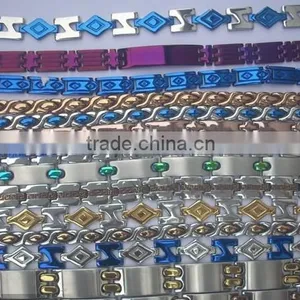

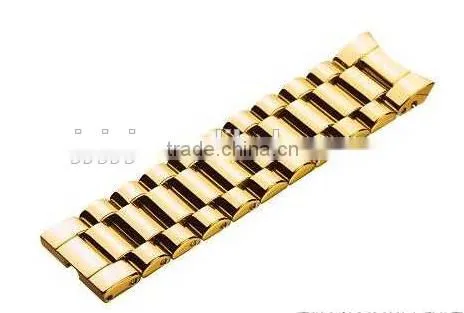

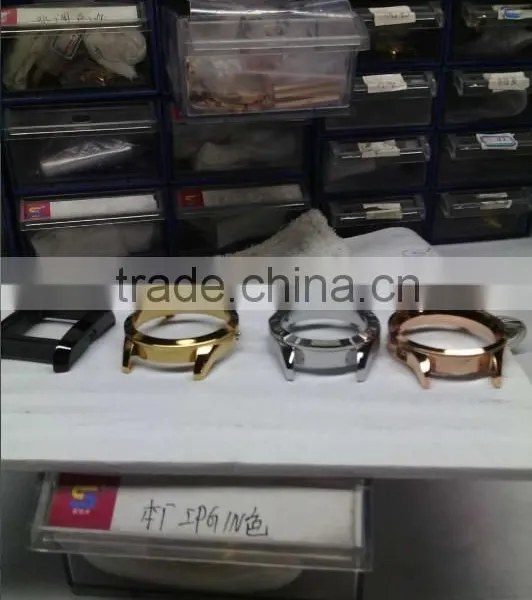

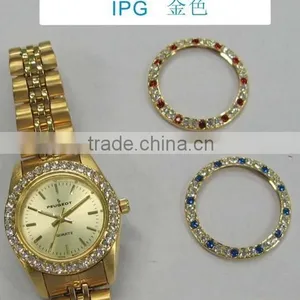

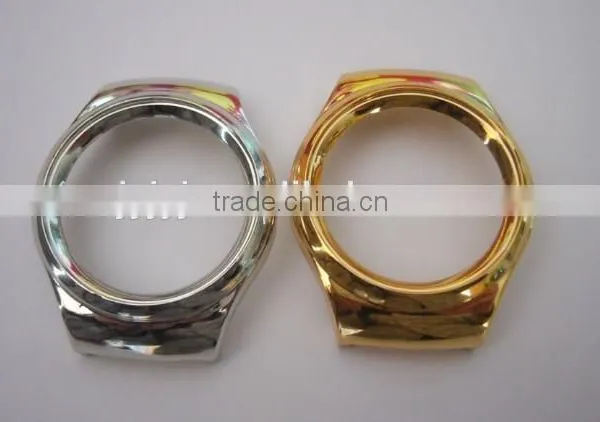

This machine is suitable for plating various hard metallic films and metallic compound films on the surface of metals and alloys, having outstanding film quality, being widely applied to the surface treating area in such industries as high class decoration, watch, glasses, cutting tool and hardware.
Main Features:

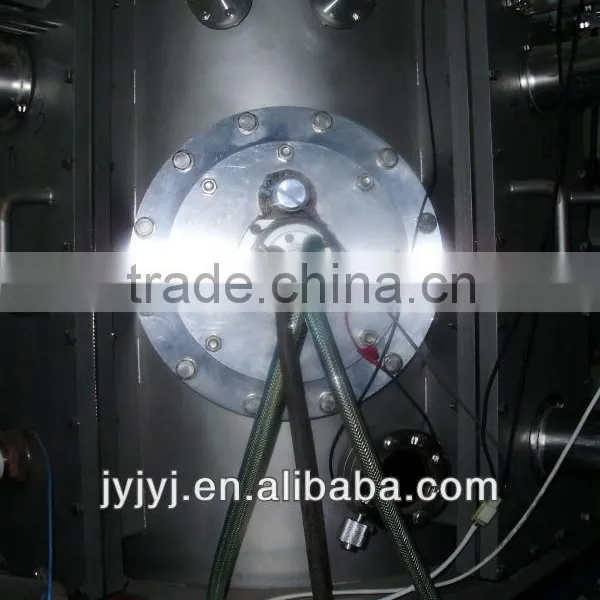

1. The vacuum chamber is a vertical type single door structure made of stainless steel.
2. The vacuum system is composed of a mechanical pump, a Roots pump, and 2-4 homemade high quality molecular pumps or diffusion pump.
3. The metallization system has 3 sets of 20KW medium frequency power supply, being equipped with 3 pairs of targets and a heating arc device, being able to treat the working surface effectively.
4. The target washing device has 3 target washing carriages pneumatically controlled respectively.
5. The vacuum inflating system has a mass flow control instrument and a gas flow display.
6. The electrical control system is equipped with sound and light alarm devices for circuit overload, water cutoff and air cutoff.
7. The control system (touch screen + PLC) displays detailed parameters at real time and controls the entire production process fully automatically under automatic running mode.
Technical Parameters:
Gross weight |
2500kg-3500kg |
Total power |
120KW-150KW |
Suction rate (idling) |
8×10-3Pa≤15min |
Ultimate vacuum (idling) |
≤8×10-4Pa |
Gas leak rate (idling) |
0.67Pa/Hr |
Work piece rotating speed |
≥05r/min |
Baking temperature |
350 |
