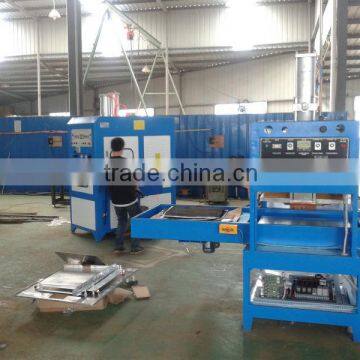

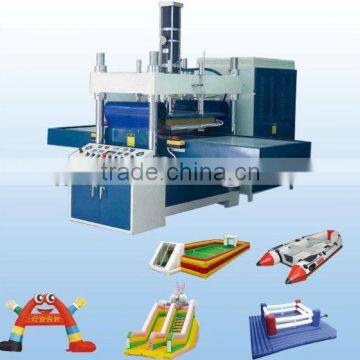

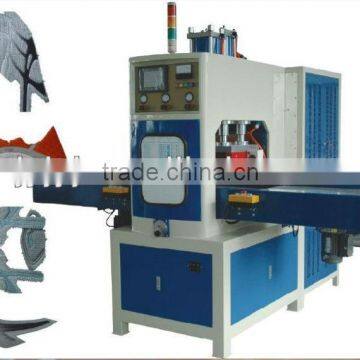

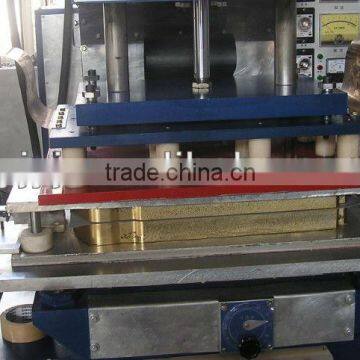

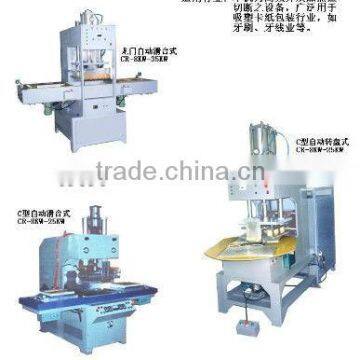

PET Plastic Packaging Automatic High Frequency Synchronization Fusing Machine
US$ 4,000 - 8,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Commodity, Other, Textiles, Apparel, Commodity, Machinery & Hardware, Textiles
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
NingBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Rotation Type High-frequency Fusing MachineUS$ 2,000 - 7,000MOQ: 1 Set -
Two High Frequency Mold Welding Machine/Special Preferential Price, Sincerely Moved World -- to Patronize the New and Old Custom Quality ChoiceUS$ 1,800 - 3,000MOQ: 1 Set
-
Single Head Double Location of High Frequency Welding Machine/Special Preferential Price, Sincerely Moved World -- to PatronizeUS$ 2,000 - 7,000MOQ: 1 Set
-
Hydraulic Type High Frequency Welding MachineUS$ 2,000 - 8,000MOQ: 1 Set
-
High Power High Frequency Plastic Welding Machine/Special Preferential Price, Sincerely Moved World -- to Patronize the New andUS$ 7,958 - 24,050MOQ: 1 Set
Condition
New
Application
Apparel, Commodity, Other, Textiles, Apparel, Commodity, Machinery & Hardware, Textiles
Automatic Grade
Automatic
Driven Type
Electric
Voltage
220-380V
Power
8-15kw
Place of Origin
Zhejiang, China
Brand Name
junying
Model Number
JY-8000D
Dimension(L*W*H)
3*2*2.3M
Weight
1000kg
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
PET Automatic sliding fuse high-frequency welding machine: specialized in all Environment-friendly synthetic leather material,such as PVCPETGAPETEVAPEVAPTUPU,and so on.they can be cut off simultaneously. the machine using a air hydraulic way, except apply to the general fusion of PVC Plastic welding ,it also can be used in all environmental thermoforming mask welding and cutting. it can solve the problem that general high-frequency can not well cutting and welding the PETG / APET environmentally materials. The machine have two different working styles, one is push and pull by hand,the other is automatic sliding.it used widly,it is the most suitable packaging products for export to the EU.the machine guarantee repair one year, maintenance for ever.
Application scope: (Toothbrush packaging)
it can be fused Plastic and cardboard simultaneously, it can be fused a variety of synthetic leather products simultaneously, it can be simultaneously fused motor synthetic leather chairs, sun visor, door handrails,etc, it can be simultaneously fused brilliant paper and Cards, Footwear accessories mats, brands, watch bands, belts, CD bags, cell phone rubs, hot-water bags, PETAPETPETG,etc, like these Environmental shell materials bubble fusion sealed packaging.
main features:
1, automatic motor slide in and out devices;
2,1-36 air pressure, oil pressure device;
3,NL-5557 spark circuit devices;
4, welding and cutting one time is ok, easy to accurate position;
5, leather products, Paper Card, vacuum-Thermoform cutting edge is smooth.
Application:
1,Cardboard, Plastic welding cut off;
2,car leather packing, Hand door, sun visor welding and cutting;
3upper and soles welding cutting.
4, brands, watch bands, leather cup welding and cutting.
Machine Model: JY-8000SKJY-10000SKJY-15000SK
high frequceny Output: 8000W10000W15000W.
Power supply: AC380V3P
Input power: 15KVA18KVA25KVA
Input power: 15KVA18KVA25KVA
Rectifier: silicon Diode SILICONRECTIFIER
oscillator tube7T69RB E30698T85RBE3130
Fire Flower thyratron electron tubeNL5557
Pressurization mannerair oil pressure directly operated type.
Gap of electrodes: 150mm150mm150mm
Top plate size: 400×520400×520600×800
Bottom plate size: 400×600400×600800×900
net weight1.52 2.5
