High quality cnc router 5 axis with CE certification1. Good after-sales service
2. One year guarantee
3. Reasonable price

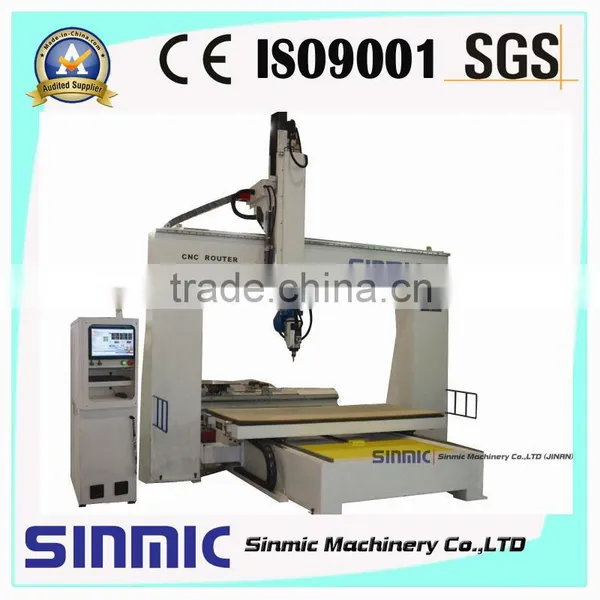

High quality cnc router 5 axis with CE certification
1.Advantages:
♦ The CNC Router machine is specially designed for processing various large metalloid moulds.
♦ It can be used for 5D engraving and cutting foam, epoxy tooling board(machinable able resin board), plastocene.
♦ Z-axis travel can be heightened to 1.2 meters, so it is very suitable for processing large-scale three-dimensional surface.
nfigurations:
- Travelling area for M8 1212: 1720 x 1820 x 750mm
- Travelling area for M8 1224: 1720 x 3040 x 750mm
- Extra heavy duty welded steel frame and gantry for maximum straightness and rigidity
- 7Kw HSD liquid cooled spindle
- 8 position rotary ATC with HSK63F precision tool clamping
- THK lubricated for life linear rails and guide blocks
- Yaskawa digital servo drivers and motors for high power, accuracy and speed
- Osai - PC interfaced Numerical Control System
- Automatic machine lubrication system (option)
- T-Slot/vacuum combination clamping table
- Becker vacuum pump for vacuum clamping fixtures
- MPG XYZAC Hand Wheel for easy origin and work piece setting.
- Tool setting device
- One starter set woodworking tools
- 3 x collets, choice from 1-20mm (imperial available if preferred)
- 1 x HSK 63F Tool Holder included
- Inverter:Taiwanese Delta Inverter 0-18000rpm control
- German Schneider Electronic Spare Parts
- Japanese OMRON limit switches
- Germany LAPP double sheathed, fire retardant and highly flexible towline cable can be bent 300,000 times
- Igus cable chain carrying system
- Optional (recommended) full safety enclosure
- Voltage: 3PH 415V 50HZ
3.Paramters:
| Item | |||
| Model | S/C-1212-5A | S/C-1224-5A | |
| Movement type | Movable table Fixed Gantry | Movable table Fixed Gantry | |
| X working area (MM) | 1220 | 1220 | |
| Y working area (MM) | 1220 | 2440 | |
| Z working area (MM) | 500 | 500 | |
| C travelling | ±220° | ±220° | |
| A travelling | +100°/-40° | +100°/-40° | |
| Vacuum pump | Germany Becker pump 140m3/hr | Germany Becker pump 140m3/hr | |
| Double pendulum head | 7KW Liquid cooled HSD | 7KW Liquid cooled HSD | |
| Range of speeds | 18000 RPM | 18000 RPM | |
| Servo Motor brand | YASKAWA | YASKAWA | |
| Table size (MM) | 1230 x 1220 | 1230 x 2440 | |
| Product fixed form | Vacuum table | Vacuum table | |
| Tool magazine | Round tool magazine (8 positions) | Round tool magazine (8 positions) | |
| Control system | OSAI | OSAI | |
| Machine size | 3100 x 3000 x 2600mm | 3100 x 4200 x 2600 | |
| Total weight | 3500Kg | 3900kg | |
| Total Power(kw) | 18KW | 18KW | |
| Voltage | AC415V/50HZ | AC415V/50HZ | |
| Data Transmission | RJ45 - USB | RJ45 - USB | |
| File exchange | G code | G code | |
| Maximum speed | X Axis | 50m/min | 50m/min |
| Y Axis | 50m/min | 50m/min | |
| Z Axis | 20m/min | 20m/min | |
| C Axis | 20m/min | 20m/min | |
| A Axis | 20m/min | 20m/min | |
| Guarantee time | 12 months | 12 months | |

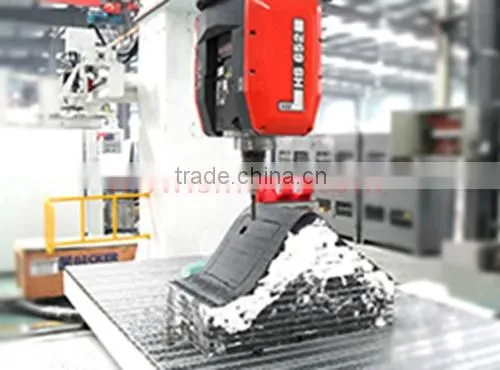

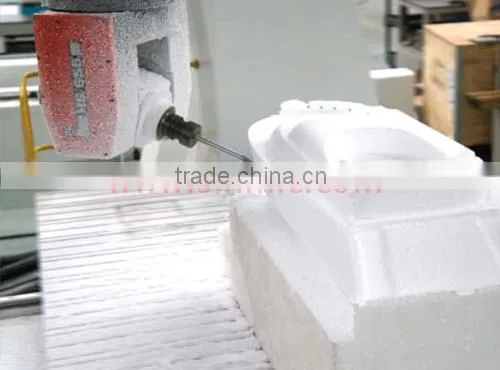

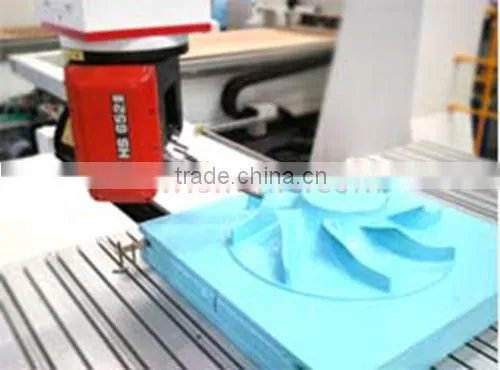

4.Machine details:

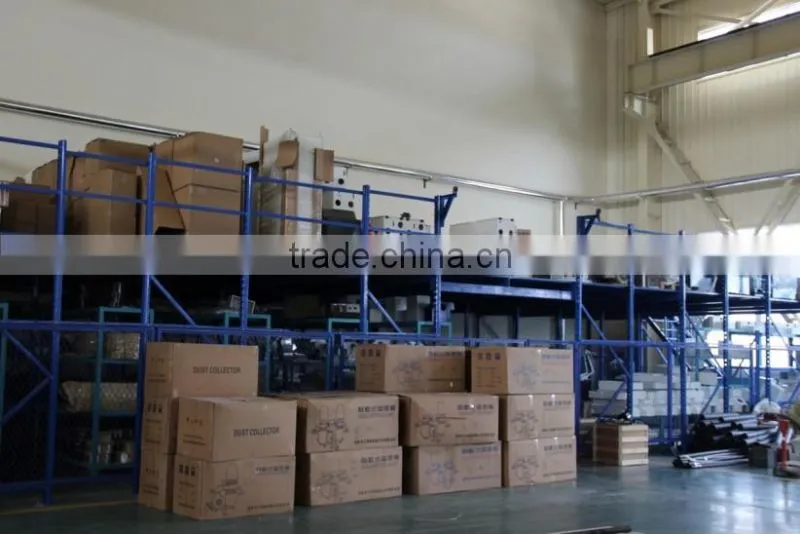

5.Factory show:

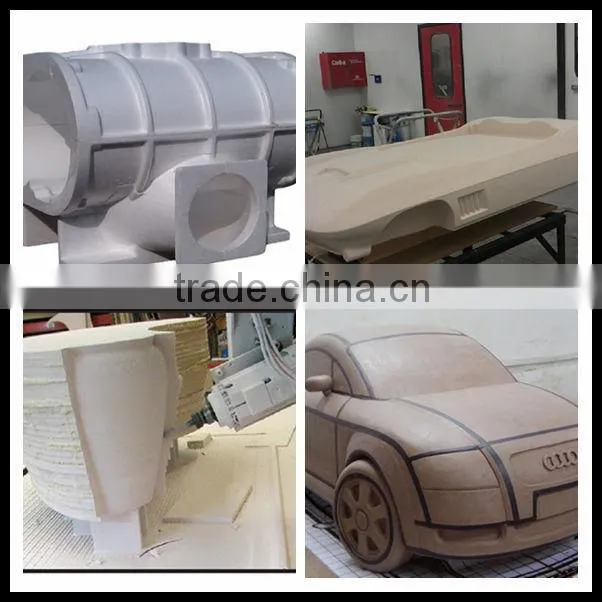

6.Samples:
7.FAQ:
1, How to pay to you ?
T/T inadvance or by ESCROW . We can accept 30% deposit , and balance paid to us before delivery machine to you .
2, How long is the delivery time?
For standard machines, it would be 15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 30 days.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4,How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5, How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading .
8.After-sale service:
1. Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.The machine's warranty is 12 months since the date of comission.
Any questions about our machines, prices,technical support, configurations, please do not hesistate to contact us!
