Specifications
Excellent design cnc router 1325 supplier in China1. Reasonable price with good quality
2. One year guarantee
3. ISO and CE

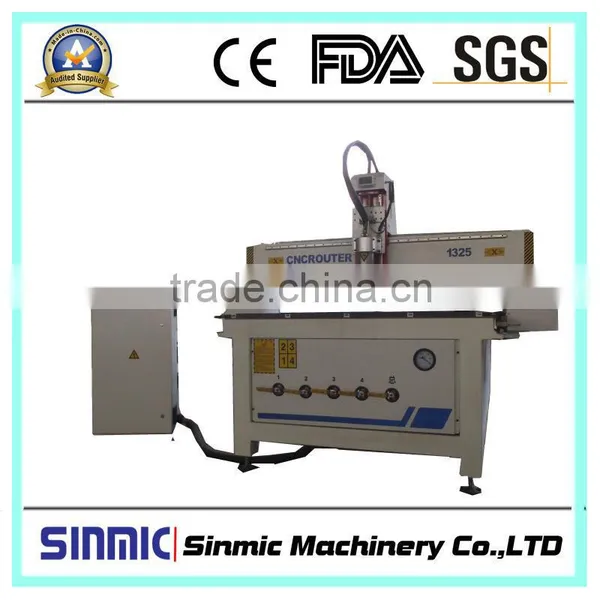

Excellent design cnc router 1325 supplier in China
1.Application:
| Woodworking Industry |
1)wood doors 2)cabinets 3)office furniture 4)speakers 5)musical instruments |
| Panel Processing Industry |
1)insulation 2)plastic and chemical 3)PCB, ABS, PP, PE and other carbon mixture |
| Decoration Industry |
1)Acrylic 2)PVC 3)MDF 4)Plastic 5)Copper, Aluminum and other soft metal, engraving and milling. |
2. Main features:
♦ Big steel tube welded structure, reliable and durable, stable and long-life.
♦ Top-quality components, HSD ATC spindle, Delta inverter, TBI ball screw,
♦Yaskawa servo motors, Syntec control system and so on.Long-time working time, high precision and high efficiency.
♦ Carrousel Tool Magazine system with 8 forks and 4 tool holders , which is loaded with the spindle , make the machine change tools quickly and save time.
♦ Many optional configuration and OEM service available. According to your requirement, different configurations will be offered.
3.Parameters:
| X,Y,Z Working Area: | 1300*2500*300mm | |
| 2 | Table Size: | 1330*3640mm |
| 3 | X,Y,Z Traveling Positioning Accuracy: | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy: | ±0.03 mm |
| 5 | Table Surface: | Vacuum and T-slot combined table(option: T-slot table) |
| 6 | Frame: | Heavy Steel Welded Structure |
| 7 | X,Y Structure: |
Rack and Pinion Drive, Hiwin Rail |
| 8 | Z Structure | Ball Screw, Hiwin Rail |
| 9 | Max. Power Consumption: | 4.5kw(without spindle) |
| 10 | Max. Rapid Travel Rate: | 45,000mm/min |
| 11 | Max. Working Speed: | 30,000mm/min |
| 12 | Spindle Power | 3.0kw |
| 13 | Spindle Speed: | 0-24000 RPM |
| 14 | Drive Motors: | Yaskawa Servo(option:Siemens Servo Motor) |
| 15 | Working Voltage: | AC380V, 50/60Hz, 3PH (Option:220V) |
| 16 | Command Language: | G Code |
| 17 | Operating System: | Syntec Control System(option: Siemens Controller) |
18 |
Computer Interface: | USB |
| 19 | Flash Memory: | 256M (U Disk) |
| 20 | X,Y Resolution: | < 0.01mm |
| 21 | Software Compatibility: | Type3, Ucancam V9(Option: Artcam software) |
| 22 | Running Environment Temperature: | 0°-45° |
| 23 | Relative Humidity: | 30%-75% |

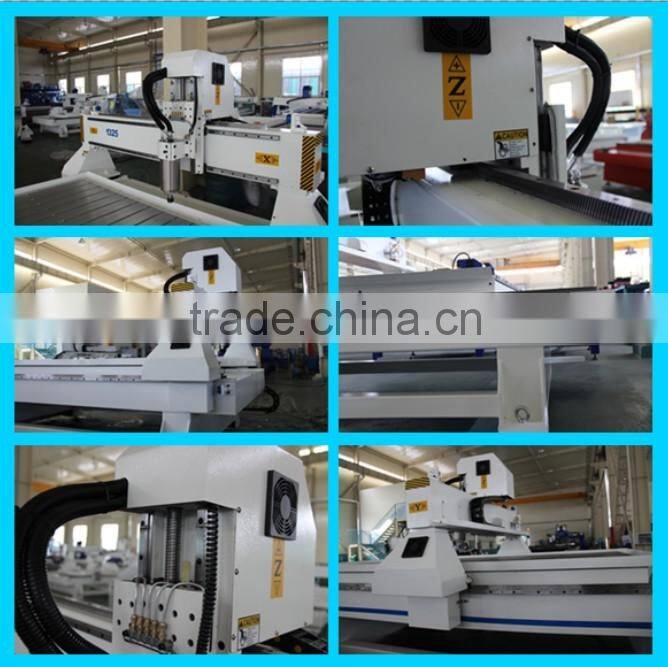

4.Machine details:

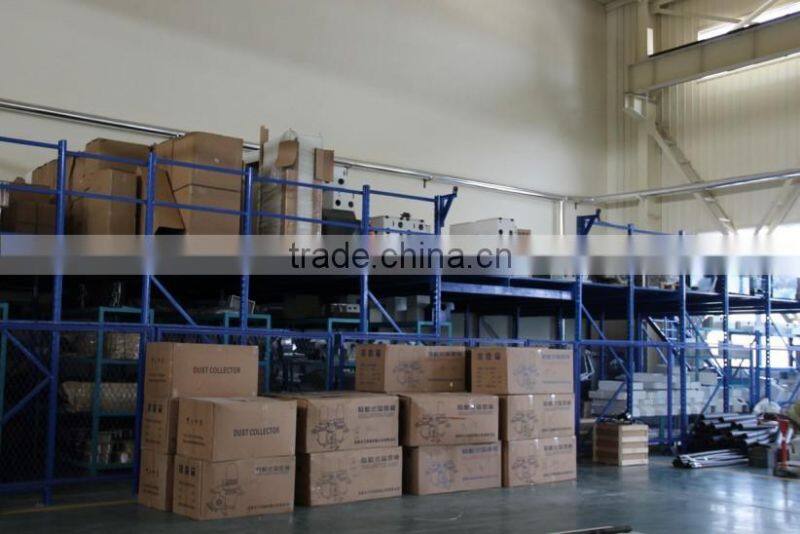

5.Factory & delivery
6.Samples:
7.FAQ:
1, How to pay to you ?
T/T inadvance or by ESCROW . We can accept 30% deposit , and balance paid to us before delivery machine to you .
2, How long is the delivery time?
For standard machines, it would be 15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 30 days.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4,How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5, How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading .
8.After sale service:
1.Technical support by phone, e-mail or MSN around the clock.
2.Friendly English version manual and operation video CD disk.
3.The machine's warranty is 12 months since the date of comission.
Any questions about our machines, prices,technical support, configurations, please do not hesistate to contact us!
We are looking for distributors from all over the world!
