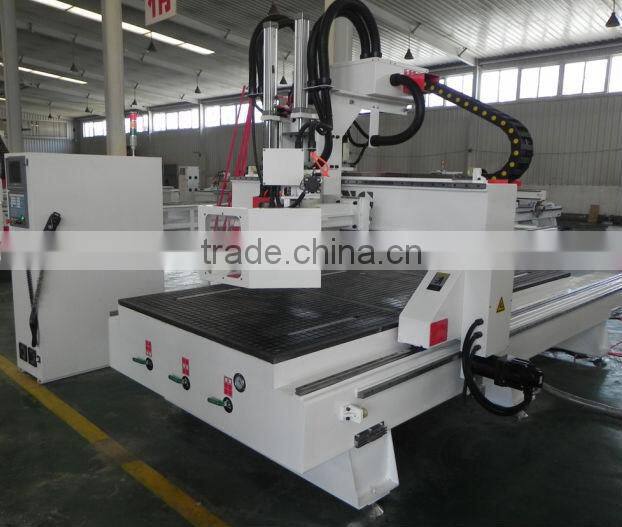

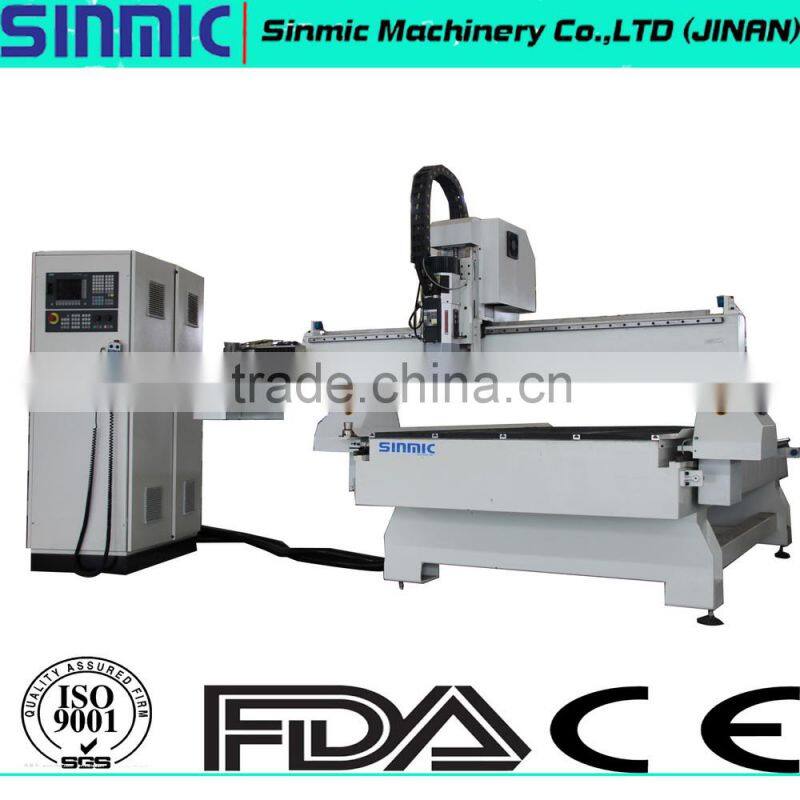

CE certificate ATC CNC Router for Wood Furniture S/C-1325-ATC
Production description:
1) It is used for 2D&3D engraving and cutting hard wood, rosewood, insulation, plastic and
chemical, PCB, PP, PE, PVC, MDF, acrylic, aluminium, brass and so on.

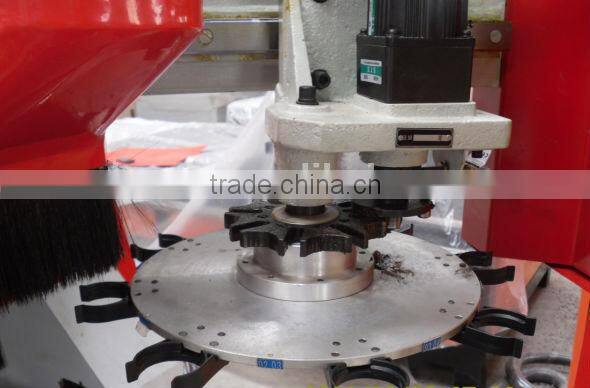

2) It has a Carrousel Tool Magazine System with 8 forks and can change the tools
automatically.
3) It is qualified for mass-producing of funiture with the vacuum holding way and dust collect.
Advantages:
1) Welded structure, so the machine’s body is strong, reliable and durable. It is with large bearing capacity and long working life.
2) Top-quality components, to make the machine hig-precision and high-efficiency. HSD ATC spindle, Delta inverter, TBI ball screw,
Hiwin linear rails,Yaskawa servo motors and drivers, Syntec control system and so on, which keep the machine in best condition even after working for many years.
3) Easy and safe operation. To make you learn quickly how to operate safely the machine, free training in our factory will be offered.
Parameters:
| Number | Description | parameter |
| 1 | X,Y, Z working area | 1300*2500*250mm |
| 2 | Table size | 1330*3640mm |
| 3 | X, Y, Z travel positioning accuracy | ±0.03mm |
| 4 | X,Y, Z repositioning positioning accury | ±0.03mm |
| 5 | Table surface | Vacuum and T-slot combined |
| 6 | Frame | Steel tube structure |
| 7 | Drive system X-Y axis | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | Drive system Z axis | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max power consumption | 4.5kw(without spindle) |
| 10 | Max velocity | 45000mm/min |
| 11 | Max working speed | 30000mm/min |
| 12 | Spindle power | 9kw |
| 13 | Spindle speed | 0-24000rmp |
| 14 | working motor | Servo Yaskawa |
| 15 | Working voltage | AC380V/50/60Hz,3PH |
| 16 | Command language | G code |
| 17 | Interface | USB |
| 18 | Operating system | Syntec control system |
| 19 | Flash memory | 256M |
| 20 | X-Y resolution | 0.03mm |
| 21 | Software | Type3UcancameV9 software (Option: Artcam software) |
| 22 | Running | Temperature:0 degree-45 degree |
| 23 | Paking size | 3750*2250*2100mm |
| 24 | Net weight | 1550KG |
| 25 | Gross weight | 1790KG |

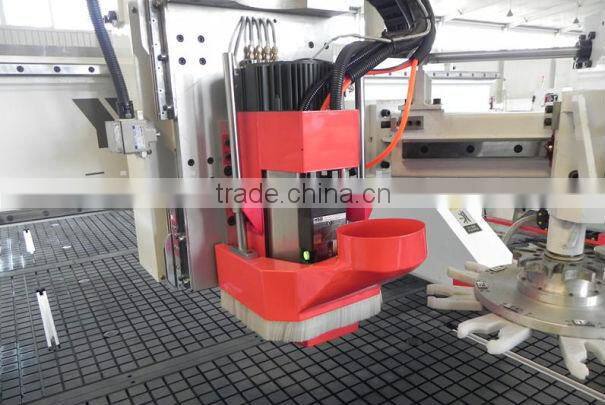

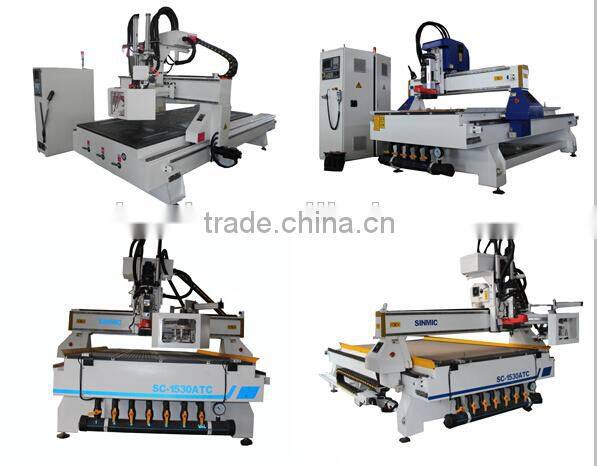

Machine details:
Samples:

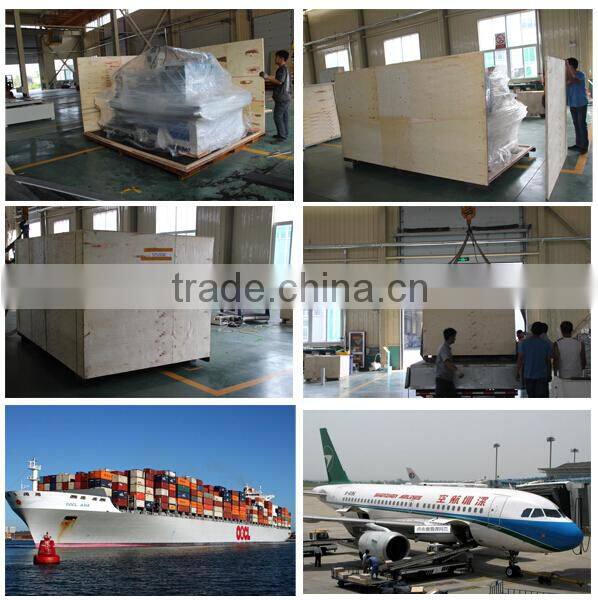

Packing
Use high quality plastic film cover whole machine and accessories to prevent water intrusion, then use strong playwood case hooded together to protect machine well under longer delivery time.
Shipping
Airplane transporation for mini or light products and the country do not have near harbor.
Shipping transportation is main delivery method, especially for Europe, America, Australia.
Land or train transportation for neighoring countries.

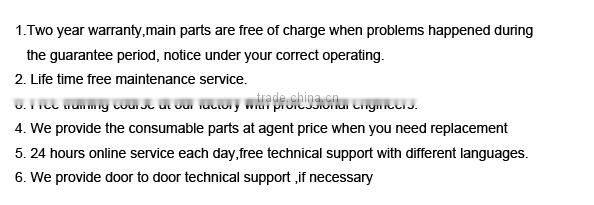

After Sale Service
Sinmic Machinery Co.,Ltd

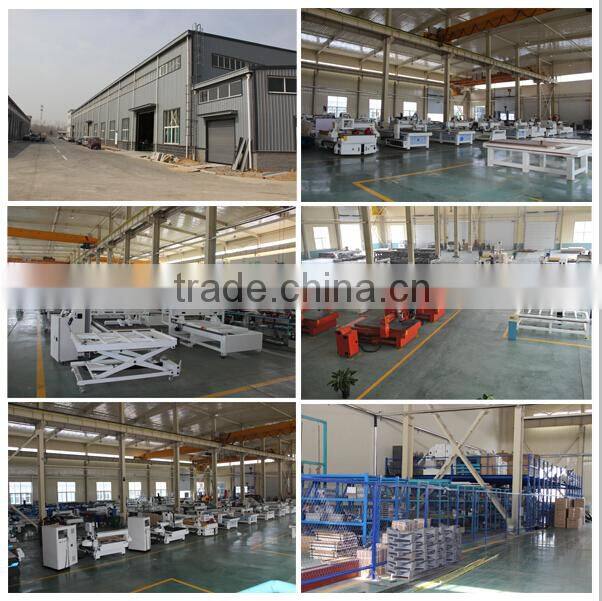

Warehouse
FAQ
1, How to pay to you ?
T/T inadvance or by ESCROW . We can accept 30% deposit , and balance paid to us before delivery machine to you .
2, How long is the delivery time?
For standard machines, it would be 15 days; For non-standard machines and customized machines according to clients
specific requirements, it would be 30 days.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to
arrange shipment by themselves or their agents.
4,How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5, How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading
Other models
Your enquiry are welcomed!!
