Cold Rolling Mill Price, Pilger Mill
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Cold Rolling Mill
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Cold Rolling Mill
Place of Origin
China
Brand Name
Better
Model Number
LD series
Warranty
12 months after shipping
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
cold rolling millLD series
shell OD: 10-330mm
finished OD: 8-320mm

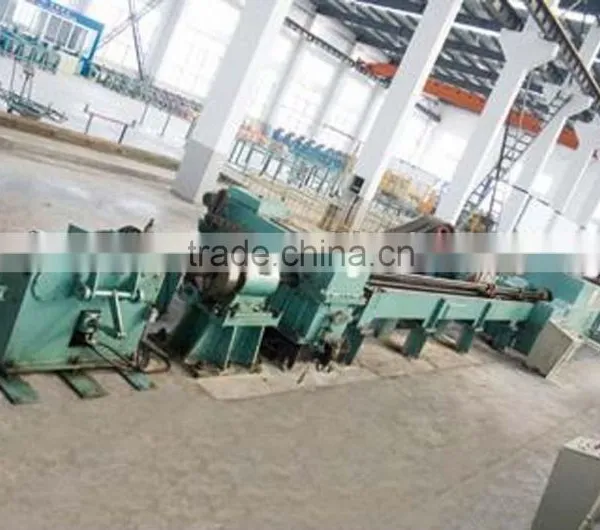

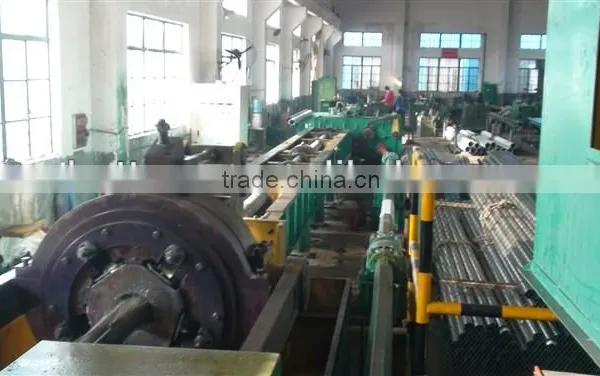

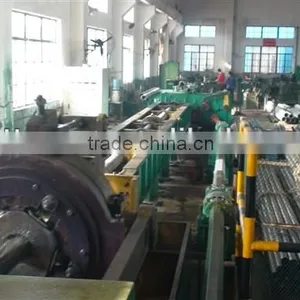

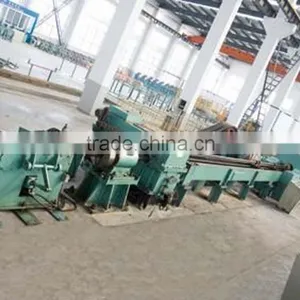

Cold rolling mill
It's also called cold rolling machine, is applied to roll carbon steel, stainless steel, non-ferrous metal, rare metal and alloy steel in cold condition. Its products have been widely used in such industries as metallurgy, automotive industry, bearing manufacturing, oil machinery manufacturing and so on. All of the out purchases that we used are famous brand in our market, which is one of the main reason of our good machine quality. We have various kinds and complete spec. Our machine widely export to countries as India, Iran, Korea etc
I. Main parameter of cold rolling mill
| LD Series Cold Rolling Mill Technical Parameters | |||||||||||
| No. | Model Name | Type and specification of rolling mill | |||||||||
| LD25 | LD-40 | LD40 | LD60 | LD90 | LD120 | LD180 | LD320 | ||||
| 1 | OD of Pipe Blank(mm) | 10-28 | 17-42 | 17-42 | 32-64 | 35-105 | 64-127 | 100-190 | 170-330 | ||
| 2 | WT of Pipe Blank(mm) | <2 | 2.5 | 2.5 | 4 | 10 | 7 | 10 | 3-16 | ||
| 3 | Length of Pipe Blank(m) | 1-4 | 5 | 5 | 5 | 6 | 6.5 | 8 | 8 | ||
| 4 | OD of Pipe Finished(mm) | 8-25 | 15-40 | 15-40 | 30-60 | 30-100 | 60-120 | 90-180 | 160-320 | ||
| 5 | WT of Pipe Finished(mm) | 0.2-1.5 | 0.1-2 | 0.1-2 | 0.2-3.5 | ≤8 | 0.25-6.5 | ≤8 | 2-14 | ||
| 6 | Max. Length of Pipe Finished(m) | <8 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | ||
| 7 | Speed of Frame (time/min) | 60-120 | 65-110 | 65-110 | 40-80 | 40-80 | 40-70 | 40-70 | 15-25 | ||
| 8 | Travel Length of Frame(mm) | 415 | 475 | 475 | 603.1 | 752.46 | 903.5 | 1206 | 1506 | ||
| 9 | Feeding(mm) | 1.65-7.1 | 3-8 | 2-10 | 2.5-8 | 2.4-10.3 | 2-10 | 2.4-10.3 | 2-10 | ||
| 10 | Tuming Angle(degree) | 63° | 54° | 54° | 48° | 35° | 41°50’ | 42° | 35°-48° | ||
| 11 | Form of Turning and Feeding Mechan | Maraging | Hydraulic | Maraging | Hydraulic | Cam | Cam | Cam | Cam | ||
| 12 | Diameter of Roll(mm) | 26,35 | 90 | 90 | 118 | 249,268,286 | 270,286,304 | 411,455 | |||
| 13 | Length of Connecting Rod(mm) | 1300 | 1500 | 1500 | 2000 | 3000 | 3200 | 3600 | 4500 | ||
| 14 | Pitch(mm) | 275 | 234 | 234 | 420 | 240 | 280 | 350 | 350 | ||
| 15 | Power of Main Motor(Kw) | 22 | 37 | 37 | 55 | 160 | 160 | 250 | 320 | ||
| 16 | Dimension(L×W×H) | 19×2×1.3 | 22×3×1.3 | 22×3×1.3 | 28×3.5×2 | 40×4.6×2 | 40×6×2 | 40×6.4×3 | 50×7.5×3 | ||
II. Machining equipments
III.Testing tools
IV. Packing and shipping
More information if you required, please not hesitate to contact us! 0086-13862222117 Joanna
Warmly welcome to visit us!
