Specifications
Cold rolling mill processShell OD:40-105;
Shell WT:2-16;
Finished OD: 30-90;
Finished WT: 1.5-10

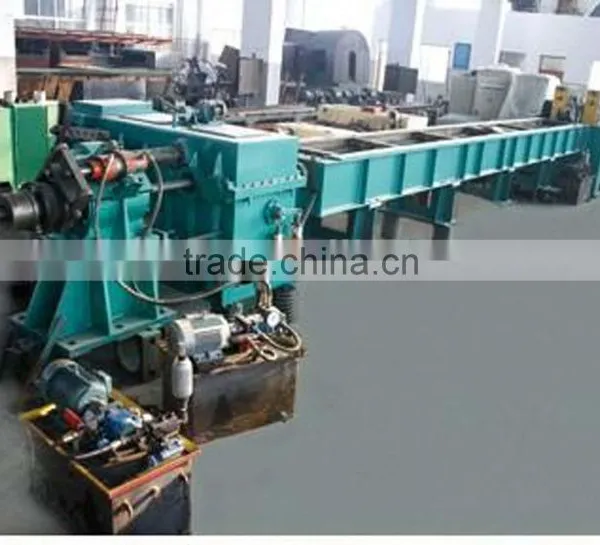

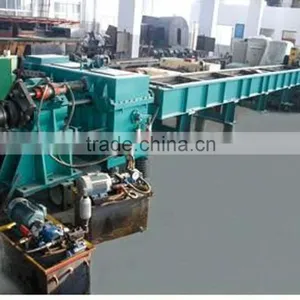

I. Cold Rolling Mill Process
It's also called cold pilger mill, is applied to roll carbon steel, stainless steel, non-ferrous metal, rare metal and alloy steel in cold condition. Its products have been widely used in such industries as metallurgy, automotive industry, bearing manufacturing, oil machinery manufacturing and so on. All of the out purchases that we used are famous brand in our market, which is one of the main reason of our good machine quality. We have various kinds and complete spec. Our machine widely export to countries as India, Iran, Korea etc.
II. Main parameter LG90
|
No. |
Name |
Number |
Unit |
1 |
Shell OD |
40-105 |
mm |
2 |
Shell WT |
2-16 |
mm |
3 |
Shell length |
15 |
m |
4 |
Finished Tube OD |
30-90 |
mm |
5 |
Finished Tube WT |
1.5-10 |
mm |
6 |
Finished Tube Length |
120 |
m |
7 |
Journey length of rolling mill bus |
906 |
mm |
8 |
Journey times of rolling mill bus |
40-67 |
time/ minute |
9 |
Feeding bar length |
4,5,6,8,10 |
mm |
10 |
Connecting bar length |
2200 |
mm |
11 |
Deviation between rolling and brace center line |
250 |
mm |
12 |
Max. rolling force |
130 |
T |

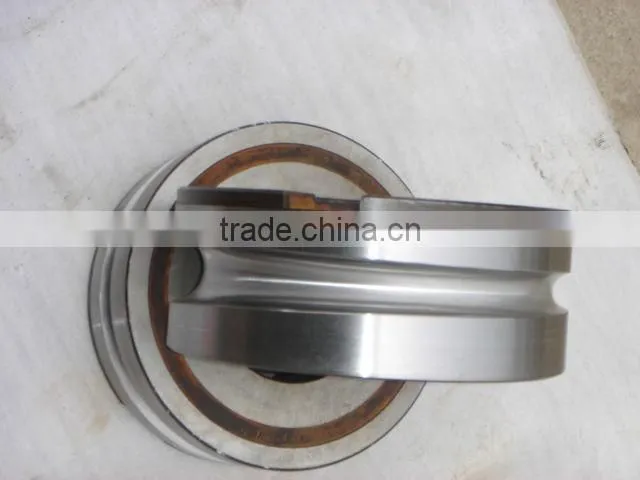

III. Details

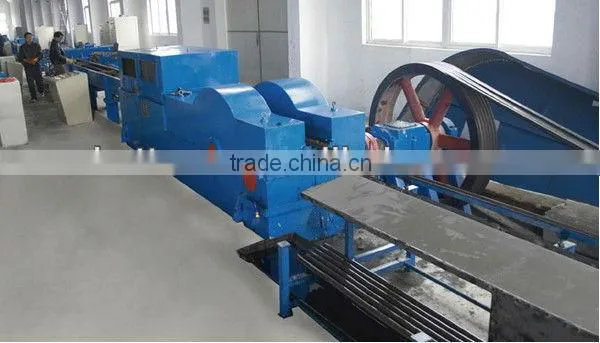

IV. Manufacturing equipments
V. Insepction tools

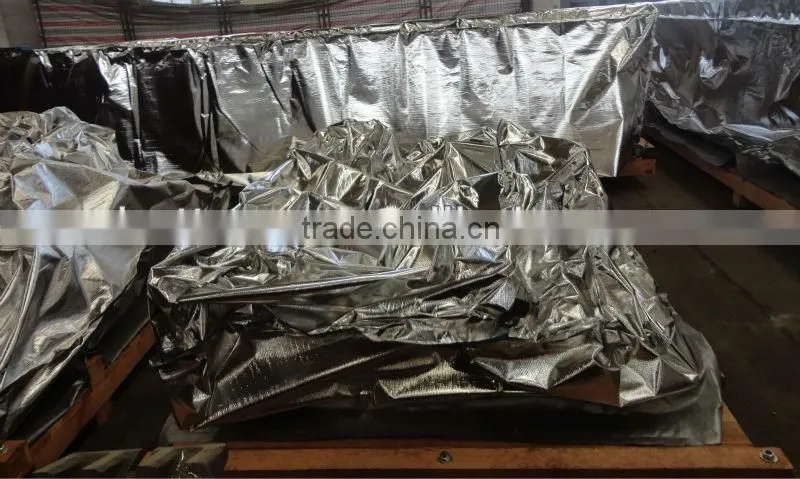

VI. Packing and shipping
