Specifications
0.15mm ctp plate making machine1.32-64channel discrete 830nm laser diode
2.External drum
3.Thermal ctp plate

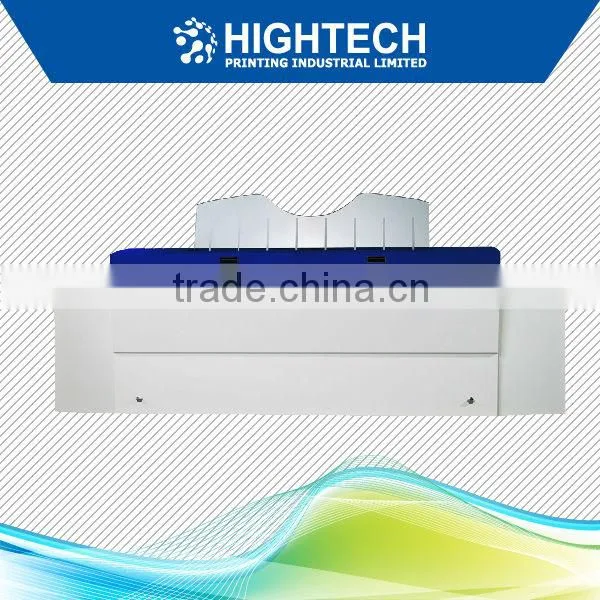

0.15mm ctp plate making machine
Technical Specifications
CTP Ausetter T Specifications | |||||
Model |
Ausetter 800T F |
Ausetter 800T S |
Ausetter 800T E |
Ausetter 400T E |
Ausetter 400T S |
Exposing Method |
External Drum |
||||
Imaging System |
64-channel |
48-channel |
32-channel |
24-channel |
32-channel |
Discrete 830nm laser diode | |||||
Throughput |
29 plates per hour |
22 plates per hour |
16 plates per hour |
16 plates/hour |
22 plates/hour |
1,030mm×800mm 2,400dpi |
800×660mm 2,400dpi |
||||
Plate Size |
Max. 1,130mm×900mm, min.400×300mm |
Max.800×660mm,Min. 400×300mm |
|||
Exposing Size |
Max.1,130mm×884mm, min. 400mm×284mm |
Max.800×646mm |
|||
Media Type |
830nm thermal plate |
||||
Plate Thickness |
0.15mm to 0.3mm |
||||
Resolutions |
2,400dpi |
||||
Repeatability |
Continuous exposing for four times or above on the same plate with a temperature of 23°C and humidity of 60%) |
||||
Interface |
USB2.0 |
||||
Plate Loading |
semi automatic |
||||
Weight |
900KG |
800KG |
|||
Size (W×D×H) |
2,530mm×1,050mm×950mm ( W×D×H ) |
1,900×1,200×1,000mm(W×D×H) |
|||
Power Supply |
single-phase: 220AC, +6%, -10%, Power Consumption: 4KW |
||||
Environment |
recommended: 21-25°C,Max. 18-26°C,humidity: 40-70% |
||||
Use conventional plate
Use conventional plate is the lowest consumable cost at present moment.
Mature and reliable technology of 32-64channel discrete 405nm laser diode
The Ausetter 800 can produce extremely sharp and clear screen dots with the conventional plate ( long running life ).It is completely daylight operation and with a stable working life over several ten thousands hours.So it comes out more cost effective.
External drum design
Using the bend and clamp technology from the printing machines.It turns out good registration and quality dots with an increditable speed up to 29 (1030X800) plate per hour.
Autofocus
Our autofocus feature can keep constant distance between the laser and plate in real time mode. That is can eliminate error arise from any irregular surface of the plate during the plate production in turns can save a lots of material and time.
Unique screen control technology
With our precise dot compensation technology we can generate distinguishable gray scale between 1 to 99 %.
Easy operation
With highspeed USB2.0 interface. Ausetter 800 can easily install and operate like a printer with the plug and play technology.
0.15mm ctp plate making machine
