Specifications
Amsky High Quality Thermal CTP Platesetter1.Mature technology of 24-32channel discrete 830nm laser diode
2.External drum

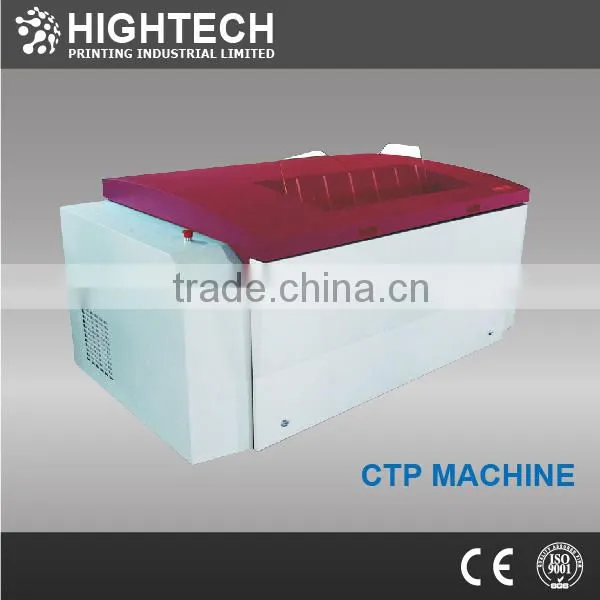

- Amsky High Quality Thermal CTP Platesetter
~ Welcome to our home-High Tech!
~ “High Tech"staff will be ready to provide you top-quality products and betterservice.
1.Product Description
Use conventional plate
Use conventional plate is the lowest consumable cost at present moment.
Mature and reliable technology of 32-64channel discrete 405nm laser diode
The Ausetter 400 can produce extremely sharp and clear screen dots with the conventional plate ( long running life ).It is completely daylight operation and with a stable working life over several ten thousands hours.So it comes out more cost effective.
External drum design
Using the bend and clamp technology from the printing machines.It turns out good registration and quality dots with an increditable speed up to 29 (1030X800) plate per hour.
Autofocus
Our autofocus feature can keep constant distance between the laser and plate in real time mode. That is can eliminate error arise from any irregular surface of the plate during the plate production in turns can save a lots of material and time.
Unique screen control technology
With our precise dot compensation technology we can generate distinguishable gray scale between 1 to 99 %.
Easy operation
With highspeed USB2.0 interface. Ausetter 800 can easily install and operate like a printer with the plug and play technology.
2.Technical Specifications
Amsky Ausetter 400 Series Technical Specifications
CTP Ausetter 400 T Specifications | ||||
Model |
Ausetter 400 U424 |
Ausetter 400 U432 |
Ausetter 400 U448 |
|
Exposing Method |
External Drum |
|||
Imaging System |
24-channel |
32-channel |
48- channel |
|
Discrete 830nm laser diode | ||||
Throughput |
16 plates/hour |
22 plates/hour |
28 plates/hour |
|
800×660mm 2,400dpi | ||||
Plate Size |
Max.800×660mm,Min. 400×300mm |
|||
Exposing Size |
Max.800×646mm |
|||
Media Type |
830nm thermal plate |
|||
Plate Thickness |
0.15mm to 0.3mm |
|||
Resolutions |
2,400dpi |
|||
Repeatability |
Continuous exposing for four times or above on the same plate with a temperature of 23°C and humidity of 60%) |
|||
Interface |
USB2.0 |
|||
Plate Loading |
semi automatic |
|||
Weight |
800KG |
|||
Size (W×D×H) |
1,900×1,200×1,000mm(W×D×H) |
|||
Power Supply |
single-phase: 220AC, +6%, -10%, Power Consumption: 4KW |
|||
Environment |
Recommended: 21-25°C,Max. 18-26°C,humidity: 40-70% |
|||
3.Packaging&Shipping
Packaging Details: Wooden cases, standard export packing suit for sea shipment
Delivery Detail:30days after order confirmed
Nearby Port: TIANJIN XINGANG PORT,CHINA
4.Our service
1.We have more than 5 years' experience in exportation of printing materials.
2.Our market has spread to most provinces and municipalities in our country and also been sold to overseas market like in South America, Southeast Asia, Africa and Mid East etc.
3. Conventional logistic system make the delivery time short.
4.After-sales service provided:engineers available to service machinery overseas.
5. We have a tracking service every month to care about our products, if any problem, we will help you and learn from you together to solve the problem.
Amsky High Quality Thermal CTP Platesetter
