Specifications

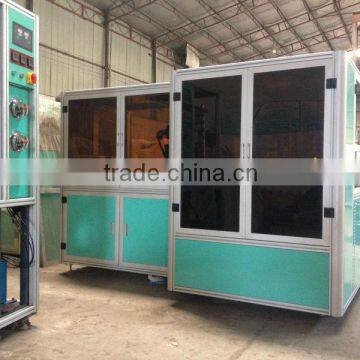

SMCPM-A3C Card Punching Machine, full automatic working without worker. Load sheets, adjust sheet position, punch, collect cardsSMCPM-A3C Full Automatic ID Card Punching Machine, put some hundreds sheet on machine, automatic
load the sheet into punching table by air tool, sensors automatic read the printing mark, automatic feed
sheet for punching and collect the punched cards.
It can be connected with wrapping machine for one line full automaticly.

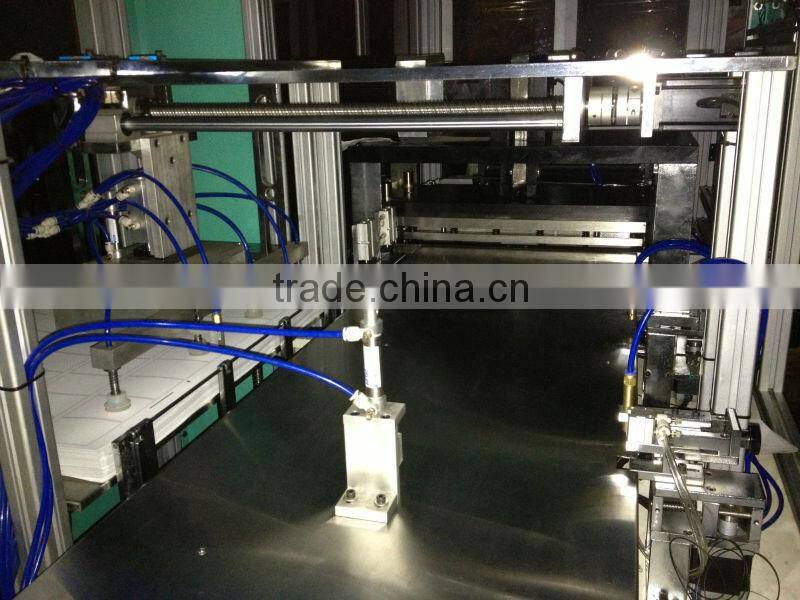

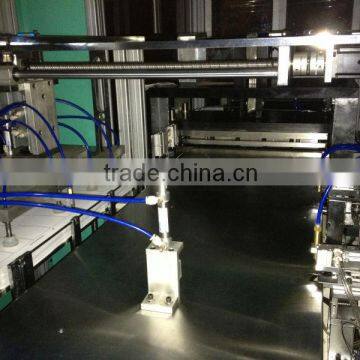

1. High sensitivity optical fiber sensor cooperating imported no-crevice built-in roller screw mandrel to feed
material, the position parameter of the punching spot can be adjusted, with high precision.
2. Use the hydraulic punching head to be the punching motivity, with low noise and stable motivity, the
pressure and punching speed can be adjusted as needed, when the punched cards with different
thickness will have better effect.
3. Advanced card collecting system can send off the cards from different mould and collect the cards
independently, there is no need to detach the punched cards, the cards are collected independently not
to affect the punching speed, the machine can punch the cards quickly and reliably.(especially available
for the material punched to tiers)
4. Controlled by PLC and running automatically, the machine will alarm and halt in case of errors.
Punching Materials: PVC, ABS, PET, PETG, Paper, mixed plastic materials......
Punching Sheet: 3*7, 3*8, 3*9, 3*10, 3*11, 3*12, 4*8, 4*9, 5*5, or other format
5*11 poker 55cards format, 6*9 poker 54cards format, 7*8 poker 56cards format
Voltage Input: 380V 50/60Hz
Power: 8KW
Air Supply: 0.6MPa 6KG/cm2 no water
Punching Thickness: 0.1mm-1.2mm
Punching Efficiency: 18000-39960pcs card per hour
Control Method: PLC , Touch Screen, Servo Motor System
Punching Precision: 0.10mm
Operator: 1 person
Dimension: 1800mm*830mm*1520mm
Net/Gross Weight: 1300KGS/1400KGS
