Specifications

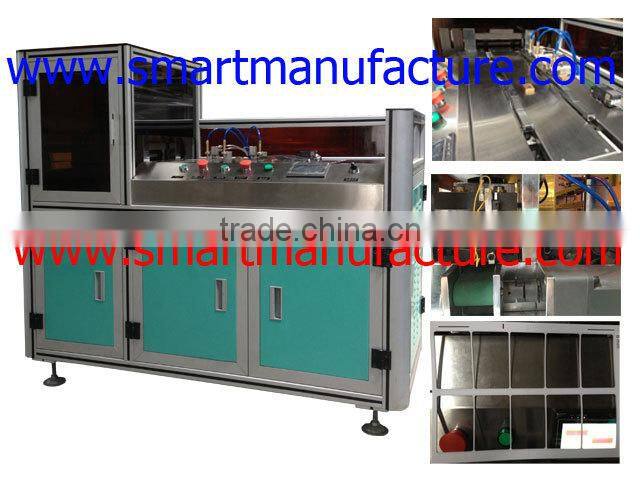

SMCPM-A4A Card Punching Machine, put sheet on machine, automatic adjust sheet position, punching, collect card into card stackerSMCPM-A4A Card Punching Machine, put sheet on machine, automatic load the sheet into punching table by air tool, sensors automatic read the printing mark, automatic feed sheet for punching and collect the punched cards.
It can be connected with wrapping machine for punching cards and wraaping cards into one line automaticly.
High sensitivity optical fiber sensor cooperating imported no-crevice built-in roller screw mandrel to feed material, the position parameter of the punching spot can be adjusted, with high precision.
Use the hydraulic punching head to be the punching motivity, with low noise and stable motivity, the pressure and punching speed can be adjusted as needed, when the punched cards with different thickness will have better effect.
Advanced card collecting system can send off the cards from different mould and collect the cards independently, there is no need to detach the punched cards, the cards are collected independently not to affect the punching speed, the machine can punch the cards quickly and reliably.(especially available for the material punched to tiers)
Controlled by PLC and running automatically, the machine will alarm and halt in case of errors.
| Suitable Material | Plastic and Paper like Teslin, PVC, PET, PETG, ABS and so on |
| Punching Layout | 2*4, 2*5, 3*8, 3*9, 3*7, 4*8, 4*9, 5*5 |

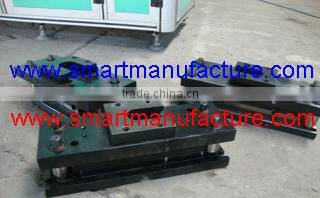

| Punching Die | 2, 3, 4, 5, 6, 7 molds |
| Control Method | PLC and Touch Screen and Servo Motor |
| Cylinder Travel | 18mm |
| Air Source | 0.6Mpa |
| Air Consumption | 100L/minute |
| Power Source | 380V or 220V 50/60Hz |
| Oil Tank | 120L hydraulic oil |
| Work Efficiency | 5100pcs - 30000pcs standard card per hour |
| Dimension | 1360mm*680mm*1300mm |
| Net/Gross Weight | 280KGS/320KGS |
