Help CenterCeramic Sand Rotary Kiln
Related Products
Specifications
Ceramic Sand Rotary Kiln process measurements include:Hot Clinker Detection
Product Discharge Temperature
Prod
Detailed Product Description
At present the production equipment of ceramic sand is industrial rotary kiln. The columnar main kiln body has 2 degree obliquity angle to the level standard and is placed on the carrier roller. The material is sent into the kiln from the high end. As the kiln is doing swivel motion, the material rolls from the high place (kiln end) down to the lower place (kiln hood). Meanwhile in the kiln hood, the nozzle sprays the gas into the kiln to make it blaze fully. The heat produced makes the material change physically and chemically, and the ceramic sand is formed after the material being cooled down.
Common process measurements include:
Hot Clinker Detection
Product Discharge Temperature
Product Entry Temperature
Mid-Zone Temperature
Combustion Gas Temperature
Kiln Shell Hot Spot Detection
Supplying scope:

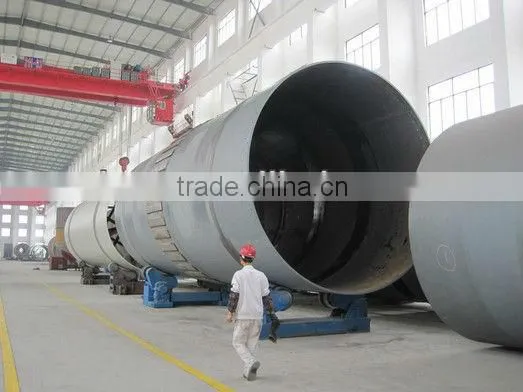

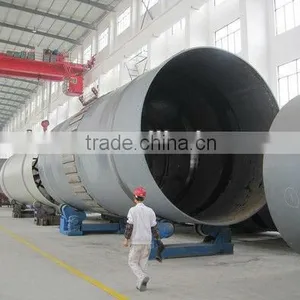

1. shell of rotary kiln
2.tire on the shell
3. Gearwheal.
4. Pinion
5. Motor
6. Reducer
7. Control panel
rotary kiln
| Model | s |
Reducer |
Electrical motor |
Type of thrust roller |
Support Qty |
otal weight (excluding refractory brick)t |
|||||
Main driving (r/min) |
Slope of the kiln shell% |
Capacity(t/h) |
model |
Total ratio |
Model |
powerkw |
Speed regulation ranger/min |
||||
Φ1.9/1.6x36 |
0.53-1.59 |
4 |
2.5-3 |
JZQ750-1 |
48.58 |
JZT-72-4 |
30 |
1200/400 |
|
3 |
53 |
Φ2.1/1.8x36 |
0.5-1.51 |
4 |
4 |
UT2-110 |
163.36 |
JZS-81 |
30/10 |
1410/470 |
.. |
3 |
75 |
Φ1.2x25 |
0.5-1.6 |
3 |
|
PM650 |
40.17 |
JZTY71-4 |
22 |
1200/120 |
.. |
3 |
34 |
Φ1.6x32 |
0.158-0.258 |
3 |
|
PM750 |
48.57 |
JZJY61-4 |
15 |
1200/120 |
.. |
3 |
46.82 |
Φ1.8x45 |
0.66-1.98 |
4 |
3.5 |
UT2-110 |
163.36 |
JZS-81 |
30/10 |
1410/470 |
.. |
3 |
80 |
Φ2.2x50 |
0.125-1.25 |
3.5 |
4 |
ZS145-11 |
157 |
YCT280-4A |
30 |
1320/132 |
.. |
3 |
130.71 |
Φ2.5x50 |
0.516-1.549 |
3.5 |
5.5 |
ZS165-7 |
99.96 |
YCT355-4A |
55 |
1320/440 |
.. |
3 |
167.5 |
Φ3x48 |
0.3309-3.309 |
3.5 |
35 |
ZL130-14 |
32.11 |
ZSN4-250-21B |
90 |
1000/100 |
.. |
3 |
237 |
Φ3.3x52 |
0.391-3.91 |
3.5 |
50 |
ZSY500-28 |
27.707 |
ZSN4-315-082 |
190 |
1000/100 |
.. |
3 |
280.8 |
Φ4x60 |
0.396-3.96 |
3.5 |
104 |
ZSY630-35.5 |
34.601 |
ZSN4-355-092 |
315 |
1000/100 |
|
3 |
487.5 |
