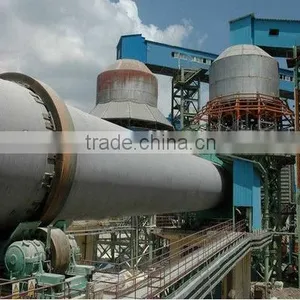

Help CenterHorizontal Lime Rotary Kiln
Related Products
Specifications
horizontal lime rotary kiln common process measurements include:Hot Clinker Detection
Product Discharge Temperature
Lime Rotary Lime Rotary Kiln Technical Features:
1. With advanced structure, the low pressure loss of the vertical preheater can speed up the preheating process, the decomposition rate in the kiln of the preheated limestone can be 20-25%, and can use directly the 10-15mm fine grade limestone.
2.Both ends of rotary kiln is sealed by combination scale, which ensures the index of air leakage less than 10%. In order to lessen the radiation loss, it adopts compound refractory materials
3.Round or square vertical cooler with filling type and ventilated area, which make the lime temperature 800 degree celsius + ambient temperature. It is easy to transport, store, and can be preheated the secondary kiln air to above 700 degree celsius , which reduce the moving parts and special materials
Common process measurements include:
Hot Clinker Detection
Product Discharge Temperature
Product Entry Temperature
Mid-Zone Temperature
Combustion Gas Temperature
Kiln Shell Hot Spot Detection
Supplying scope:
1. shell of rotary kiln
2.tire on the shell
3. Gearwheal.
4. Pinion
5. Motor
6. Reducer
7. Control panel
| horizontal lime rotary kiln |
rotary kiln
| Model | s |
Reducer |
Electrical motor |
Type of thrust roller |
Support Qty |
otal weight (excluding refractory brick)t |
|||||
Main driving (r/min) |
Slope of the kiln shell% |
Capacity(t/h) |
model |
Total ratio |
Model |
powerkw |
Speed regulation ranger/min |
||||
Φ1.9/1.6x36 |
0.53-1.59 |
4 |
2.5-3 |
JZQ750-1 |
48.58 |
JZT-72-4 |
30 |
1200/400 |
|
3 |
53 |
Φ2.1/1.8x36 |
0.5-1.51 |
4 |
4 |
UT2-110 |
163.36 |
JZS-81 |
30/10 |
1410/470 |
.. |
3 |
75 |
Φ1.2x25 |
0.5-1.6 |
3 |
|
PM650 |
40.17 |
JZTY71-4 |
22 |
1200/120 |
.. |
3 |
34 |
Φ1.6x32 |
0.158-0.258 |
3 |
|
PM750 |
48.57 |
JZJY61-4 |
15 |
1200/120 |
.. |
3 |
46.82 |
Φ1.8x45 |
0.66-1.98 |
4 |
3.5 |
UT2-110 |
163.36 |
JZS-81 |
30/10 |
1410/470 |
.. |
3 |
80 |
Φ2.2x50 |
0.125-1.25 |
3.5 |
4 |
ZS145-11 |
157 |
YCT280-4A |
30 |
1320/132 |
.. |
3 |
130.71 |
Φ2.5x50 |
0.516-1.549 |
3.5 |
5.5 |
ZS165-7 |
99.96 |
YCT355-4A |
55 |
1320/440 |
.. |
3 |
167.5 |
Φ3x48 |
0.3309-3.309 |
3.5 |
35 |
ZL130-14 |
32.11 |
ZSN4-250-21B |
90 |
1000/100 |
.. |
3 |
237 |
Φ3.3x52 |
0.391-3.91 |
3.5 |
50 |
ZSY500-28 |
27.707 |
ZSN4-315-082 |
190 |
1000/100 |
.. |
3 |
280.8 |
Φ4x60 |
0.396-3.96 |
3.5 |
104 |
ZSY630-35.5 |
34.601 |
ZSN4-355-092 |
315 |
1000/100 |
|
3 |
487.5 |
