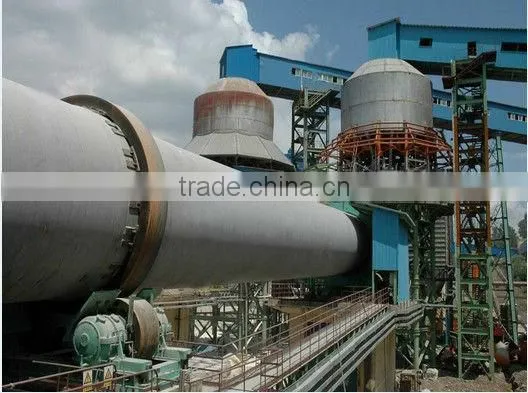

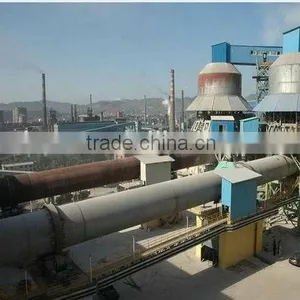

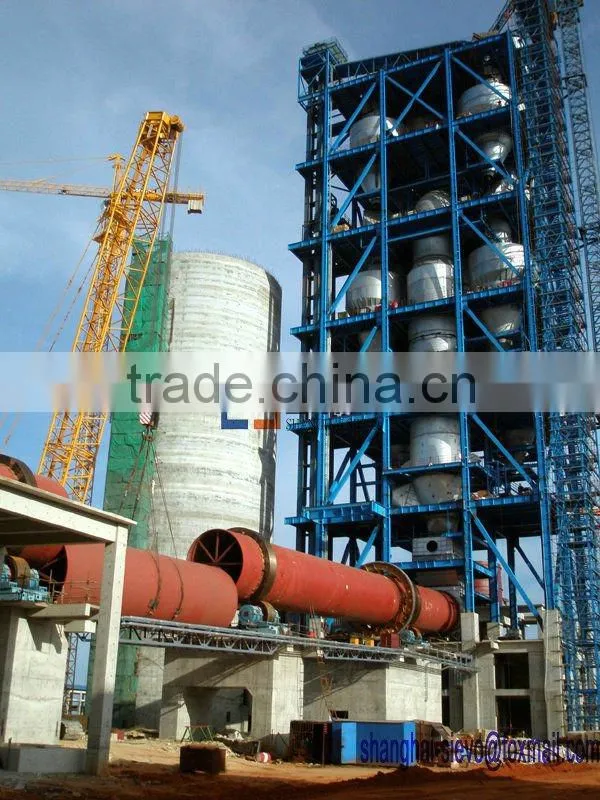

Help CenterBauxite Rotary Kiln
Related Products
Specifications
Bauxite Rotary Kiln common process measurements include:Hot Clinker Detection
Product Discharge Temperature
Product Entry
Detailed Product Description
This series of rotary kiln mainly consist of rotary bowl, supporting part, gearing, rotary hood, rotary hood and end sealer, and combustion device.
Kiln eye frame cover is made in the form of block and it is easy to install. It is of high heat-resistance, corrosion resistance, and wearing resistance. The cooling wind in the kiln hood packaged air conditioner can cool the kiln hood bowl and kiln eye frame cover evenly which prolong its use span.
Kiln hood cover adopts bulk mode which makes the air moving more stable. The kiln hood and kiln end sealing introduces the double sealing method of radial friction labyrinth and flap. With simple structure and easy maintenance, the double sealing is the most advanced sealing method inland.
Common process measurements include:
Hot Clinker Detection
Product Discharge Temperature
Product Entry Temperature
Mid-Zone Temperature
Combustion Gas Temperature
Kiln Shell Hot Spot Detection
Supplying scope:
1. shell of rotary kiln
2.tire on the shell
3. Gearwheal.
4. Pinion
5. Motor
6. Reducer
7. Control panel
rotary kiln/ Cement rotary kiln / desdain rotary kiln pabrik semen
| Model | s |
Reducer |
Electrical motor |
Type of thrust roller |
Support Qty |
otal weight (excluding refractory brick)t |
|||||
Main driving (r/min) |
Slope of the kiln shell% |
Capacity(t/h) |
model |
Total ratio |
Model |
powerkw |
Speed regulation ranger/min |
||||
Φ1.9/1.6x36 |
0.53-1.59 |
4 |
2.5-3 |
JZQ750-1 |
48.58 |
JZT-72-4 |
30 |
1200/400 |
|
3 |
53 |
Φ2.1/1.8x36 |
0.5-1.51 |
4 |
4 |
UT2-110 |
163.36 |
JZS-81 |
30/10 |
1410/470 |
.. |
3 |
75 |
Φ1.2x25 |
0.5-1.6 |
3 |
|
PM650 |
40.17 |
JZTY71-4 |
22 |
1200/120 |
.. |
3 |
34 |
Φ1.6x32 |
0.158-0.258 |
3 |
|
PM750 |
48.57 |
JZJY61-4 |
15 |
1200/120 |
.. |
3 |
46.82 |
Φ1.8x45 |
0.66-1.98 |
4 |
3.5 |
UT2-110 |
163.36 |
JZS-81 |
30/10 |
1410/470 |
.. |
3 |
80 |
Φ2.2x50 |
0.125-1.25 |
3.5 |
4 |
ZS145-11 |
157 |
YCT280-4A |
30 |
1320/132 |
.. |
3 |
130.71 |
Φ2.5x50 |
0.516-1.549 |
3.5 |
5.5 |
ZS165-7 |
99.96 |
YCT355-4A |
55 |
1320/440 |
.. |
3 |
167.5 |
Φ3x48 |
0.3309-3.309 |
3.5 |
35 |
ZL130-14 |
32.11 |
ZSN4-250-21B |
90 |
1000/100 |
.. |
3 |
237 |
Φ3.3x52 |
0.391-3.91 |
3.5 |
50 |
ZSY500-28 |
27.707 |
ZSN4-315-082 |
190 |
1000/100 |
.. |
3 |
280.8 |
Φ4x60 |
0.396-3.96 |
3.5 |
104 |
ZSY630-35.5 |
34.601 |
ZSN4-355-092 |
315 |
1000/100 |
|
3 |
487.5 |
