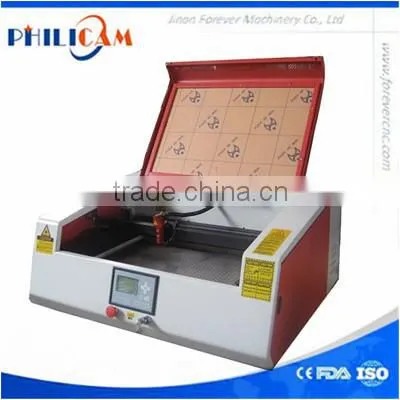

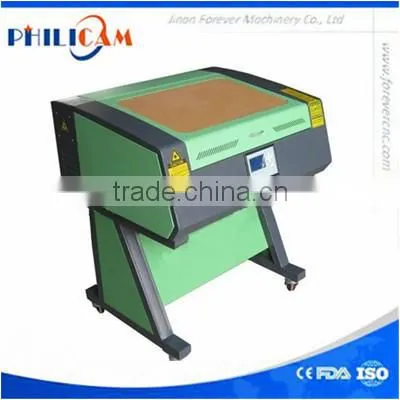

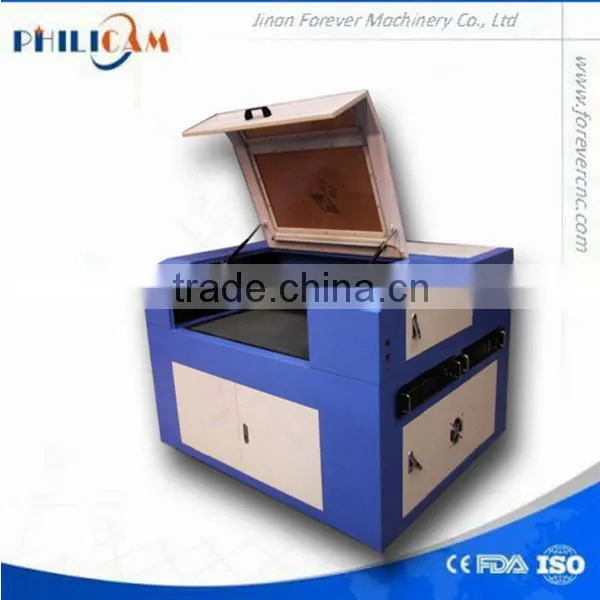

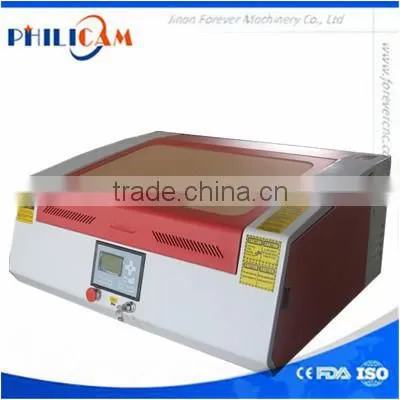

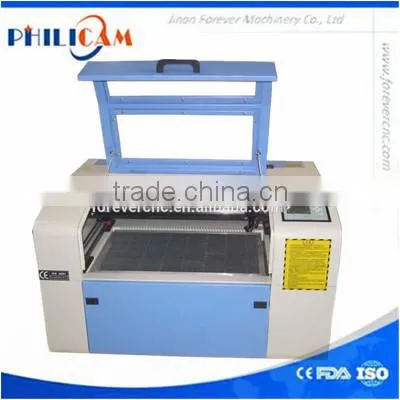

laser cutting and engraving machine/laser cutting machines 5030
Features
1.Taiwan Hiwin guide rail ensures the high precision and the long service.
2.The stepper motor guarantees cutting and engraving smooth.
3.High quality laser tube provides the strong beam and long service life.
4.Focus lens and reflect molybdenum mirrors guarantee the powerful cutting strength.
5.The water system ensures the working stability.
6.The anti-pollution design improves the stability of the whole machine greatly.
7.High compatibility, applicable for the modes like PLT, BMP, DST, DSB and PXF etc.
Parameters:
NO. |
Model |
FLDJ-5030 |
1 |
Laser medium |
CO2 |
2 |
Working area |
500*300mm |
3 |
Working table |
Knife table |
4 |
Laser power |
40W/60W |
5 |
Power Supply |
220V/50Hz, 110V/60Hz |
6 |
Min line width |
≤0.15mm |
7 |
Positon accuracy |
0.01mm |
8 |
Repetition accuracy |
0.02mm |
9 |
Cutting speed |
150mm/s |
10 |
Guide rail |
Hiwin from Taiwan |
11 |
Transmission method |
Belt Transmission |
12 |
Drive system |
Leadshine driving system and stepper motor |
13 |
Cooling system |
Water-cooling |
14 |
Control system |
DSP off-line |
15 |
Control software |
Coreldraw, Photoshop, AutoCAD, Tajima |
16 |
Graphic format support |
PLT, DXF, BMP, JPG ,AI ,ect |
17 |
Working environment |
0-45°C, |
18 |
Operating Humidity |
5-95% |
19 |
Net weight |
110kg |
20 |
Gross weight |
180kg |
Applicable materials
Wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
Applicable industries
Advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industroy.

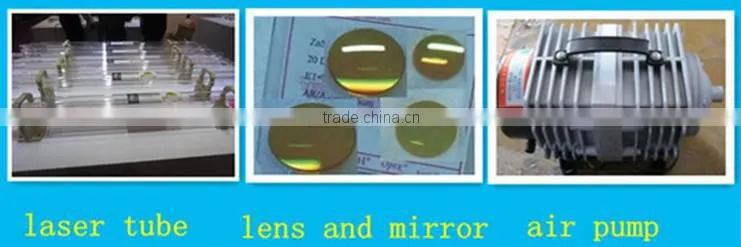

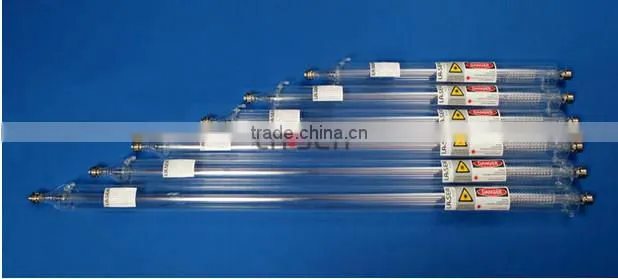

Main machine parts
Samples:
Welcome to visit our factory
Our certificate
Why philicam?
1. Philicam product is widely used in almost all the materials you can think of.
2. Philicam company is specialized in CNC Router and laser machine manufacturing and selling .
3. Philicam machine with high precision and excellent reputation is the most reliable product you can choose.
4. Philicam company has all kinds of machines in store, the delivery time is much shorter than other companies.
5. Philicam company has international technical service office and provides 24 hours online services and technical supports for customers
After sale service:
1) one year free warranty under normal use and we give maintenance for l8 months.
2) first class engineers give 24 hours service on Internet and Telephone, free instructions and problem solving.
3) Free training to make sure you master the operating of cnc router.
Payment terms:
T/T:30% T/T deposite,70% before shippment.This is the most convinent payment terms for international trade.
Packaging and shipping

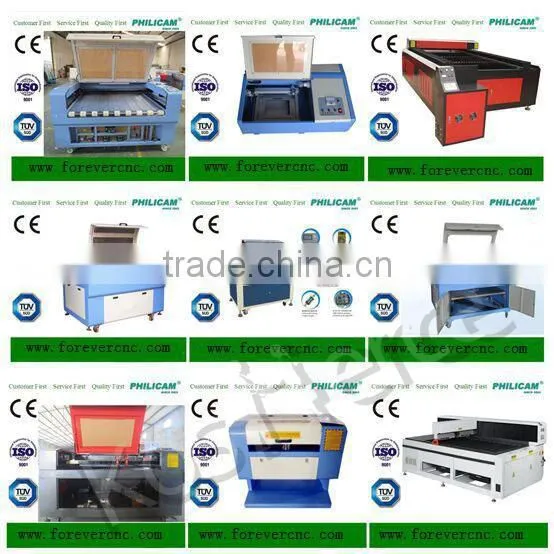

Other hot sale Product:
