1490 co2 laser cutting machine
Features
1) Imported Reflected Lens and focus lens in the Optical System Can greatly Reduce the heat loss
2) High Quality CO2 Glass Sealed Laser tube Provides Strong Stable Laser beam mode and Longer Service Life.
3) The Laser tube adopts Compulsive Water Cooling System, Water Pump Can Control the temperature Automatically,
4) High Compatibility, Applicable for the Models Like PLT,BMP,DXF,DST,etc.
5) Optional Up & down adjustable worktable can Engrave and Cut Different Height Materials
Parameters:
NO. |
Description |
Parameter |
|
1 |
Engraving area |
1400*900mm |
|
2 |
Laser power |
60W(80W/100W/150W) |
|
3 |
Engraving speed |
0-6000mm/min |
|
4 |
Cutting speed |
0-5000mm/min |
|
5 |
Power supply |
"220V/50HZ , 110V/60HZ |
|
6 |
Position accuracy |
0.01mm |
|
7 |
Repetition accuracy |
0.02mm |
|
8 |
Guide rail |
HIVIN from Taiwan |
|
9 |
Transmission method |
Belt transmission |
|
10 |
Software supported |
CorelDraw, PhotoShop, AutoCAD,TAJIMA |
|
11 |
Driving system |
Lea-shine driving system and stepper motor |
|
12 |
Weight |
160/210KG |
|
13 |
Optional part |
Partial up-down work table , USB port, auto-focus, rotary system |
|
14 |
Graphic format supported |
BMP,HPGL(PLT),JPEG,GIF,TIFF,PCS,TGA |
|
Applicable materials
Wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
Applicable industries
Advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industroy.

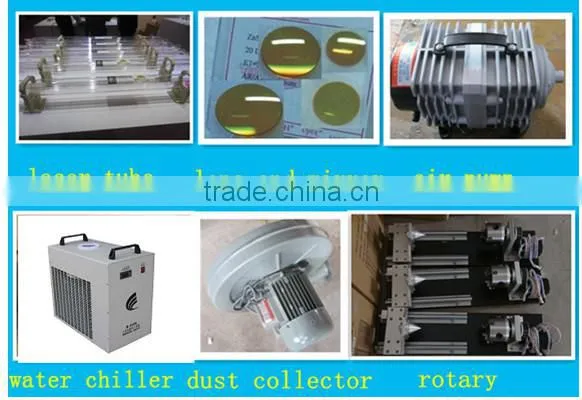

Main machine parts
Samples:
Welcome to visit our factory
Our certificate
Why philicam?
1. Philicam product is widely used in almost all the materials you can think of.
2. Philicam company is specialized in CNC Router and laser machine manufacturing and selling .
3. Philicam machine with high precision and excellent reputation is the most reliable product you can choose.
4. Philicam company has all kinds of machines in store, the delivery time is much shorter than other companies.
5. Philicam company has international technical service office and provides 24 hours online services and technical supports for customers
After sale service:
1.1.5 years quality guaranty, the machine with main parts(excluding the consumables)
shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement. 5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
Payment terms:
T/T:30% T/T deposite,70% before shippment.This is the most convinent payment terms for international trade.
Packaging and shipping
