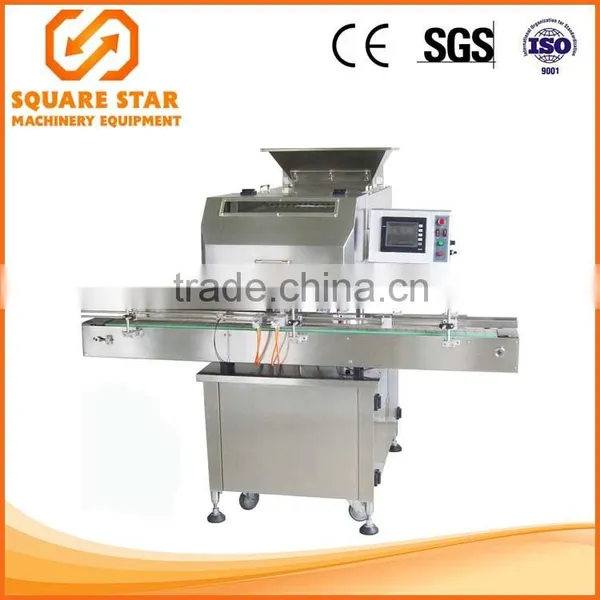

Automatic double head electronic tablet counter
Counting& Filling Speed |
6000 pieces/minutes (Max) |
Application |
electronic tablet counter |
Channel |
16 |
Diameter of bottle |
30~100mm (Customizable) |
Diameter of bottleneck |
Twice over tablet diameter or capsule length |
Height of bottle |
50~200mm (Customizable) |
Applicable objects |
0~5# hard/soft capsules, φ5~20mm tablets |
Dimensions |
1800mm×1500mm×1800 mm ( L × W × H ) |
Electrical Requirements |
1.8kW, 220/110v, 50-60HZ(Optional) |
Weight |
800kg |
Error rate |
≤1‰ |
Air supply pressure |
0.7MPa |
Working direction |
Left → Right (or Right → Left) |
l Advanced electronic counting technology
l Highly anti-dusty design
l Suitable for various capsule with different shapes
l Speeds up to 60 cpm based on 100-count bottles with vibration system
l Counter discrepancies is less than 1‰
l Operation stable and lower noise
l Bottle convey smoothly
l Touch screen Control System which is easy to control
l Simple Straight Forward Operator Controls
l Stainless Frame electronic tablet counter
We adopt electronic scaning counting device on this electronic tablet counter which is more pricise than last generation, because this generation could not only count the normal candy but also the transparent candy, that's why we call it candy filling machine. |
MAJOR COMPONENTS:
Specification |
Brand |
HMI (7″color touch screen) |
Touch screen ( HITACHI) |
Controller of HMI |
B-B |
Pix processor |
Texas Instruments |
Pix collection unit |
TOSHIBA |
ARM processor |
SAMSUNG |
Communication chip |
Max Integrated |
Relay |
OMRON |
Logic inspection system |
PHILIP |
Bottle inspection sensor |
AUTONICS |
| Power switch | MEANWELL |
| Transformer | KEWEI |
Motor |
MEISTER |
Stainless steel |
SS304 |
Steel frame |
BAO Steel |
Cylinder |
AIRTAC |
We dedicated to packaging machinery manufacturing and design for nearly 30 years. During so long time, we have extended our business to become a supplier of complete packaging line including bottle washer, unscrambler, filling and counting machine, inserting machine, labeling machine, capping machine, sealing machine, cartoning machine and so on. We believe that we possess rich experience and ability to meet a variety of requirements of you. Besides, we also provide very good after-sales service and solution of technology problem. We also provide training, on-site installation, documents support. We could make customized products based on different requirements of different customers. electronic tablet counter |
|
1. One year warranty, free charge for spare parts in warranty 2. Engineer available to service overseas electronic tablet counter 3. Good quality competitive price. ISO9001:2008 and CE certificate pill counting machine 4. You could ask for help about technical problem from our engineer through phone call orinternet any time for free. |
