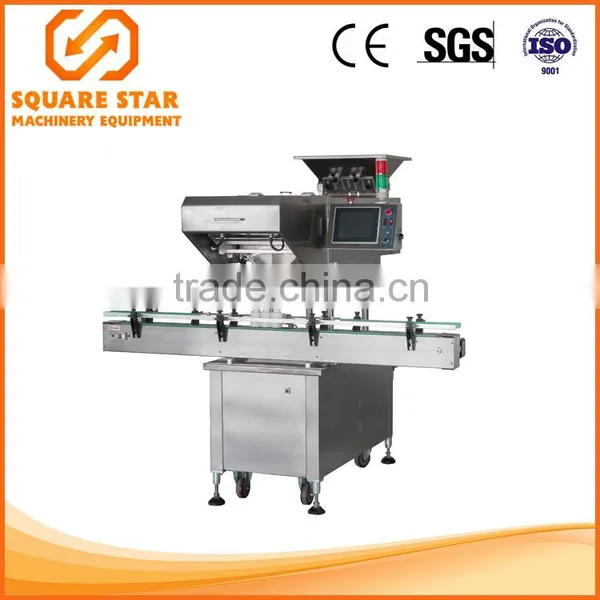

Automatic 12-channel mechanical counting and filling machine
Model |
mechanical counting and filling machine |
Counting & Filling Speed |
4500grains/min max |
Channel |
12 |
Diameter of bottle |
30-100mm (Customizable) |
Height of bottle |
50-200mm (Customizable) |
Dimensions |
1500mm×1500mm×1800 mm ( L × W × H ) |
Electrical Requirements |
1.5kW, 220/110v, 50-60HZ(Optional) |
Air pressure |
0.7Mpa |
Weight |
700kg |
Working direction |
Left → Right (or Right → Left) |
l Speeds up to 45 cpm based on 100-count bottles with vibration system
l Counter discrepancies is less than 1‰
l Operation stable and lower noise
l Bottle convey smoothly with dual-track conveyor
l full-set protecting device keep operation steady and reliable

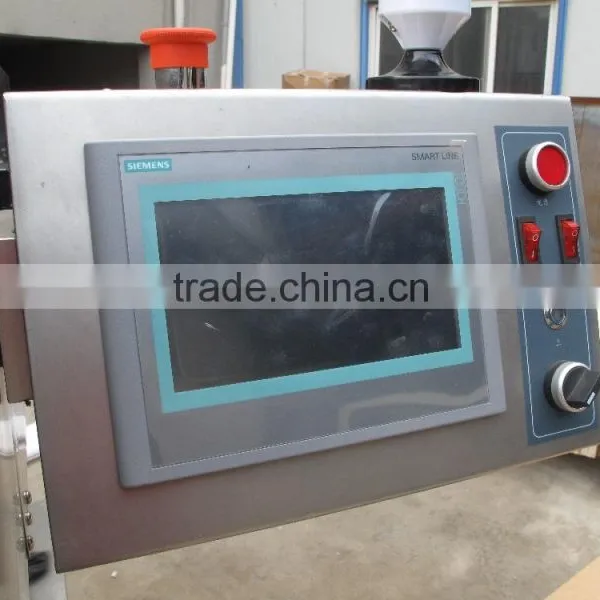

l Touch screen Control System which is easy to control
l Simple Straight Forward Operator Controls
l On-Screen trouble description which is easy to solve
l Stainless Frame mechanical counting and filling machine
This bottled mechanical counting and filling machine combines 16-channel counting heads over a dual-track conveyor on a single frame to double the throughput without doubling the floor space, achieving speeds up to 60 cpm based on 100-count bottles. The machine handles a wide variety of candies,both hard and soft candies of different shapes, sizes and properties. |
Major components:
Specification |
Brand |
HMI |
SIEMENS |
PLC |
SIEMENS |
PLC extending module |
SIEMENS |
Communication cable |
SIEMENS |
Relay |
OMRON |
Sensor |
NS |
Logic inspection system |
PHILIP |
Bottle detecting sensor |
AUTONICS |
Power switch |
MEANWELL |
Transformer |
GBL |
Motor |
MEISTER |
Stainless steel |
SS304 |
Cylinder |
AIRTAC |
|
1. One year warranty, free charge for spare parts in warranty 2. Engineer available to service overseas capsule counter counting machine 3. Good quality competitive price. ISO9001:2008 and CE certificate 4. You could ask for help about technical problem from our engineer through phone call orinternet any time for free. mechanical counting and filling machine |
