Specifications
SF320S-360S Adsob Type Single FacerDesign speed ; 180m/min
Expiry width ;1400mm-2200mm

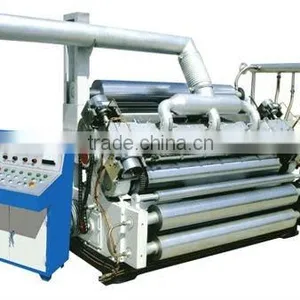

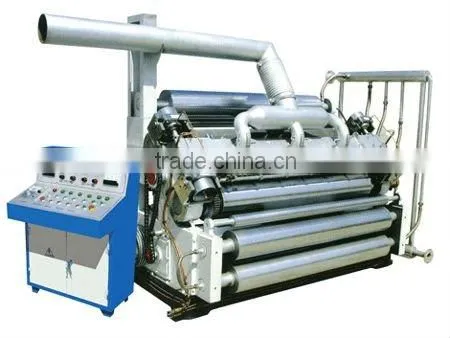

SF320S-360S Adsob Type Single Facer
Design speed ; 180m/min
Expiry width ;1400mm-2200mm
Corrugated roller ; φ320mm-φ360mm
Vacuum adsorbable style transmitting cardboard equipment,with wind control
Glue roller are designed to groups guideway slippage load-unload, conveninnt and swift.
Gimbal transmission , fission structure with unattached drive box , transmission more stable ,close style gear transmission oiliness lubricated , prolong the use life of gear .
The upper corrugating roller , pressure roller and glue roller adopt pneumatic control .
The axletree of corrugated and pressure roller adopts high temperature resistant lube.
Adopt electromotion paste insulation set ,the glue parts running separately while the main motor stopped , prevent paste from drying up . (Choise installs )
Electromotion adjusted figure show the glue quantity or manual adjust the glue quantity
The upper –lower corrugating roller are made of 48CrMo high quality alloy steel, after heat-treatment . The rigidity is HRC58-60°,the surface are whetted and plating chrome.
