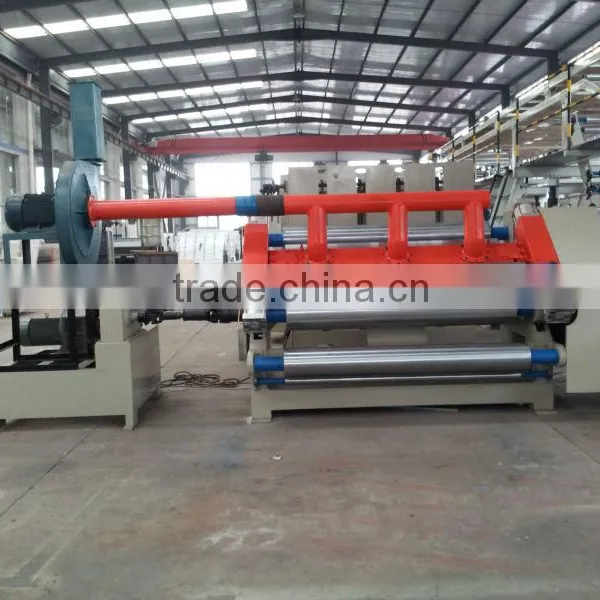

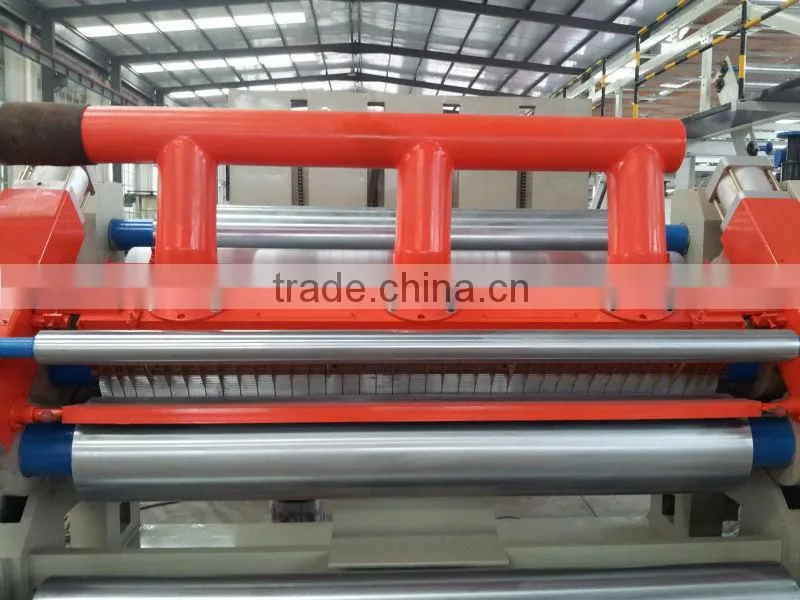

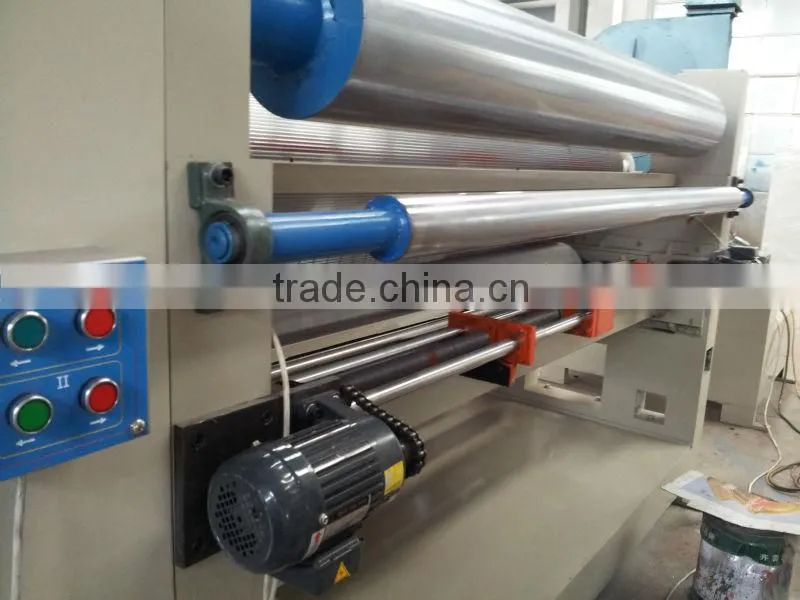

Corrugated cardboard single facer machine
Features and Characterisics:
1. Design speed: 80-180m/min
2. Effective width: 1400mm-2500mm
3. Corrugated roller diameter: 280mm-360mm
4. Vacuum suction type pulling cardboard with wind control device.
5. Glue roller and fixed roller are designed to groups guide way slippage load-unload,
convenient and swift.
6. Used Gimbal drive with independent gear box, transmission more stable, close style
gear transmission oiliness lubricated, prolong the use life of gear.
7. The upper corrugating roller, pressure roller and glue roller adopt pneumatic control.
8. Flute roller and pressure roller adopt high temperature resistant lubrication grease.
9. Manual adjust the gluing quantity or electric adjustment.
10.The upper-lower corrugating roller are made of 48CrMo high quality alloy steel, after
heat-treatment. The rigidity is HRC58-60, the surface are whetted and plating
chrome.
Technology parameters:
Effective width |
1400-2500mm |
Flute roller diameter |
2730mm,295mm,320mm, 360mm |
Working Speed |
30-150m/min |
Application medium paper |
80gsm-170gsm |
Heating |
Steam, thermal oil choose |
Power |
About20- 60kw depend on heating way |
