Specifications

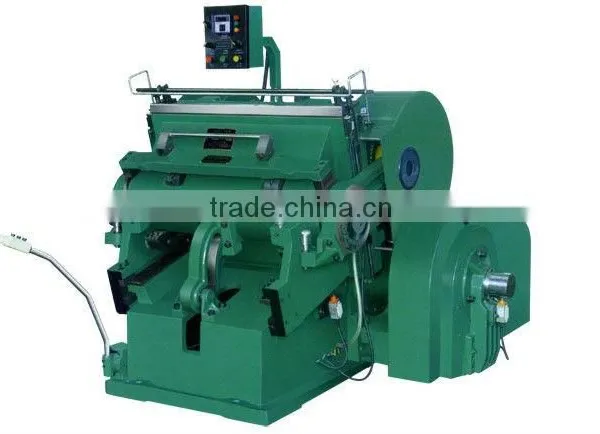

Pressing Slitting Scorer1,photoelectricity telepathy control
2, subgke oakte electromagnetic clutch
pressing slitting scorer:
Main Feature:
l Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-frietion and shake reducing.
l Flywheel is with big moment of force and large pressure.
l High strength due to one piece casting by using top-ranking material for machine body.
l Single plate electromagnetic clutch is sensitive and reliable.
l With functions of single continuous and opening dwell operation, dwell range is adjustable.
l Operating position is reasonably arranged, moving-bed can be opened to its optimum.
l Safety system is reliable.
Specifications:
Model |
Inner chase size |
Speed |
Max. embossing length |
Motor power |
Weight |
Dimension |
PYP-1100 |
1100*800mm |
20±2 |
<32mm |
4.0kw |
4500kg |
2030*1870*1800mm |
PYP-1200 |
1200*820mm |
15±2 |
<35mm |
5.5kw |
4800kg |
1920*2140*1920mm |
PYP-1300 |
1300*920mm |
15±2 |
<45mm |
5.5kw |
6000kg |
2000*2140*2000mm |
PYP-1400 |
1400*1000mm |
15±2 |
<45mm |
7.5kw |
6800kg |
2010*2400*1930mm |
PYP-1500 |
1500*1050mm |
14±2 |
<45mm |
7.5kw |
7500kg |
2010*2400*1930mm |
PYP-1600 |
1600*1250mm |
16±2 |
<50mm |
11kw |
11000kg |
2170*2560*2230mm |
PYP-1800 |
1800*1300mm |
16±2 |
<62mm |
15kw |
13500kg |
2240*2800*2130mm |
