Specifications
carton box die cutting and creasing machine1,Frequency control motor
2, air clutch, pneumatic locking mechanism.

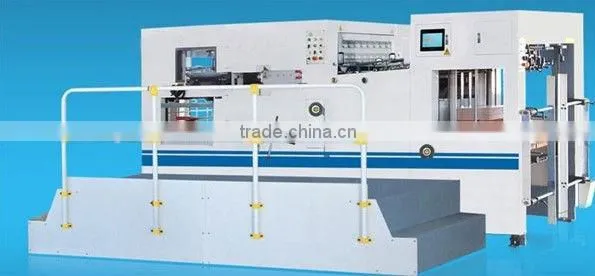

Semi-automatic Carton Box Die-cutting and Creasing Machine
Performance of the machine:
MY semi-automatic die-cutting and creasing machine is a special equipment applying to die-cutting of advanced colored boxes made of paper. The machine combines several advantages over many other die-cutters both at home and abroad. Gripper bars with high intensity are applicable to all kinds of cardboard. Paper-board and corrugated paper. Frontal, back and side registration mechanism ensures great precision of die-cutting. Other parts are adopted such as intermittent mechanism with high precision. Air clutch, pneumatic locking mechanism, programmable controller and man-machine interface. the interface can display various digital information of machine such as working speed, amount of paper processed, total running time. Etc. It is easy to eliminate troubles according to the display of trouble shooting Transducer is adopted to control the main motor in achieving step-less speed variation, The machine has a lot of sensors and safe-ensuring devices to guarantee the safety to operator and of environment, Frontal and back pressure can be adjusted separately, It is convenient to stop the machine by hand, It can also realize die cutting without clipper margin.
Specification:
MY1300 |
MY1500 |
MY1620 |
|
Max. Paper Size |
1300*930mm |
1500*1030mm |
1600*1200mm |
Min. Paper Size |
550*500mm |
600*500mm |
700*680mm |
Max. Die-cutting Size |
1280*920mm |
1420*1020mm |
1600*1100mm |
Max. Die-cutting Pressure |
250T |
250T |
250T |
Paper Processed |
Cardboard>8mm |
Cardboard>8mm |
Cardboard>8mm |
Max. Speed |
4000sheet/h |
4000sheet/h |
4000sheet/h |
Max. Feeding Pile Height |
1400mm(above the level) |
1400mm(above the level) |
1400mm(above the level) |
Max. Delivery Pile Height |
1200mm |
1200mm |
1200mm |
Total Power |
13.5KW |
13.5KW |
13.5KW |
Weight |
1.25T |
13.5T |
13.5T |
Dimensions |
4000*2250*2250mm |
4200*2300*2250mm |
4300*2400*2250mm |
