Specifications
Carton box die-cutting machine1. High quality anvill cover, 5000000 times use life
2. Good quality steel cylinder

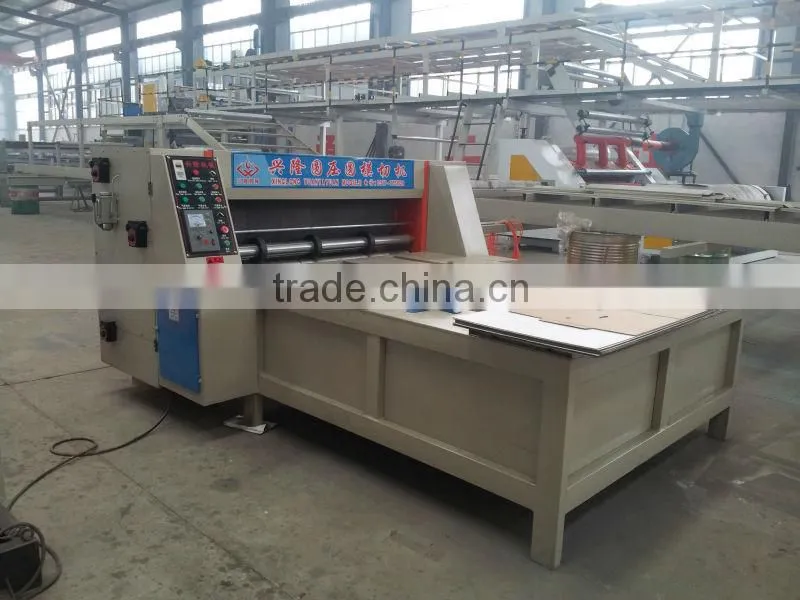

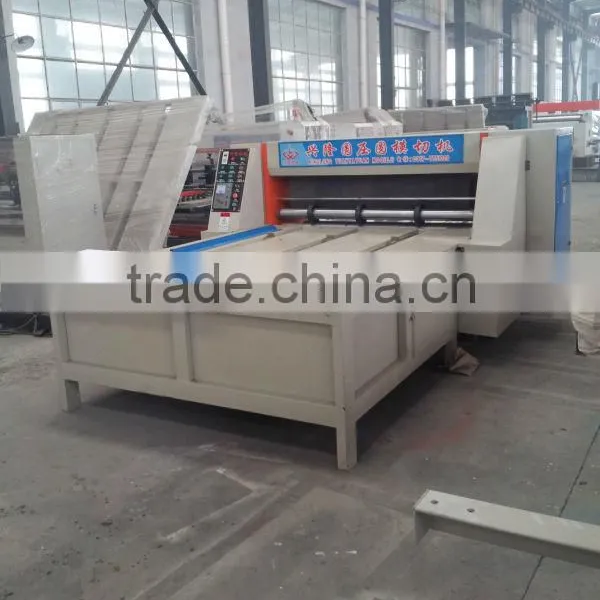

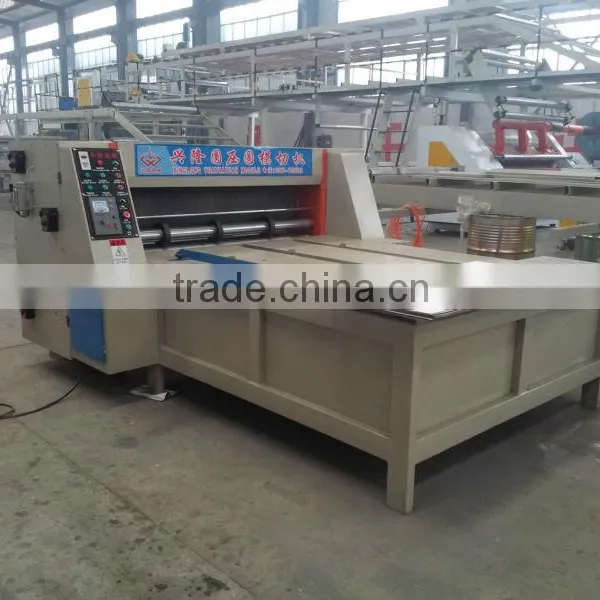

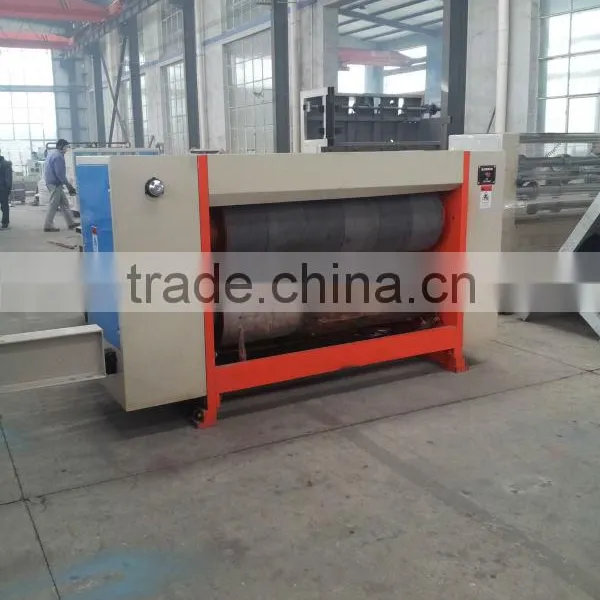

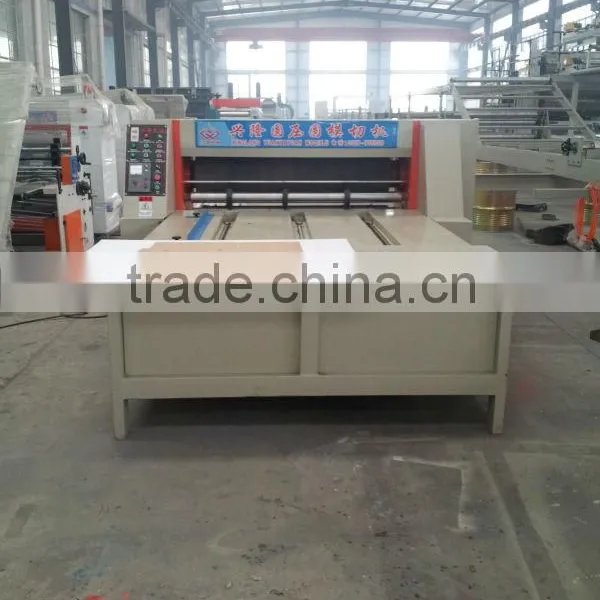

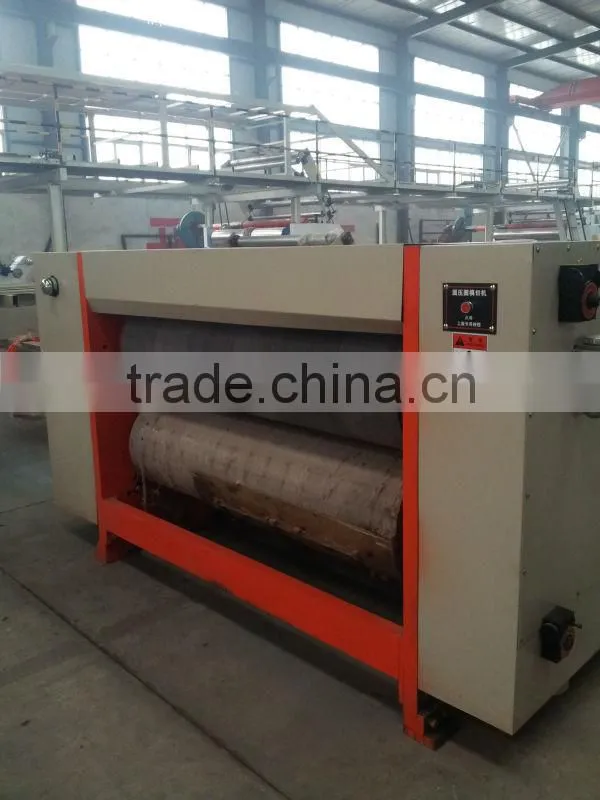

MQJ 2000 Carton box die-cutting machine
Use and Characteristics:
This machine adopts chain feeding system and double roller rotary type. It can complete all procedures of slitting, creasing, corner cutting and hit special hole at one time. The functions of die-cutting E flute corrugated cardboard, automatic compensation of glue roller line speed and rubber automatic repair. Die roller adopt 360 degree electric adjustment. It is advantage of high precision, easy to operate, long service life and low cost.
Main Technology Parameters:
Model |
Roller diameter |
Max over sheet size |
Min over sheet size |
Speed |
Motor |
MQJ-1500 |
φ410 |
1600*1350mm |
400*500mm |
40-60pcs/min |
3.0kw |
MQJ-1750 |
1850*1350mm |
400*500mm |
40-60pcs/min |
3.0kw |
|
MQJ-2000 |
2100*1350mm |
400*500mm |
40-60pcs/min |
4.0kw |
|
MQJ-2250 |
2350*1350mm |
400*500mm |
40-60pcs/min |
5.5kw |
|
MQJ-2500 |
2600*1350mm |
400*500mm |
40-60pcs/min |
5.5kw |
|
MQJ-1500 |
φ487 |
1600*1500mm |
400*500mm |
40-60pcs/min |
5.5kw |
MQJ-1750 |
1850*1500mm |
400*500mm |
40-60pcs/min |
5.5kw |
|
MQJ-2000 |
2100*1500mm |
400*500mm |
40-60pcs/min |
5.5kw |
|
MQJ-2250 |
2350*1500mm |
400*500mm |
40-60pcs/min |
5.5kw |
|
MQJ-2500 |
2600*1500mm |
400*500mm |
40-60pcs/min |
5.5kw |
