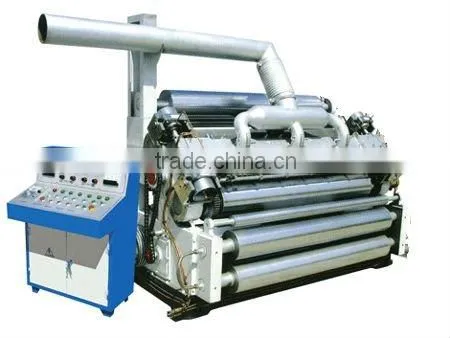

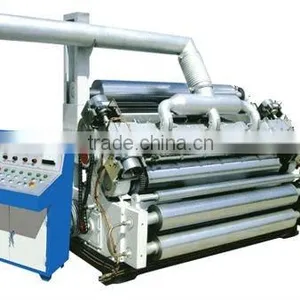

Help CenterAbsorb Type Single Facer,carton Machine
Related Products
-
High Speed Plexo Printing Slotting Die Cutter, Carton MachineUS$ 5,000 - 100,000MOQ: 1 Set -
Printing Die Cutting,carton Box MachineUS$ 30,000 - 100,000MOQ: 1 Set
-
Printing Slotting, Carton MachineUS$ 6,850 - 22,000MOQ: 1 Set
-
Stiching Machine,carton MachineNegotiableMOQ: 1 Set
-
Rotary Die Cutting ,carton MachineUS$ 30,000 - 100,000MOQ: 1 Set
Specifications
absorb type single facer,carton machinedesign speed: 180m/min
expiry width: 1400-2200mm

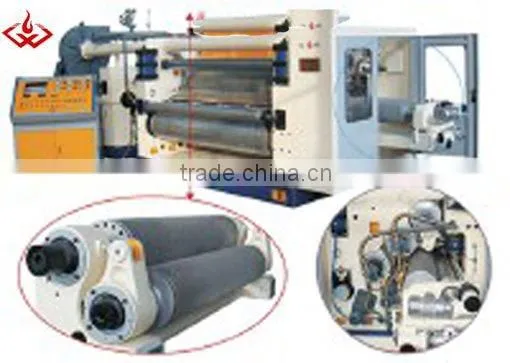

absorb type single facer,carton machine
1 design speed: 180m/min
2 expiry width: 1400-2200mm
3 corrugated roller: 320mm-360mm
4 vacuum absorbable style transmitting cardboard equipment, with wind control
5 glue roller and upper roller and designed to groups guide way slippage load-unload, convenient and swift.
6 gimbals transmission, fission structure with unattached drive box, transmission more stable, close style gear transmission oiliness lubricated, prolong the use life of gear.
7 the upper corrugated and pressure roller and glue roller adopt pneumatic control
8 the axletree of corrugated and pressure roller adopts high temperature resistant lube.
9 adopt elect motion paste insulation set, the glue parts running separately while the main motor stopped, prevent paste from drying up
10 electro motion adjusted figure show the glue quantity or manual adjust the glue quantity.
11 the upper-lower corrugated roller are made of 48CrMo high quality alloy steed, after heat-treatment, the rigidity is HRC58-60 degree, the surface are whetted and plating chrome.
Send Inquiry to This Supplier
