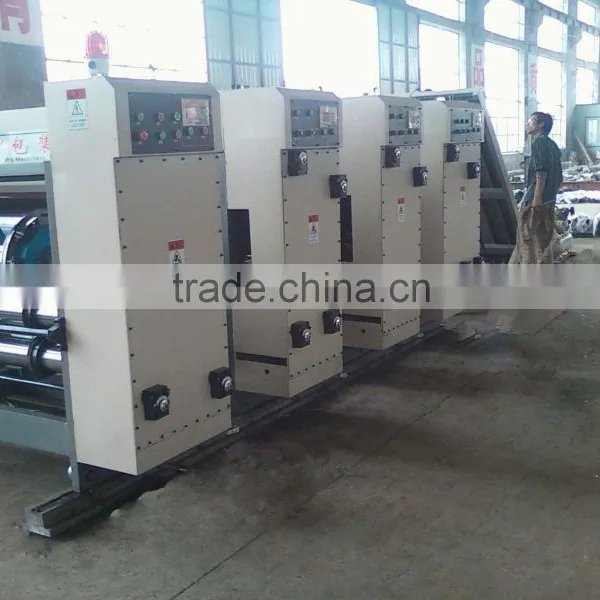

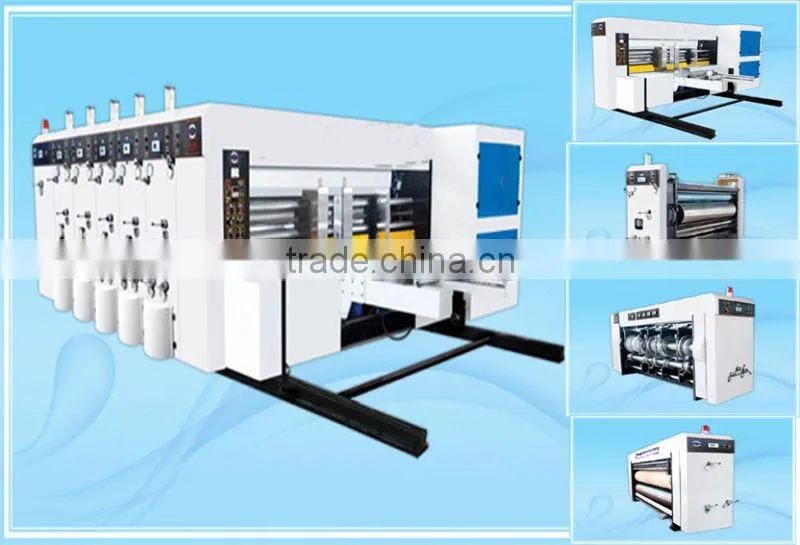

High Speed Plexo Printing Slotting Die Cutter, Carton Machine

Name: High Speed Plexo Printing Slotting Die Cutter, Carton Machine
Brand: XINGLONG
SKU: 104883459
Availability: InStock

US$ 5,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Other, corrugated cardboard

Packaging Type:

Cartons

Dongguang Xinglong Packaging Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, corrugated cardboard

Packaging Type Cartons

Packaging Material Plastic

Automatic Grade Semi-Automatic

Driven Type Electric

Power 30 KW

Place of Origin Hebei, China

Brand Name XINGLONG

Model Number XL

Specifications

carton machine
the size between 1500-2800mm
speed:90-120m/min

carton machine

1 The electric appliance of a whole machine adopt the product of SCHNEIDER made in FRANCE.

2 Adopting helical gear driving, the gears are made from high frequency quenching and polishing-gear.

3 All the axles of roller must be chrome-plating in order to increase the hardness.

4 The gears adopt shower type circular lubricating.

5 This machine adopts PLC touching screen control, adopts frequency Converter, rightly and truly.

6 Automatically changes return zero and correct the plate position.

7 Adopting the mould unit designing, the multi-color printing unit can be combined and linked in any way.

8 The side baffle plate of the feeding department and the grooving department are adjust by electrically

9 Delivers the paper way to be possible to choose the predestined affinity to deliver the paper system.

Parameters name	unit	Parameters
Max. paper coverage area	Mm	2600*1500
Effective printing area	Mm	2300*1500
Min finish size	Mm	500*400
Thickness of printing plank	Mm	6
Max speed	Piece/min	120
Economy speed	Piece/min	90
Frequency conversion power of main motor	Kw	15-30
Topping precision	Mm	0.75
Slotting precision	mm	1.5
