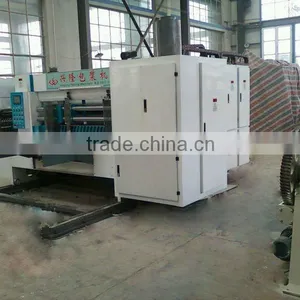

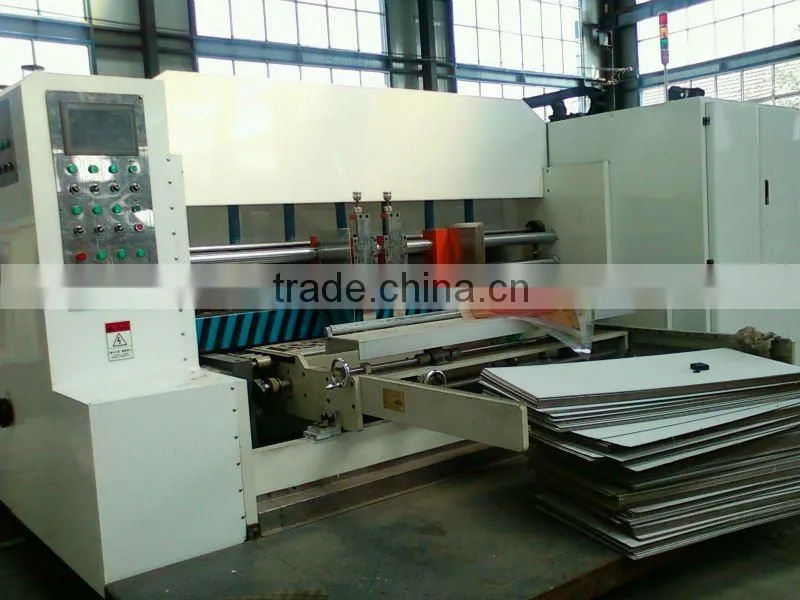

Help CenterSYKM420 Automatic Carton Printing Machine
Related Products
-
Paper Cutting MachineUS$ 4,700 - 7,800MOQ: 1 Set -
Multifunction Fruit Carton Box Making MachineUS$ 10,000 - 50,000MOQ: 1 Set
-
Corrugated Carton Gluing MachineUS$ 5,000 - 10,000MOQ: 1 Set
-
XLD Double Head Carton Stitching MachineUS$ 30,000 - 50,000MOQ: 1 Set
-
2 Pieces Stitching MachineUS$ 27,000 - 32,000MOQ: 1 Piece
Specifications
1. Multi-function: Printing, Slotting(die-cutting), stack2. Computer with PLC control
3. 1-4colors for choose
Automatic printing machine
Features:
Designed according to high request and reliable function, humanization operation that can setting, revision, implement, changing and memories in short time, and display data.
All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
Drive gears adopt high quality steel with heat treatment with grinded.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
Engineer oil automatic balance device, keep the oil level equal in each unit.
Phase adopts electric digital adjusting with “automatic zero return” and “ memories” function(options: PLC control touch screen)
Feeding type use lead edge or kick feeding.
Main motor is VFD.
Technology Parameter
Item |
Unit |
Parameters |
Max paper coverage area |
mm |
2200×1450 |
Effective printing are |
mm |
2000×1450 |
Min finish size |
mm |
500×400 |
Thickness of printing plank |
mm |
6 |
Max speed |
pieces/min |
120 |
Economy speed |
pieces/min |
90 |
Frequency conversion power of main motor |
kw |
15-30 |
Topping precision(four colors) |
mm |
±0.75 |
Slotting precision |
mm |
±1.5 |
