hot selling CE approved Bamboo coconut shell charcoal furnace wood sawdust carbonization stove 008615039052280

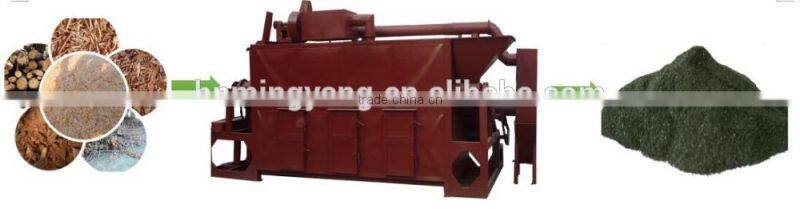

introduction of the hot selling CE approved wood sawdust carbonization stove on sale
- The hot selling CE approved wood sawdust carbonization stove on sale is an ideal equipment that carbonize the crushed and dried sawdust,rice husk And various small material into charcoal powder in one time.
- This machine has the characteristics of small power on consumption,high yield, simple operation, easy Carbonizing operation and soon.
- It's an ideal equipment for the Activated carbon plant,mosquito-repellent incense plant,fireworks plant,carbon black plant and soon that take the charcoal powder as the main raw material

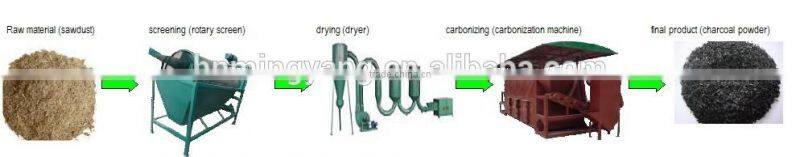

working process of the hot selling CE approved wood sawdust carbonization stove on sale
1) the raw material of the hot selling CE approved wood sawdust carbonization stove on sale should be sawdust, rice husk, or any other kind of granular or dust raw material, or the other wood waste or forest waste raw material after crushing
2. if the raw material can not meet the sawust or granular shape (1-5mm), we should
1.crush the raw material into 1-5mm sawdust-like powder,if the raw material is sawdust, use a rotary sieve to sieve out the impurities.
2.if the raw material is wet, the moisture content is higher than 12%, you should dry it first
3.use a crew conveyor to put the raw material into the charring stove
4.start fire, then the whole charring process begine.The raw material will be carbonize four times in the machine. Through the charring tube equiped with the machine.
Advanced features of the hot selling CE approved wood sawdust carbonization stove on sale
1)continue working
once you start work there is no need add more firewood, because this machine can used the heat of the sawdust to carbonize themselves. and one working shift coluld be7 days non stop, it will increase the output of charcoal powder
2)high carbonzation rate and low lose rate of raw material
this machine adopted international advanced technology to increase the carbonization ratio from 80%to 99%
3)environmental friendly, so it is popular in the European market.
1)Smoking purification system are used for purify the smoking (can not burning) and filter the wood tar. The smoking through the purification system will become water vapor, and it will not pollute the air.
2. When during the process of carbonizing, there will generate combustible gas, and the gas will return to the furnace through tube for purifying, after purification , the combustible smoking can be flow into the the heating room of the main furnace for heating the machine again,)
4)energy saving ,
because of the special design ( continuously working &combustible gas cyclic utilization) the energy consumption is much lower than the other products, ( eg:3ton final product just need 15kg firewood and 130 kw electricity) it will save the cost and get more profit.
5)operation easy and safe
(if the raw material is sufficient enough, the machine can works in condition, and the machine can working all day, except the heating at the beginning, and the other time just need to observe the machine, no need more operation)
6)no need more time for cooling, increasing the carbonization capacity and shorten the carbonization time (install with the cooling pipes , and the cooling pipes is make the outlet temperature of charcoal powder not easy to burn when meet the oxygen , and it also makes the final products have a good appearance and easy to package)
7)high efficiency ,energysaving,easy to operate and maintain ,low investment and high revenue,environment protection and so on.It is an ideal equipment to carbonize.

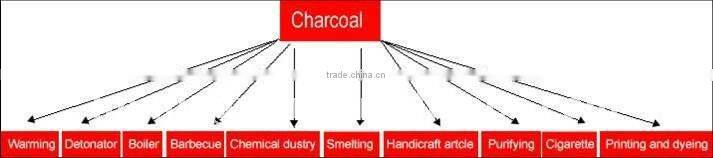

usage of the final product of hot selling CE approved wood sawdust carbonization stove on sale
The finished product can be used for firwork making ,mosquito-repellent incense industry and charcoal briquette extruding,chemical ,medical and so on

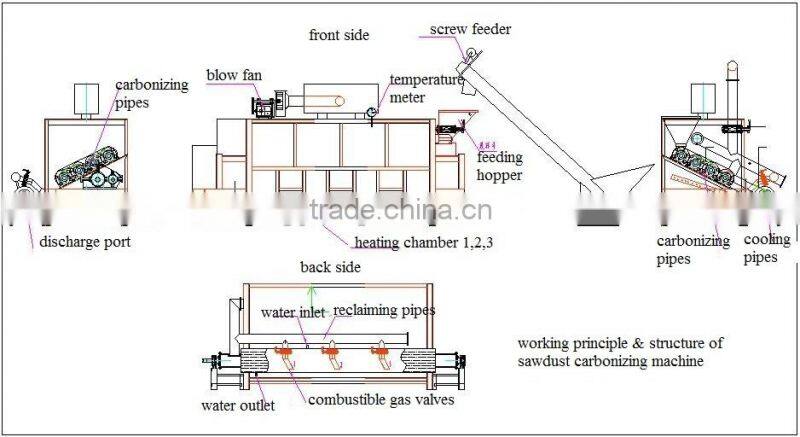

How the hot selling CE approved wood sawdust carbonization stove working on sale?

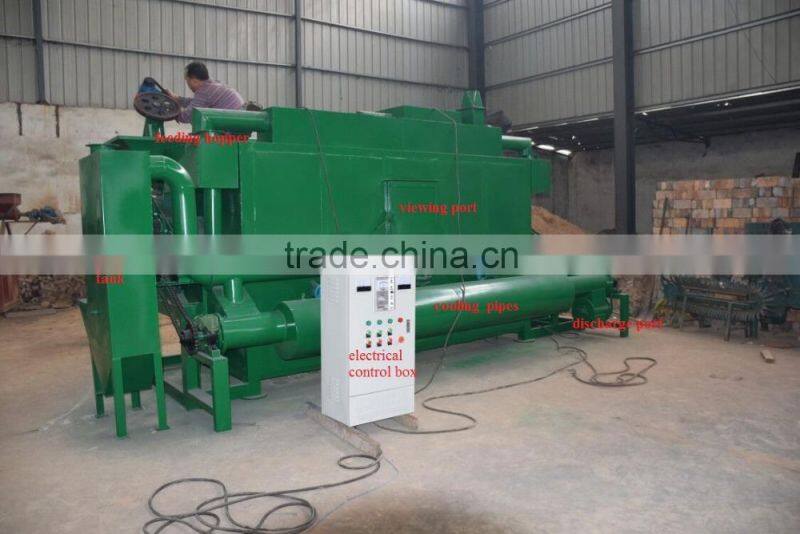

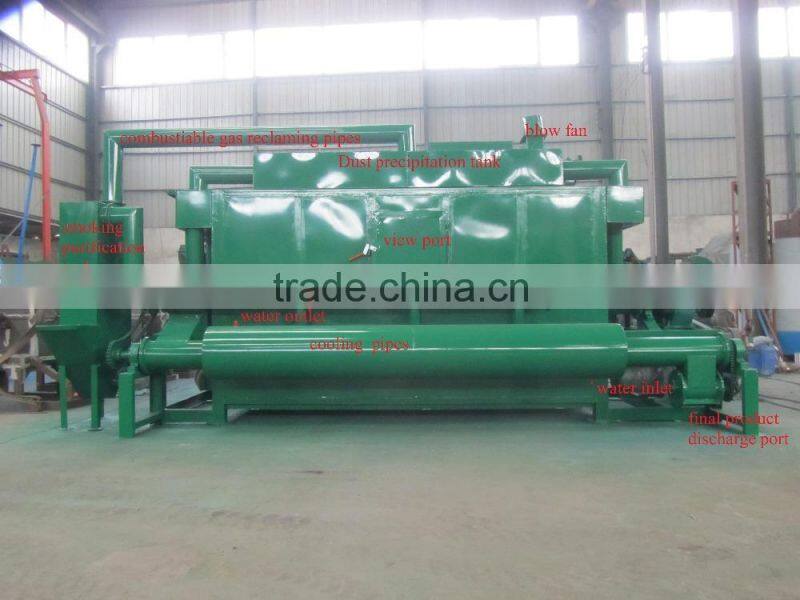

the machine include the heating parts, carboniztaion parts, cooling parts, purification parts and the controlling parts,
1. heating ( There are three heating chamber, we just need to use the firewood or gas to heating the machine, and when the temperature reach to 250-300degree, just stop to heating and feed the raw material

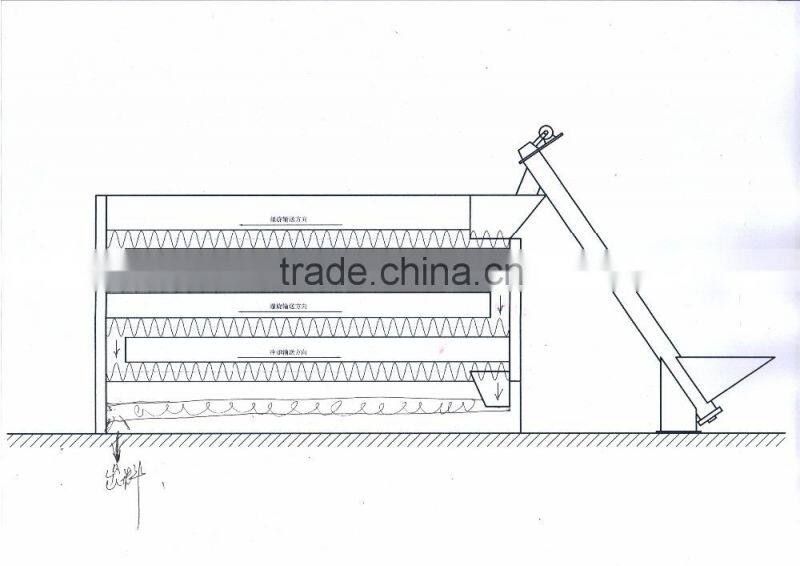

2. carbonizing ( there are include four carbonizing pipes , we use the screw conveyor to feed the raw material to the pipes1, and the sawdust will be delivery to the tubes under the electrical motor,when the sawdust reach to the end of the pipes1, it will be turn around to the pipes2, when it arrive to the end of pipes 2, and it will turn around topipes3, and so on, after four tubes carbonization, the sawdust will become the charcoal powder
3. in the machine there are two combustible gas reclaiming pipes, and during the carbonization process, the sawdust will be self-ignite in the oxygen-fee condition, and it will produce the inflammable gas,and the gas pipes will be collect the gas and send them to the bottom of the machine for heating the machine again, to finished the carbonization
4. in the back side of the machine, there is one pipes for cooling the hot charcoal powder, so after these pipes ,we will get the finished product ,charcoal powder
5. about the purification system, This system is consisting of purification tank and the exhaust-heated cycle pipe. And Smoking purification tank are used for purify the smoking (can not Burning) and filter the wood tar. The smoking through the purification tank will Become water vapor, and it will not pollute the air.
parameter of the hot selling CE approved wood sawdust carbonization stove on sale
power :7.22kw ( main machine: 5.5kw, fan 1.5kw+0.22kw)
capacity :150-180kg/h
Package dimension:4800*1800*3200mm
Net/Gross weight:11.2/11.5ton
temperature of inner stove:480-600 degree
Raw material requirement :sawdust, Size: 3-5mm, moisture:8-12%
energy consumption:35-40kg firewood per shift
Electricity consumption:7.22kw/h
motor style :5.5kw Moment speed regulating motor
Used for: Firecracker production, active carbon processing, certain soil improvements by scientific research unit.
Rotary speed :1450r/min
Gongyi Xiaoyi Mingyang Machinery Plant is
- one of the largest and earliest manufacturers of the charcoal making machine, biomass briquette machine and wood pellet production line in China with 25 years experience
- Covered an area of 10000 square meters, currently has 118 employees, divided to 7 department
- Designed and produced 6 production line, more than 150 kinds of machines, awarded 10 patents in China
- Products are widely accepted in both domestic and world market ,more than 150 countries
- The company enlarged for building one experimental Center of high-tech automtaic production equipment to meet the market requirement
- Professional after-sales service team to be able to handle client issues in a timely manner.
IF you need help, please feel free to contact with me
Sales Manager: Sara yang
Mobile: 008615039052280
Skype: sara666818
whatsapp 008615039052280
wechat : 008615039052280
