ZP-55 Type high speed Rotary Tablet Press Machine
Application:
This machine is one kind of double side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet.This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.
Feature:
1. High speed with large quantity punches, double press rollers, suitable for mass production.
2. Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
3. Perfect tableting system, twice compression forming, reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference.
4. Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.
5. Automatic oil&grease central lubrication system, ensure the lubrication of pressure rollers, toolings and tracks, extending the working life of the machine.
6. Special oil proof, dust proof and noise proof design.
7. The machine can stop automatically in case of overpressure to protect the punch pins from being damaged.
8. PLC and touch screen control, automatic and easy control.
Technology parameters:
| Model | GZP35 | GZP43 | GZP51A | GZP55 | |
| Number of Stations | 35 | 43 | 51 | 55 | |
| Tooling Standard | D | B | ZP | BB | |
| Max Main Pressure (KN) | 100 | ||||
| Max Pre-pressure (KN) | 20 | ||||
| Max Tablet Diameter (mm) | round tablet | 25 | 18 | 13 | 13 |
| irregular tablet | 25 | 19 | 16 | 16 | |
| Max Filling Depth (mm) | 20 | 18 | 15 | 15 | |
| Max Tablet Thickness (mm) | 8 | 7 | 6 | 6 | |
| Max Turret Speed (r/min) | 50 | ||||
| Max Production Capacity (pcs/h) | 210000 | 258000 | 306000 | 330000 | |
| Motor Power (kw) | 7.5 | ||||
| Overall Size (mm) | 1370×1170×1800 | ||||
| Machine Weight (kg) | 3200 | ||||

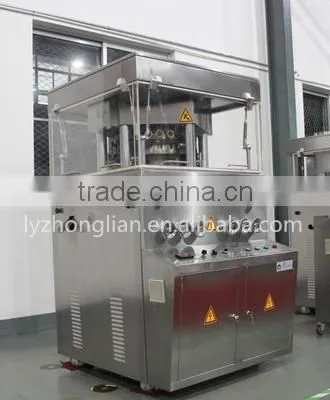

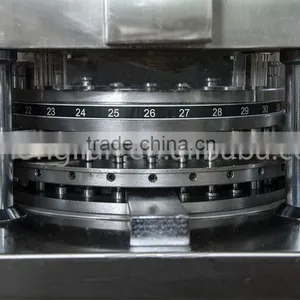

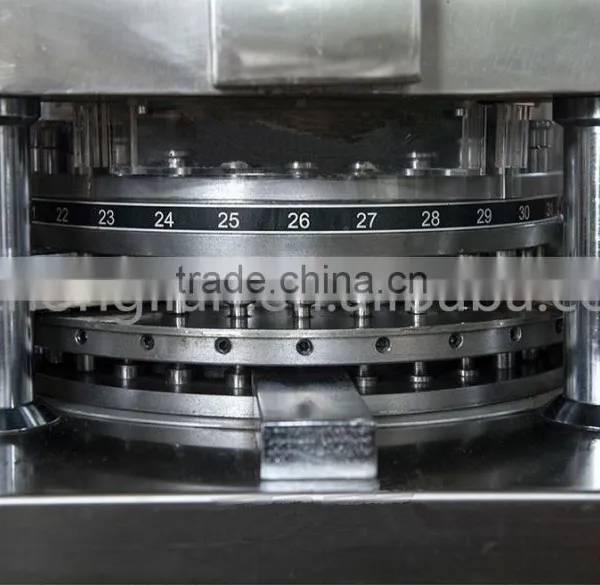

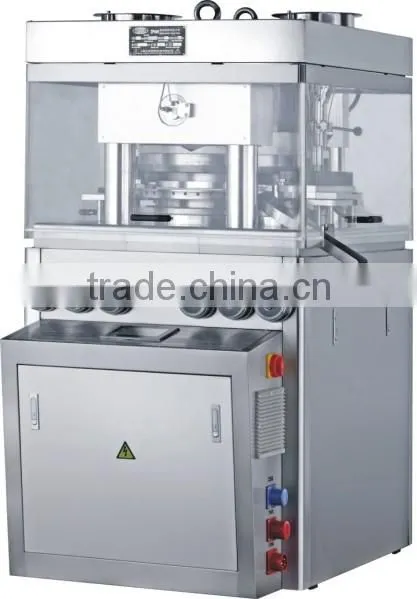

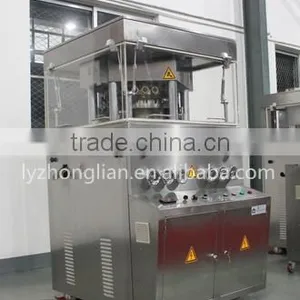

Pictures:
ZP-55 Rotary Tablet Press Machine Packaging: Wooden Package
ZP-55 Rotary Tablet Press Machine Shipping: By Sea, By Air and By Train
The Service of ZP-55 Rotary Tablet Press Machine:
Technical suppport and Training support
Engineers available to service machinery overseas
Liaoyang Zhonglian Pharmaceutical Machinery Co., Ltd is situated in Liaoyang City of Liaoning Province, earliest engaged in the production of pharmaceutical machinery in China.Zhonglian is specially engaged
in the production of pharmaceutical machinery, centrifugal equipment and packaging machine, owns many
years of experience in professional production, enjoys advanced technology and high quality equipment,
developed and manufactured multiple pharmaceutical machine, multiple packaging machine and multiple hi-tech centrifugal equipment, including centrifugal separator machine, mixing machine, dryer machine, coating machine, powder packaging machine, granular packaging machine, blister packaging machine. disc centrifuge,
tubular centrifuge, tripod series centrifuge and flat plate centrifuge, which are widely applied in pharmaceutical,
chemical, food, smelting and other industries. Our company is supported and well received by a wide range of users with reliable quality and excellent after-sales service.
