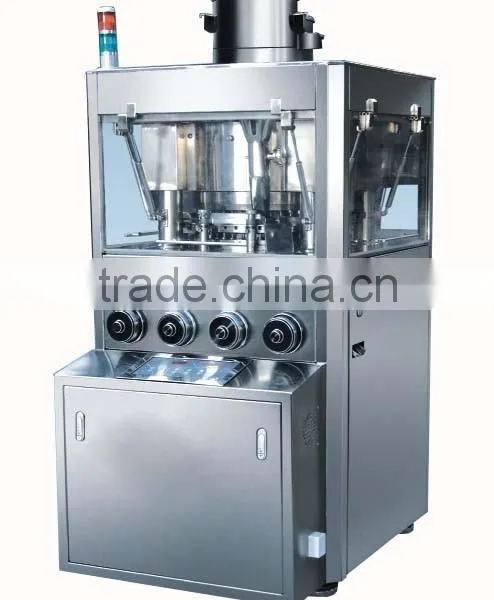

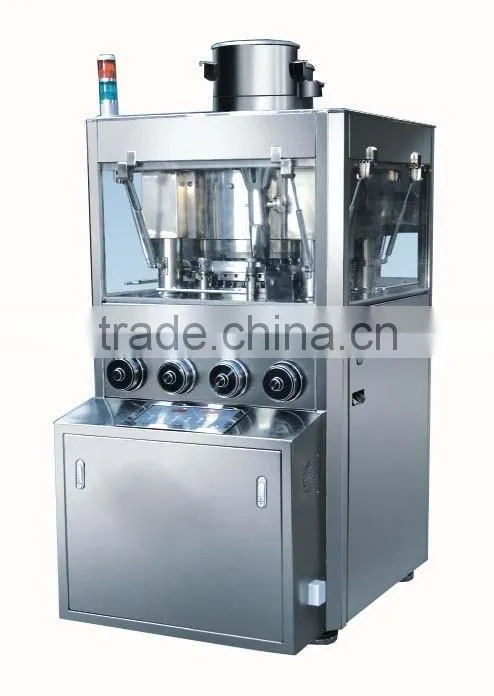

ZP45 Die High Speed Rotary Tablet Press
Application:
ZP45 Die High Speed Rotary Tablet Press is a one between low and fast speeds in the features of higher production and pressure,being widely applied in the trades of pharmacy,chemicals,food process and electronics,pressing the granular materials to various round or special-shaped tablets in the industries of pharmacy,food process,chemicals and electronics.
Features:
1.It is of higher production and maximum up to 150,000-180,000 tablets an hour.
2.It is in accordance with GMP Requirements.The peripheral casing and tablet-pressing chamber table are of stainless steel and the turntable,through a special treatment, is nonpoisonous,glossy and wear-proof.
3.It is of more power,pressure and stable in operation,being able to press a material difficult to form a certain shape.
4.It is equipped with a forced feeder to ensure the material to fast enter the tablet-pressing part.
5.The applied frequency-conversion speed regulation in the way of easy operation and safety/accuracy.
6.The central lubricating system supplies enough lubrication to the lubricated points.
Technical parameters:
Dies(Pairs) |
45 |
Press force max.(KN) |
100 |
Pressed diameter max.(mm) |
13 |
Filled depth max.(mm) |
17 |
Tablet thickness max.(mm) |
8 |
Turntable rpm(r/min) |
4~36 |
Production max.( tablets/h) |
150,000~180,000 |
Motor power(Kw) |
5.5 |
Weight(KG) |
1800 |
Dimensions(L×W×H)mm |
1100×940×1800 |
